Installation Procedure

  1. Install the I/P assembly (3) to the vehicle.

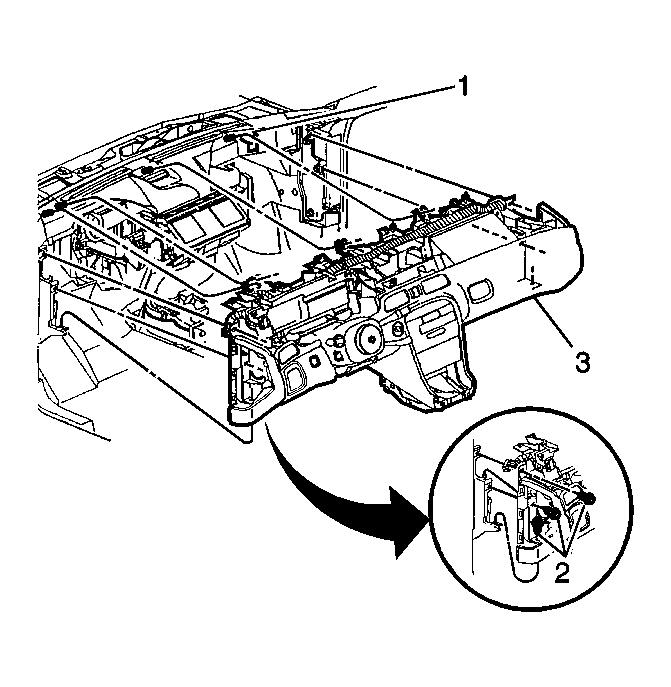

    2. Fig 1: Exploded View of I/P Assembly & I/P Carrier to Hinge Pillar Bolts
    GM105542Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the I/P assembly to hinge pillar bolts (2).

    Tighten:  Tighten the I/P carrier bolts (2) to 25 N.m (18 lb ft).

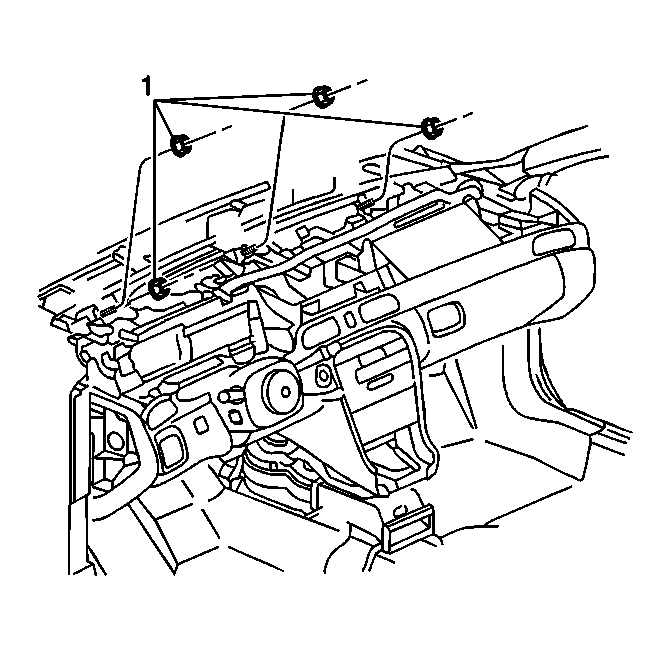

    3. Fig 2: View of I/P Carrier to Cowl Nuts
    GM105540Courtesy of GENERAL MOTORS CORP.
  3. Install the I/P carrier to cowl nuts (1).

    Tighten:  Tighten the I/P carrier to cowl nuts (1) to 25 N.m (18 lb ft).

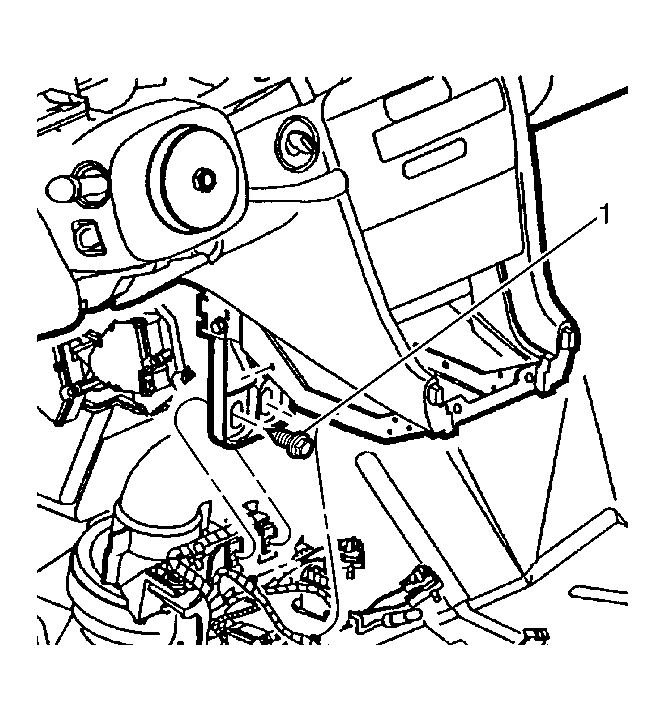

    4. Fig 3: View of I/P Extension Bolts
    GM105531Courtesy of GENERAL MOTORS CORP.
  4. Install the I/P extension bolts (1).

    Tighten:  Tighten the I/P extension bolts (1) to 25 N.m (18 lb ft).

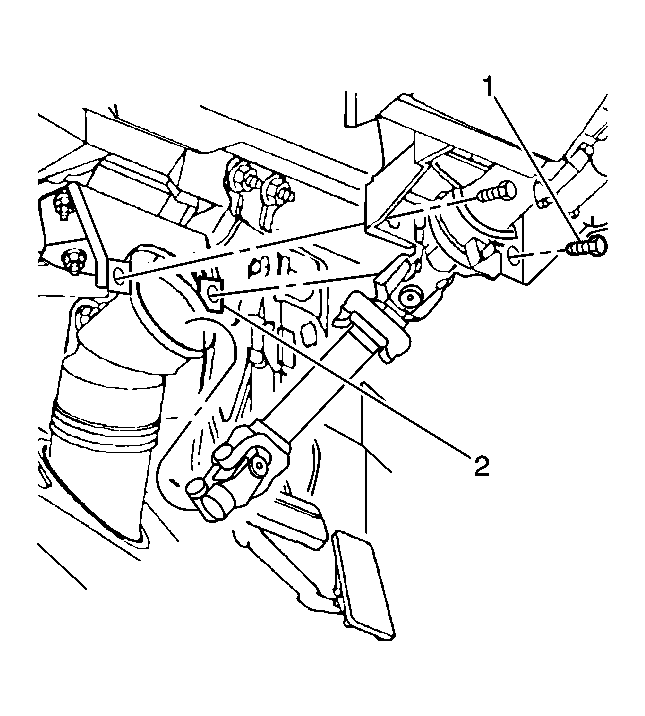

    5. Fig 4: View of Steering Column Support Bolts
    GM105533Courtesy of GENERAL MOTORS CORP.
  5. Install the steering column support bolts (1). Refer to Steering Column Replacement in Steering Wheel and Column.
  6. Install the steering shaft to the steering column. Refer to Intermediate Steering Shaft Replacement in Steering Wheel and Column.
    7. Fig 5: Identifying J 42640
    GM333146Courtesy of GENERAL MOTORS CORP.
  7. Remove the J 42640  from the steering column. See Special Tools and Equipment .
    8. Fig 6: Identifying Steering Column Harness Connector
    GM748492Courtesy of GENERAL MOTORS CORP.
  8. Connect the steering column main harness electrical connector (1).
    9. Fig 7: Identifying Tilt & Telescoping Module Electrical Connector
    GM748494Courtesy of GENERAL MOTORS CORP.
  9. Connect the tilt and telescoping module electrical connector (1), if equipped.
    10. Fig 8: Identifying Body Harness Connection & Audio Antenna Connection
    GM751048Courtesy of GENERAL MOTORS CORP.
  10. Connect the body harness electrical connector (1) and the audio antenna connection (2).
    11. Fig 9: View of Park Brake Pedal Assembly
    GM658942Courtesy of GENERAL MOTORS CORP.
  11. For RHD, Install the park brake cable to the park brake pedal assembly. Refer to Park Brake Cable Replacement - Front (RHD) in Park Brake.
    12. Fig 10: View of I/P Electrical Connectors
    GM105537Courtesy of GENERAL MOTORS CORP.
  12. Connect the I/P to body electrical connectors (1) at top outside corners of I/P.
  13. Install the defroster grille. Refer to Defroster Grille Replacement .
  14. Install the I/P upper trim pad. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper .
  15. Install the drivers knee bolster bracket. Refer to Knee Bolster Replacement .
  16. Install the floor console. Refer to Console Replacement (w/o UV8)  or Console Replacement (w/ UV8) .
  17. Install the left and right I/P outer trim cover. Refer to Instrument Panel (I/P) Outer Trim Cover Replacement .
  18. Enable the SIR. Refer to SIR Disabling and Enabling Zone 3 and SIR Disabling and Enabling Zone 5 in SIR.
