Removal Procedure

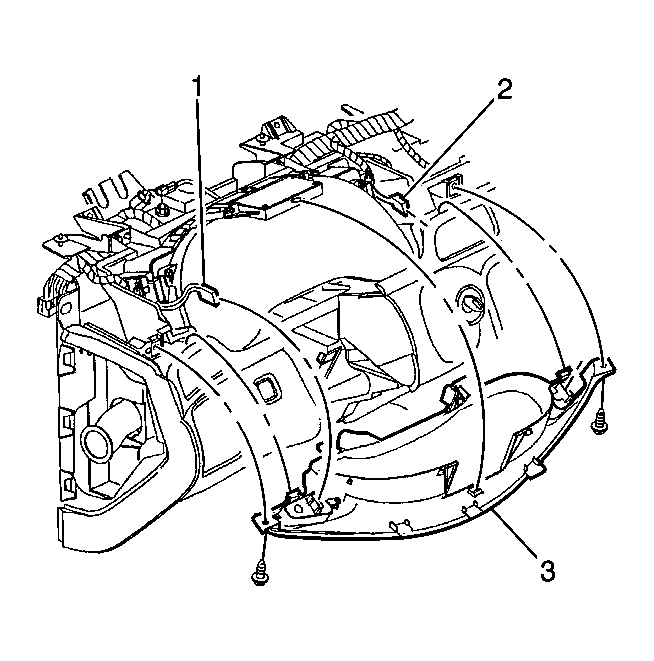

    Fig 1: Identifying Left & Right DIC Switch Electrical Connectors & IP Cluster Trim
    GM105548Courtesy of GENERAL MOTORS CORP.
    CAUTION: Refer to SIR Caution in Cautions and Notices.
  1. Remove the instrument cluster trim panel (3). Refer to Trim Panel Replacement - Instrument Panel (I/P) Cluster .
  2. Disconnect the left and the right driver information center switch electrical connectors (1,2).
  3. Remove the fasteners from the switch being serviced.
