Installation Procedure

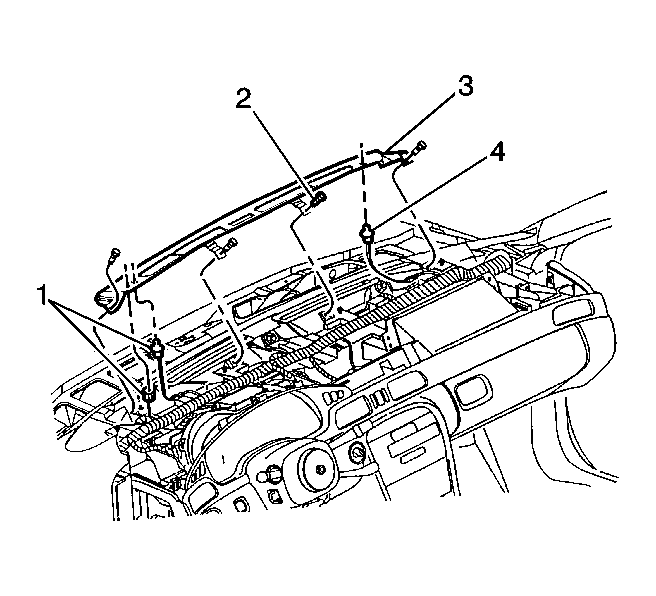

    Fig 1: View of Defroster Grille
    GM105551Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connectors and install the sunload sensors to the defroster grille. Refer to Sunload and Twilight Sentinel Sensor Replacement .
  2. Align the defroster grille (3) with the I/P carrier.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the defroster grille fasteners (2).

    Tighten:  Tighten the defroster grille fasteners to 2 N.m (18 lb in).

  4. Install the I/P upper trim panel. Refer to Trim Pad Replacement - Instrument Panel (I/P) Upper .
  5. Enable the SIR. Refer to SIR Disabling and Enabling Zone 3 and SIR Disabling and Enabling Zone 5 in SIR.
