Installation Procedure

    CAUTION: Ensure that the front hook of the console trim panel is hooked to the HVAC cover. Failure to engage the hook could result in personal injury or vehicle damage caused by panel interference with the accelerator pedal.
    Fig 1: Identifying Trim Panel Front Attachment to the Peg
    GM888648Courtesy of GENERAL MOTORS CORP.
  1. Engage the left console trim panel front attachment by engaging the trim panel front attachment to the peg (1) on the rear blower motor housing.

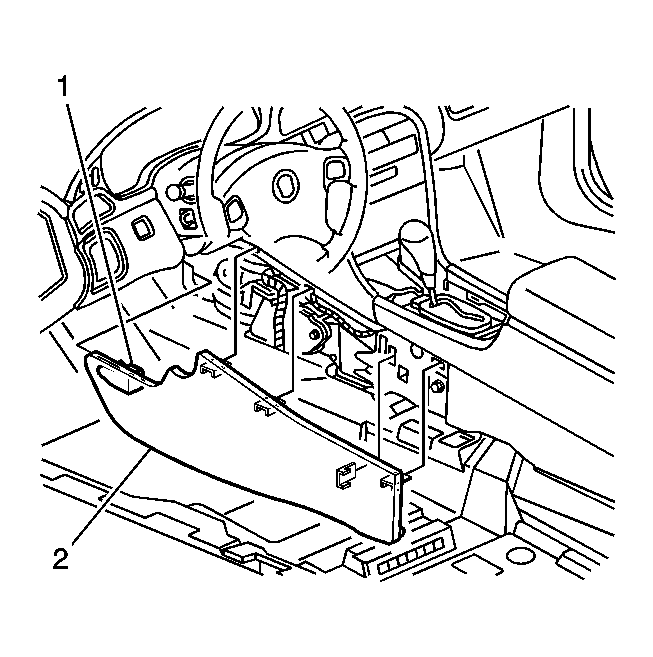

    2. Fig 2: View of Left Console Trim Panel
    GM888647Courtesy of GENERAL MOTORS CORP.
  2. Align the console trim panel retainers to the console.
  3. Push firmly on the trim panel (2) in order to engage the rear retainers.
