Installation Procedure

    Fig 1: View Of Docking Station Electrical Connector & Coaxial Cable
    GM820710Courtesy of GENERAL MOTORS CORP.
    NOTE: When removing or installing the center console, do not allow the metal brackets to scrape the seats and damage the material.
  1. Partially install the floor console.
  2. Lift up the rear of the floor console to access the cellular phone connections.
  3. Connect the cellular phone electrical connector (1).
  4. Connect the cellular phone coaxial cable (2).

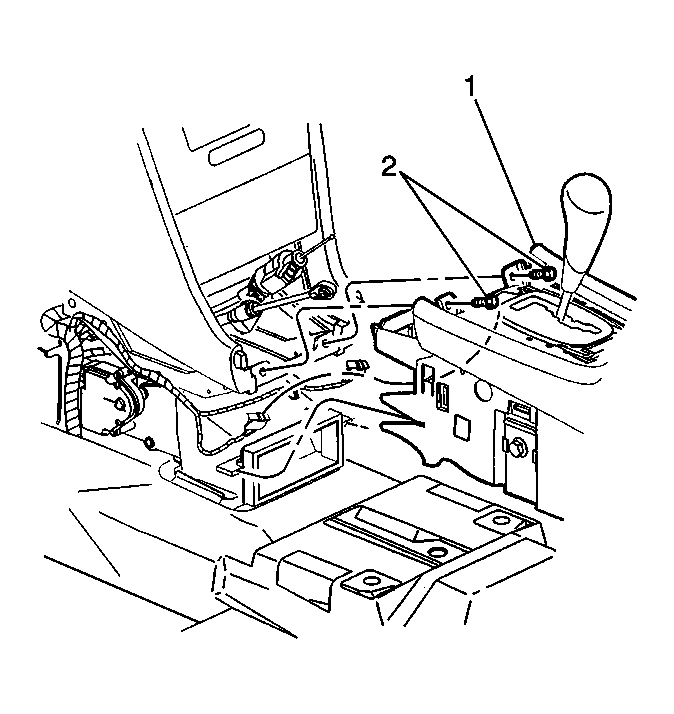

    5. Fig 2: Identifying Console to Lower Instrument Panel Fasteners
    GM105563Courtesy of GENERAL MOTORS CORP.
  5. Connect the floor console electrical connectors.
  6. Lift up on the rear of the floor console (1) and slide the console forward in order to align the front edges of the floor console with the lower I/P.

    Place the rear of the floor console onto the rear studs.

    7. NOTE: Refer to Fastener Notice in Cautions and Notices.
  7. Install the screws (2) through the floor console (1) to lower I/P.

    Tighten:  Tighten the screws (2) to 2 N.m (18 lb in).

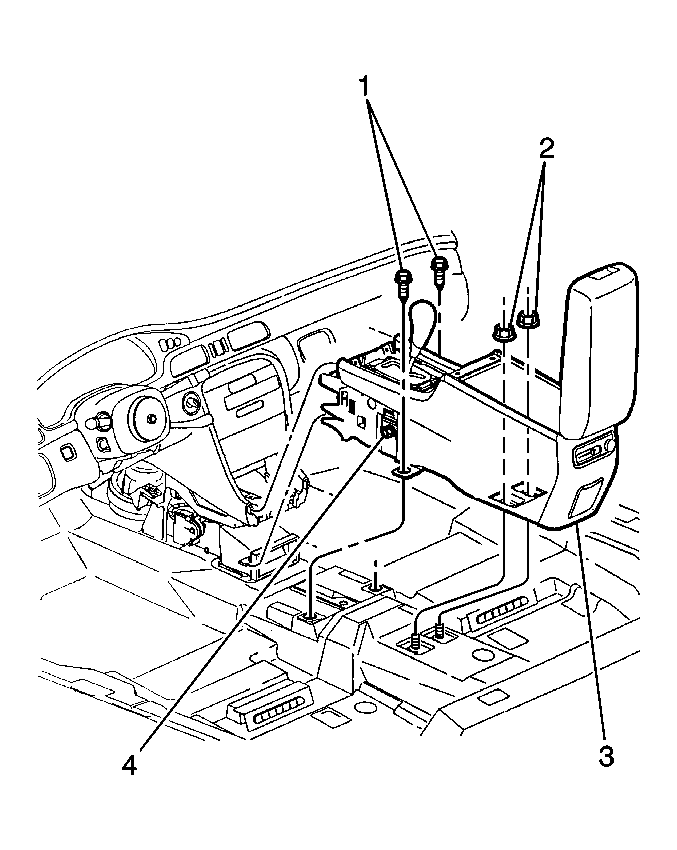

    8. Fig 3: View of Metal Bracket Arms to Floor Fasteners & Console Rear to Floor Pan Nuts
    GM105564Courtesy of GENERAL MOTORS CORP.
  8. Install the nuts (2) to the studs.

    Tighten:  Tighten the nuts (2) to 10 N.m (89 lb in).

  9. Install the bolts (1).

    Tighten:  Tighten the bolts (1) to 10 N.m (89 lb in).

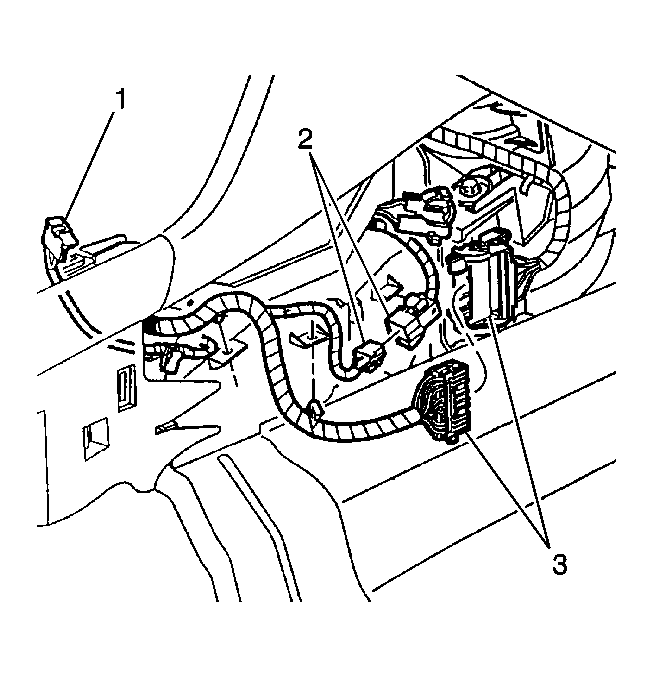

    10. Fig 4: Identifying Center Console Electrical Connectors
    GM105560Courtesy of GENERAL MOTORS CORP.
  10. Connect the electrical connectors (1,2,3) on both sides of the console.
    11. Fig 5: View of Storage Bin Floor Cover
    GM105557Courtesy of GENERAL MOTORS CORP.
  11. Install the cover (1) to the floor of the storage bin.
  12. Install the park lock cable to the shifter. Refer to Park Lock Cable Replacement (LHD) or Park Lock Cable Replacement (RHD) in Automatic Transaxle-4T80-E.
  13. Install the shift cable. Refer to Automatic Transmission Range Selector Cable Replacement in Automatic Transaxle-4T80-E.
  14. Install the left console trim panel. Refer to Console Trim Panel Replacement - Left .
  15. Install the right console trim panel. Refer to Console Trim Panel Replacement - Right .
  16. Install the console trim plate. Refer to Trim Plate Replacement - Console .
  17. Install the storage bins or the CD changer as needed. Refer to Console Storage Bin Replacement  or Remote CD Changer Replacement in Entertainment.
  18. Enable the SIR. Refer to SIR Disabling and Enabling Zone 7 and SIR Disabling and Enabling Zone 9 in SIR.
