Installation Procedure

    Fig 1: View of Insulator
    GM105526Courtesy of GENERAL MOTORS CORP.
  1. Slide the insulator (2) over the top of the emergency brake bracket (1).

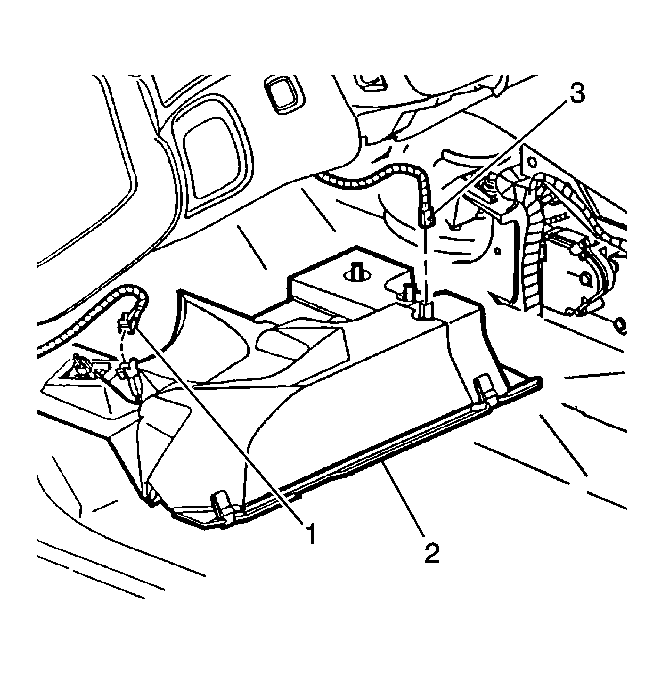

    2. Fig 2: View of Insulator Electrical Connectors
    GM105529Courtesy of GENERAL MOTORS CORP.
  2. Reconnect the electrical connectors (1,3).

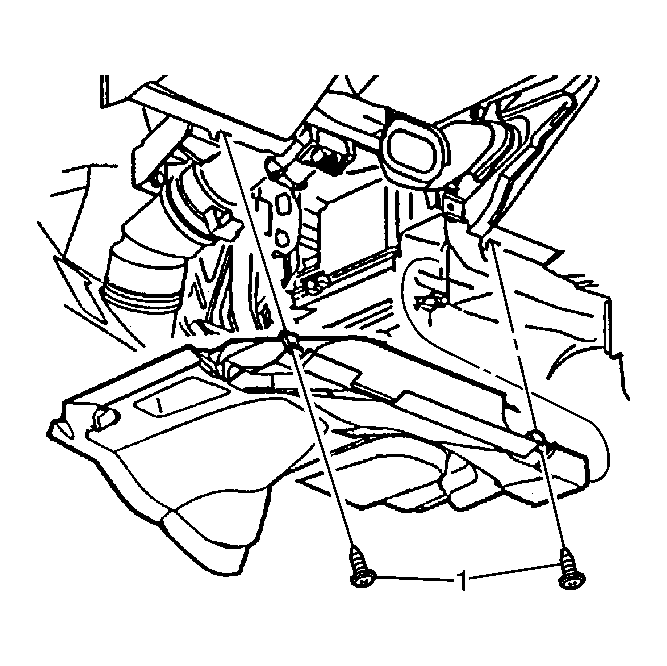

    3. Fig 3: Identifying Insulator Fasteners
    GM105527Courtesy of GENERAL MOTORS CORP.
  3. Set the forward edge of the insulator onto the shelf of the carpeting at the front of the vehicle.
  4. Align the insulator with the floor duct at the HVAC module.
  5. Align the snap tab fasteners with the lower IP and push the insulator upward in order to engage the fasteners.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the insulator fasteners (1) into lower IP.

    Tighten:  Tighten the fasteners to 2 N.m (18 lb in).
