Instrument Panel, Gages, and Console Component Views

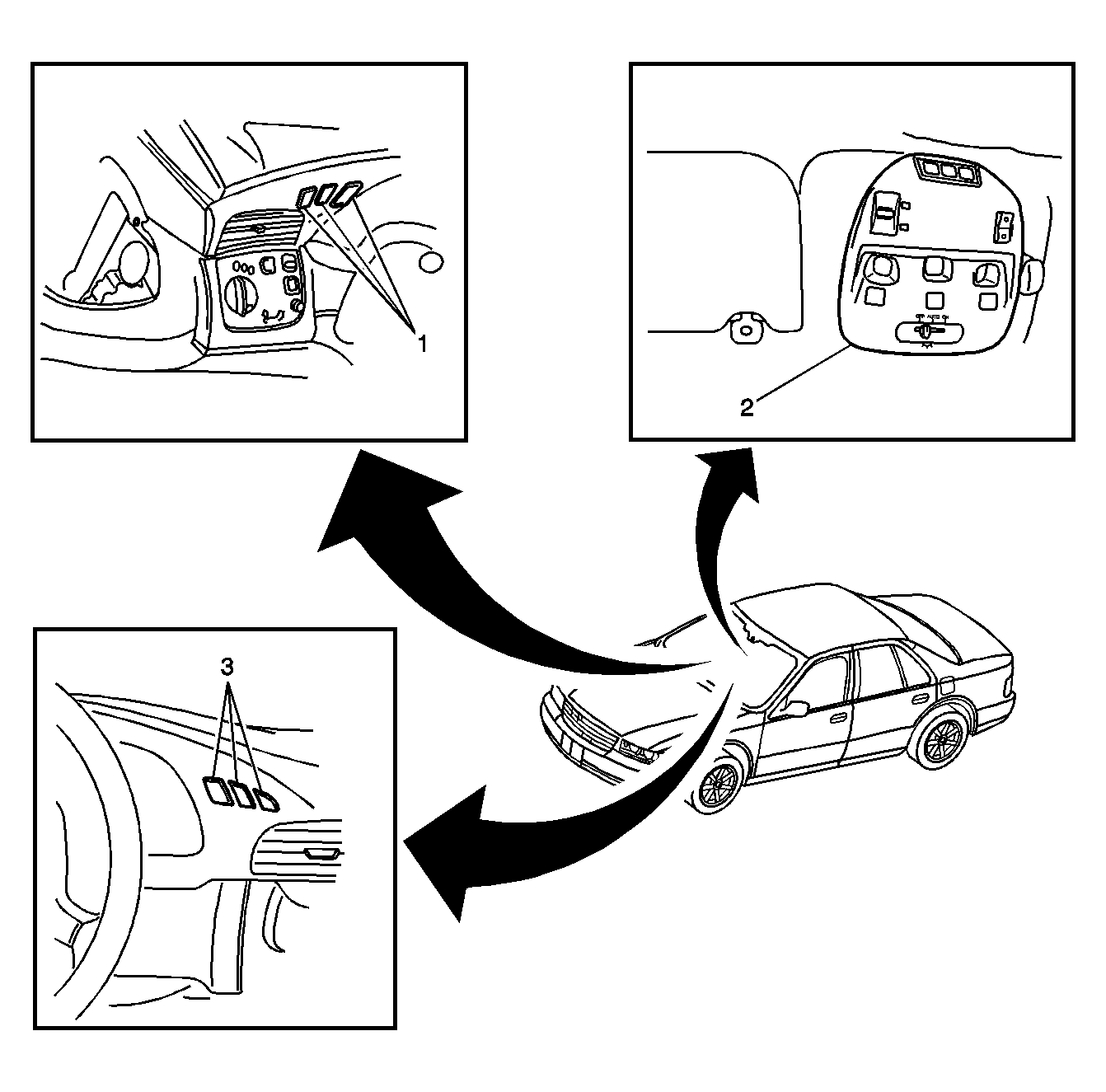

Fig 1: Instrument Panel, Gages, and Console Sub-System Component Locator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Driver Information Center (DIC) - Left
2	Overhead Console
3	Driver Information Center (DIC) - Right

Fig 2: CKP B, CKP A, Engine Oil Pressure Switch, and Engine Oil Level Switch Component Locator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position Sensor (CKP) Sensor B
2	Crankshaft Position Sensor (CKP) Sensor A
3	Engine Oil Pressure (EOP) Switch
4	Engine Oil Level Switch

Fig 3: CKP B, CKP A, Engine Oil Pressure Switch, and Engine Oil Level Switch Component Locator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Crankshaft Position Sensor (CKP) Sensor B
2	Crankshaft Position Sensor (CKP) Sensor A
3	Engine Oil Pressure (EOP) Switch
4	Engine Oil Level Switch

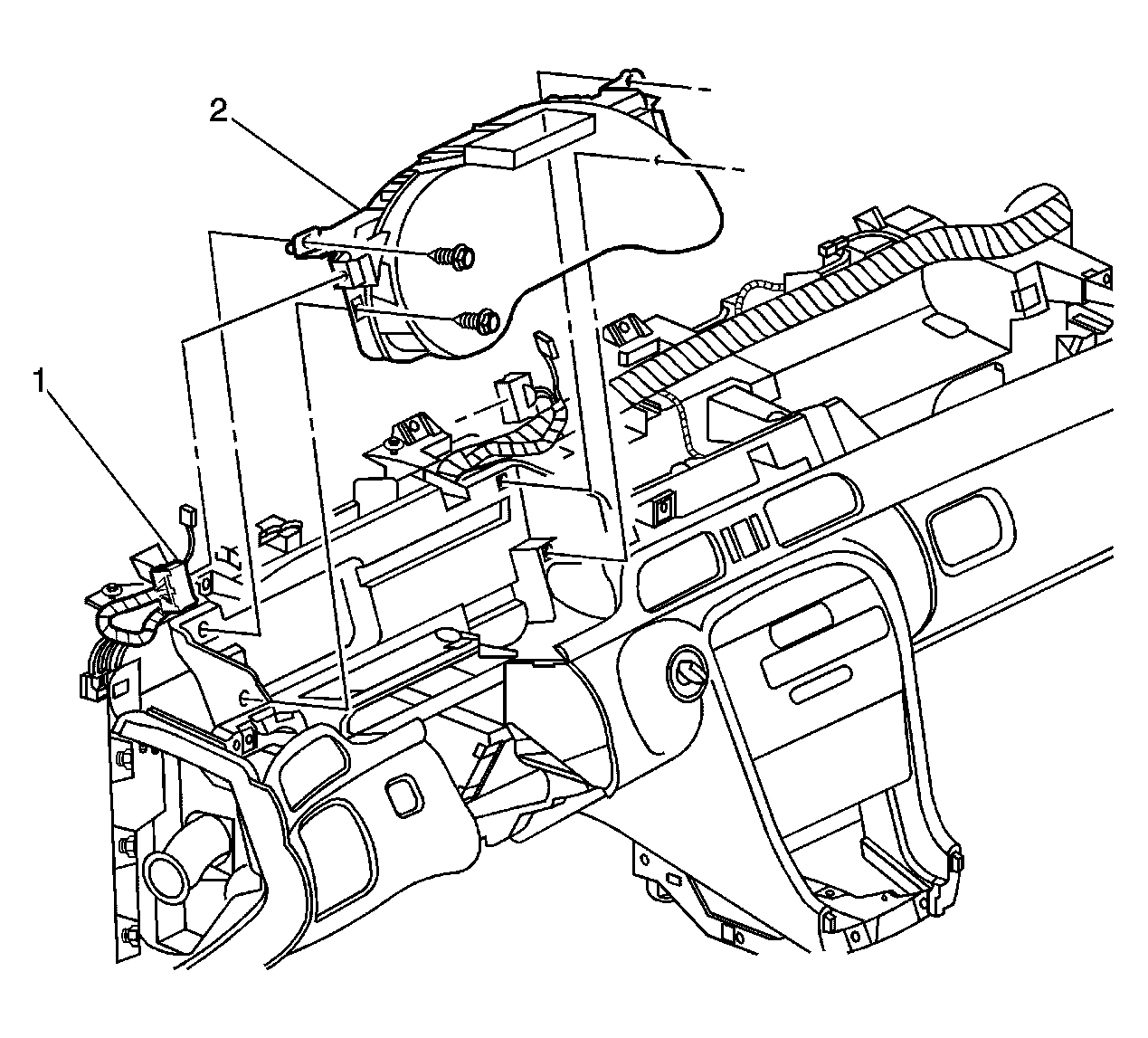

Fig 4: Instrument Panel Component Locator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC) Connector
2	Instrument Panel Cluster (IPC)
