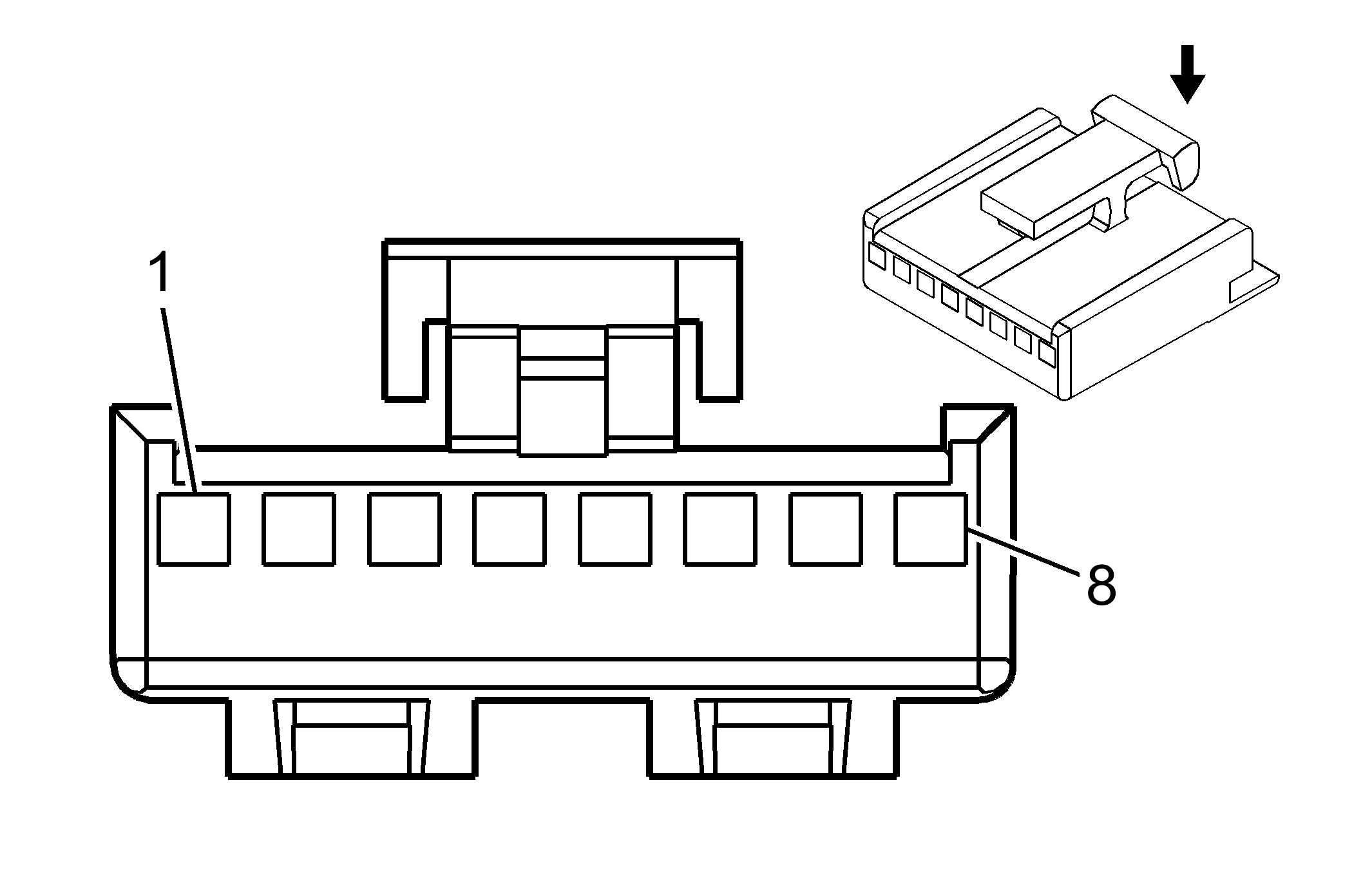

Steering Wheel Speed/Position Sensor Connector End View

Steering Wheel Speed/Position Sensor

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		12052444 8-Way F Micro-Pack 100 Series (BLK)
Pin	Wire Color	Circuit No.	Function
1	GRY	1056	Steering Wheel Position Sensor 5-Volt Reference Voltage
2	BLK	1835	Low Reference
3	LT GRN	1763	Steering Wheel Position Signal A
4	LT BLU	1764	Steering Wheel Position Signal B
5	WHT	1765	Steering Wheel Position Marker Pulse Signal
6	LT BLU	1059	Steering Wheel Position Sensor Signal
7	PNK	41	Ignition 3 Voltage
8	BLK	1851	Ground
