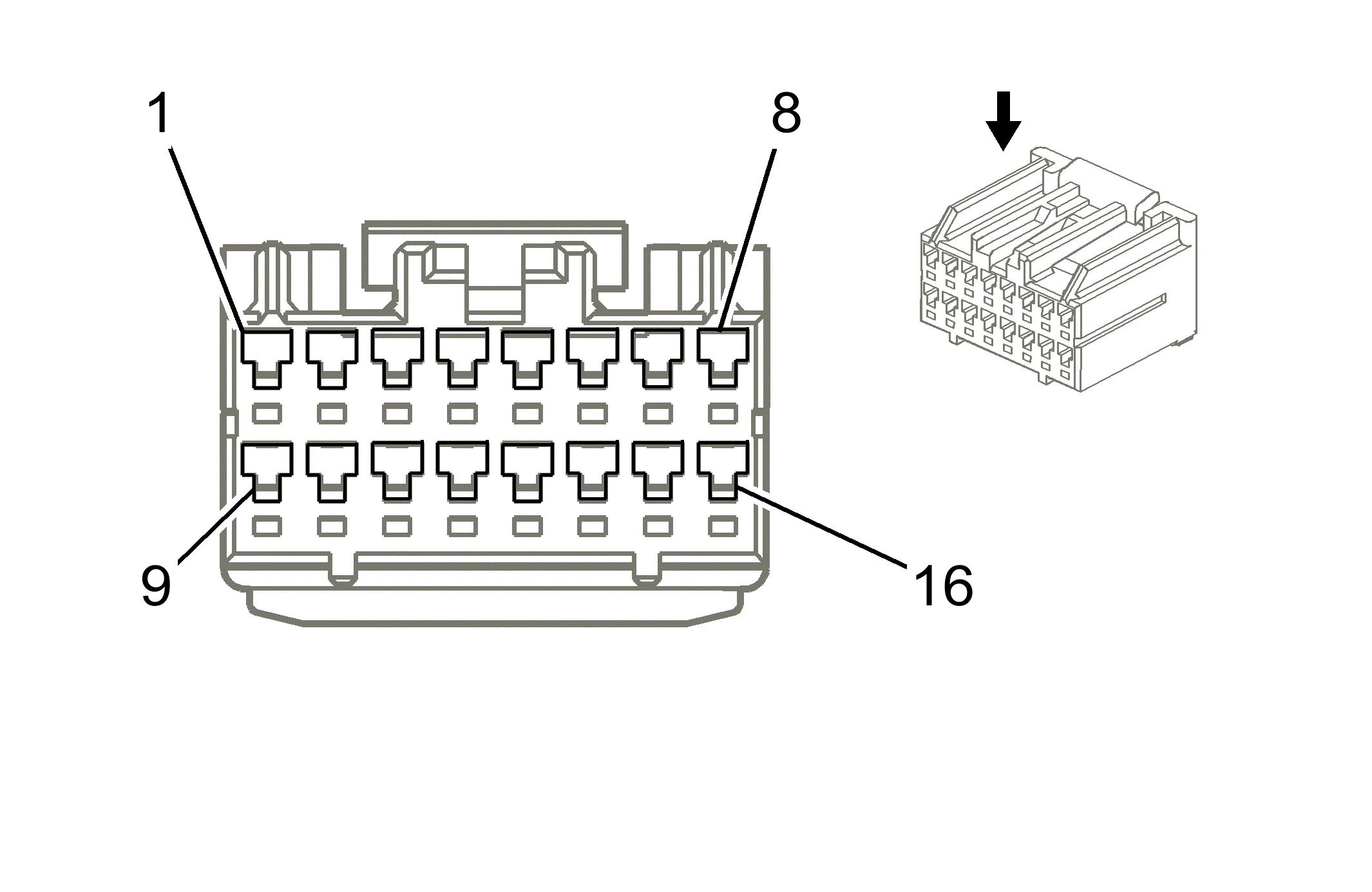

Inside Rearview Mirror Connector End View
Inside Rearview Mirror
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| 1-2 | - | - | Not Used |
| 3 | DK BLU | 2307 | Passenger Air Bag ON Indicator Control |
| 4 | DK GRN | 2308 | Passenger Air Bag OFF Indicator Control |
| 5 | GRY | 1690 | Automatic Day/Night Mirror Signal |
| 6 | DK GRN/ WHT |
636 | Ambient Air Temperature Sensor Signal |
| 7 | BLK/WHT | 1704 | Low Reference |
| 8 | BLK | 1050 | Ground |
| 9 | LT GRN | 24 | Backup Lamp Supply Voltage |
| 10 | - | - | Not Used |
| 11 | DK GRN/ WHT |
2514 | Keypad Signal (UE1) |
| 12 | LT GRN/ BLK |
2515 | Keypad Supply Voltage (UE1) |
| 13 | YEL | 1139 | Ignition 1 Voltage |
| 14 | YEL/BLK | 2516 | Keypad Green LED Signal (UE1) |
| 15 | BRN/WHT | 2517 | Keypad Red LED Signal (UE1) |
| 16 | PNK | 1691 | Automatic Day/Night Mirror Low Reference |
