Automatic Transmission System Hydraulic Diagrams

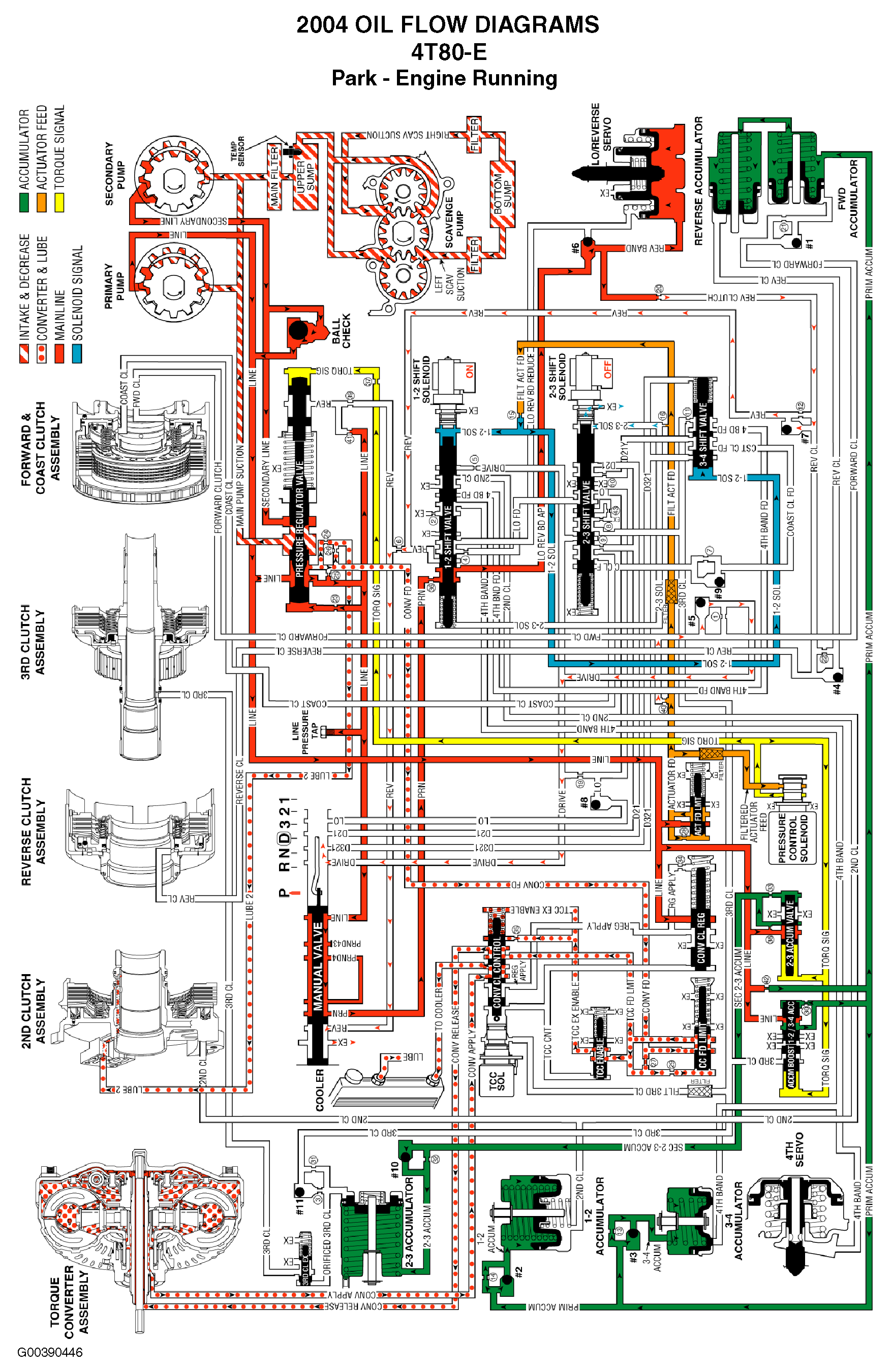

Fig 1: Park - Engine Running

Courtesy of GENERAL MOTORS CORP.

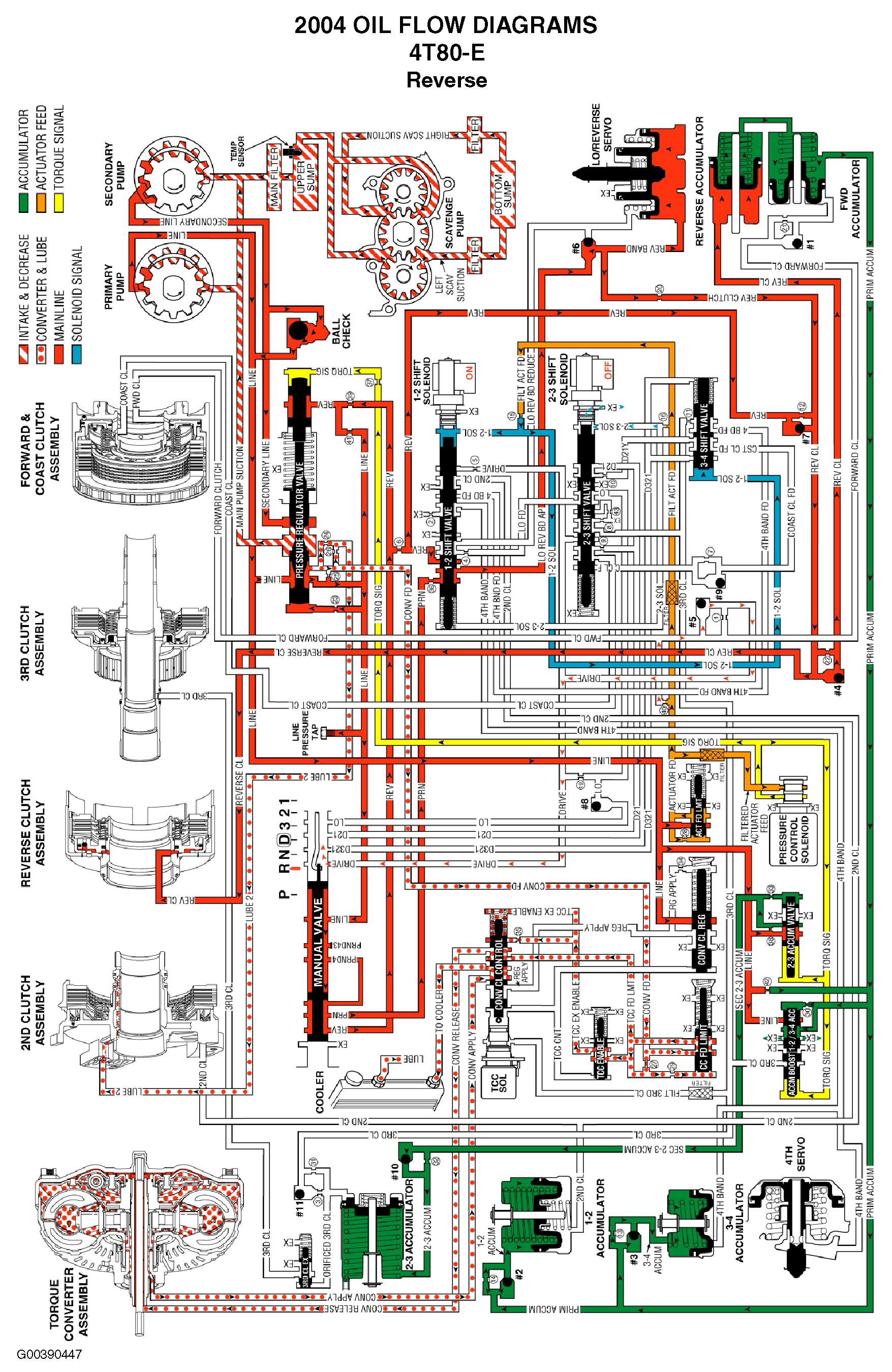

Fig 2: Reverse

Courtesy of GENERAL MOTORS CORP.

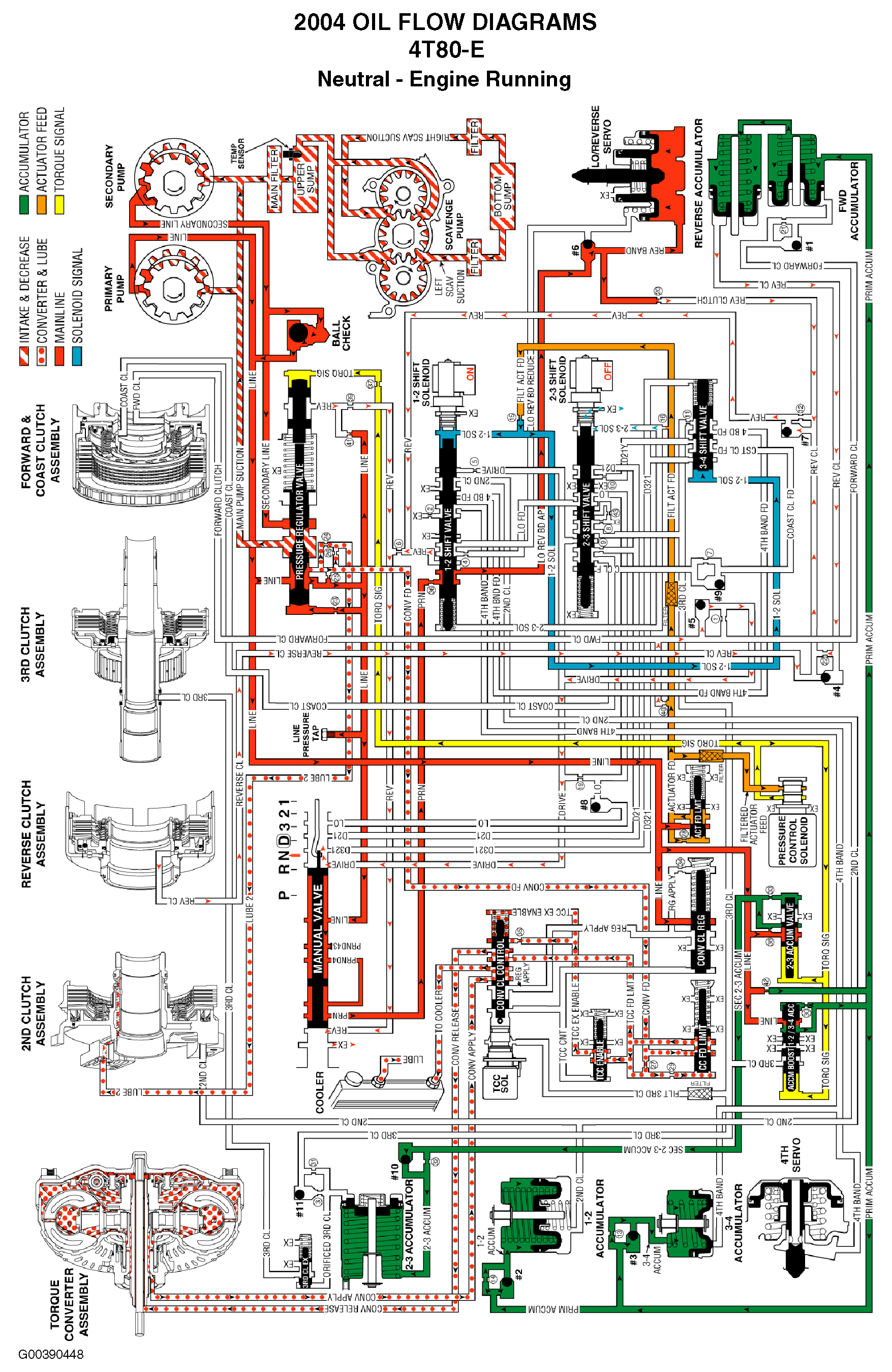

Fig 3: Neutral - Engine Running

Courtesy of GENERAL MOTORS CORP.

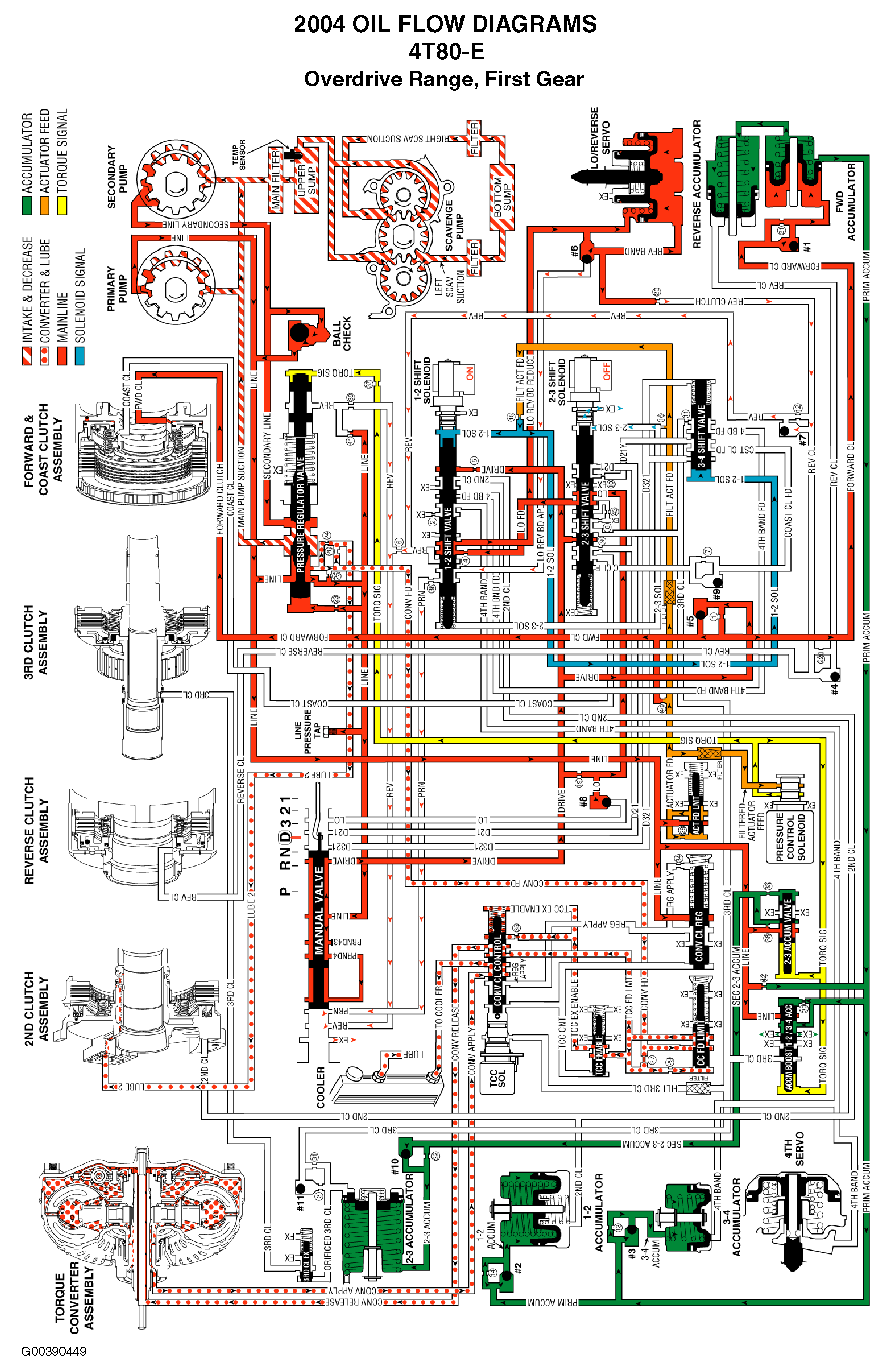

Fig 4: Overdrive Range, First Gear

Courtesy of GENERAL MOTORS CORP.

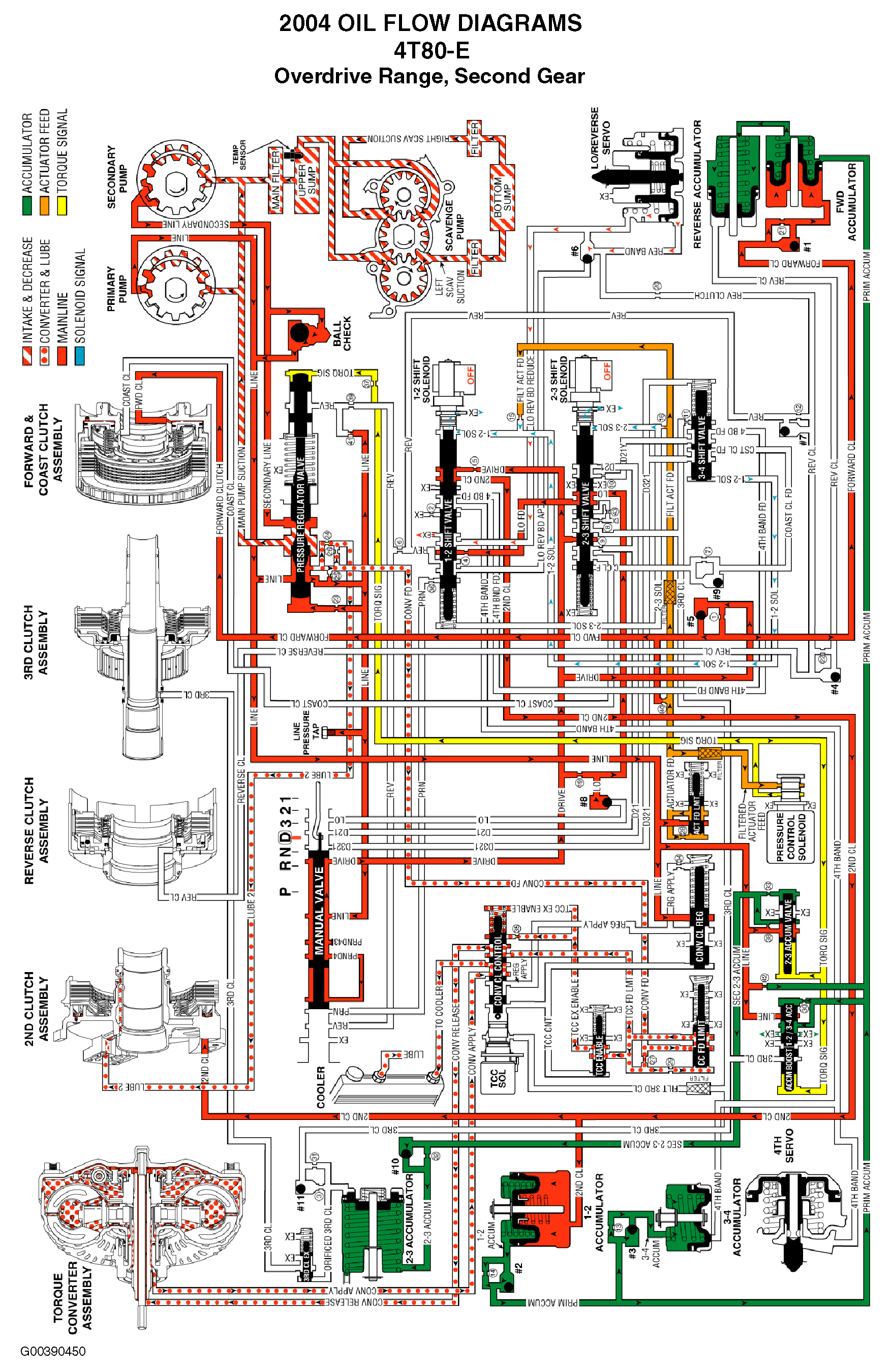

Fig 5: Overdrive Range, Second Gear

Courtesy of GENERAL MOTORS CORP.

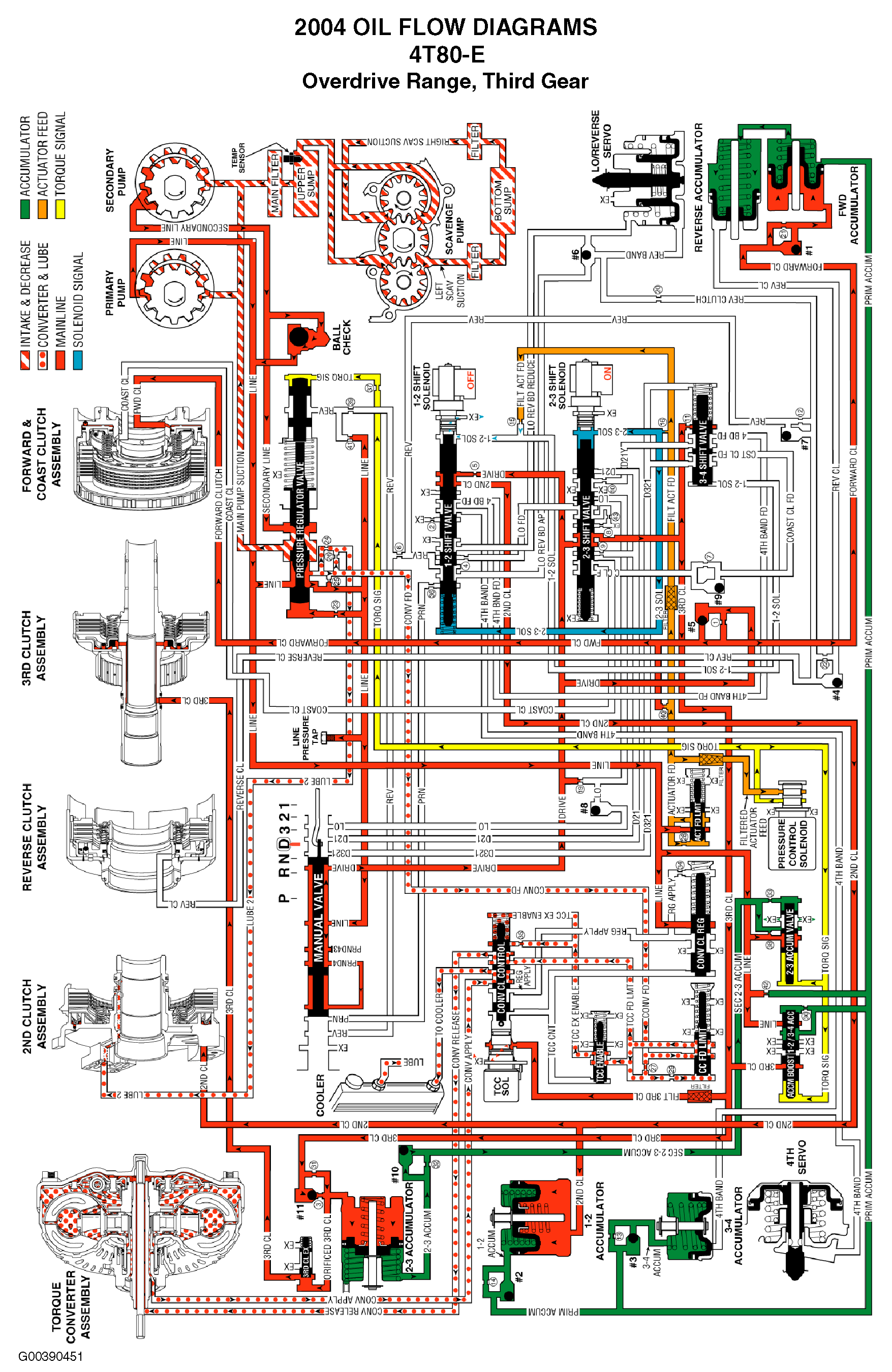

Fig 6: Overdrive Range, Third Gear

Courtesy of GENERAL MOTORS CORP.

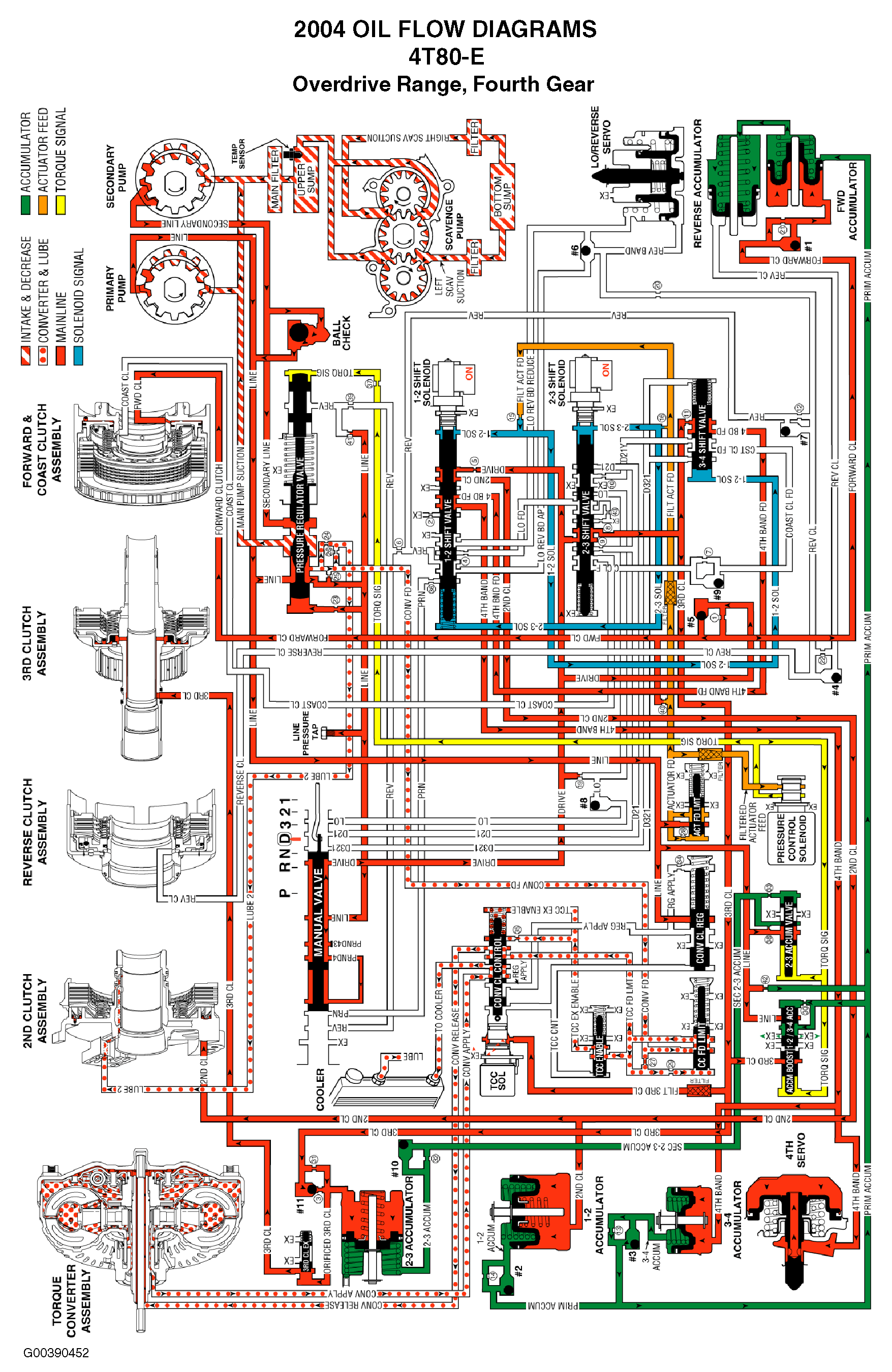

Fig 7: Overdrive Range, Fourth Gear

Courtesy of GENERAL MOTORS CORP.

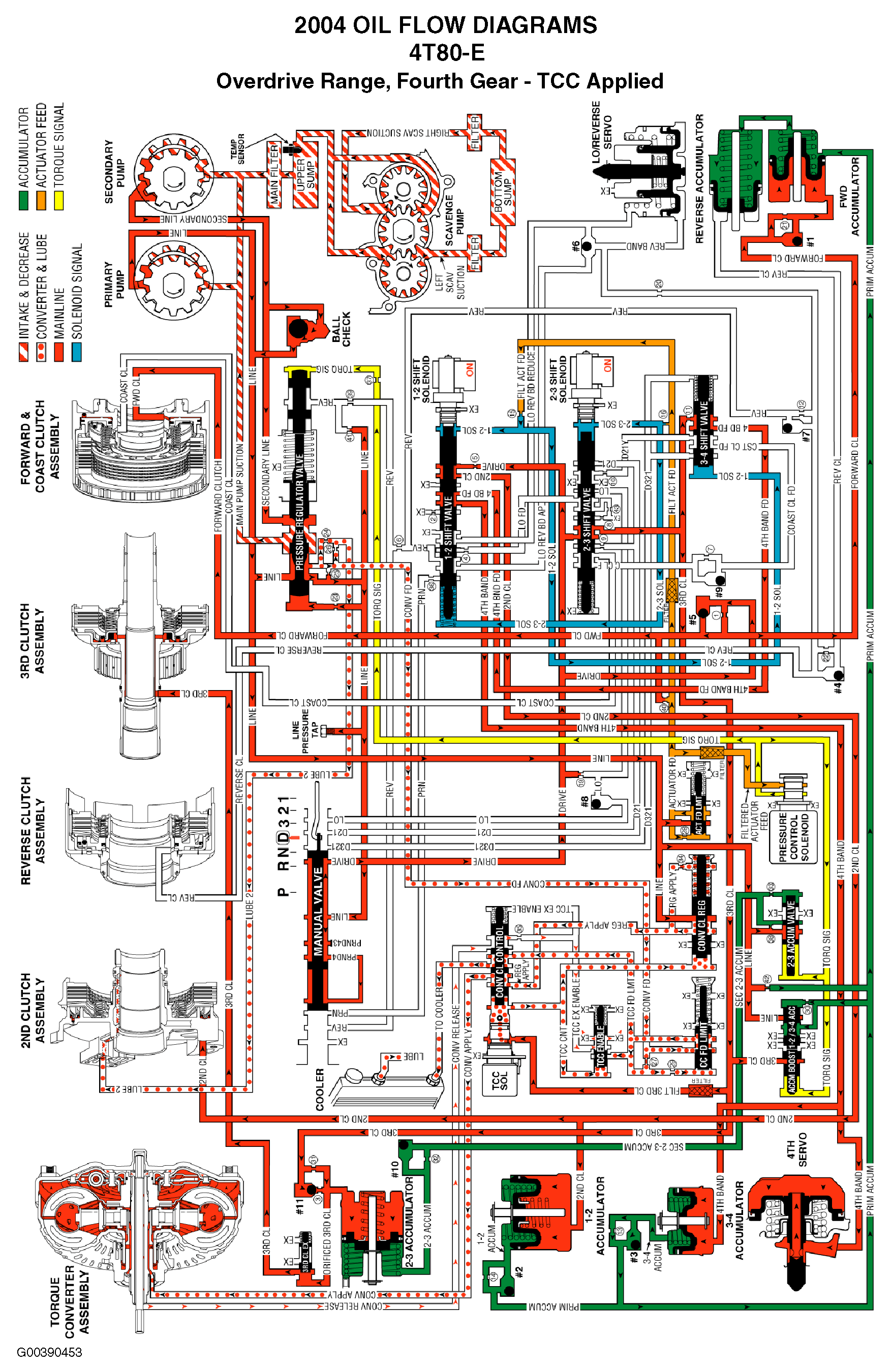

Fig 8: Overdrive Range, Fourth Gear - TCC Applied

Courtesy of GENERAL MOTORS CORP.

Fig 9: Overdrive Range, 4-3 Downshift

Courtesy of GENERAL MOTORS CORP.

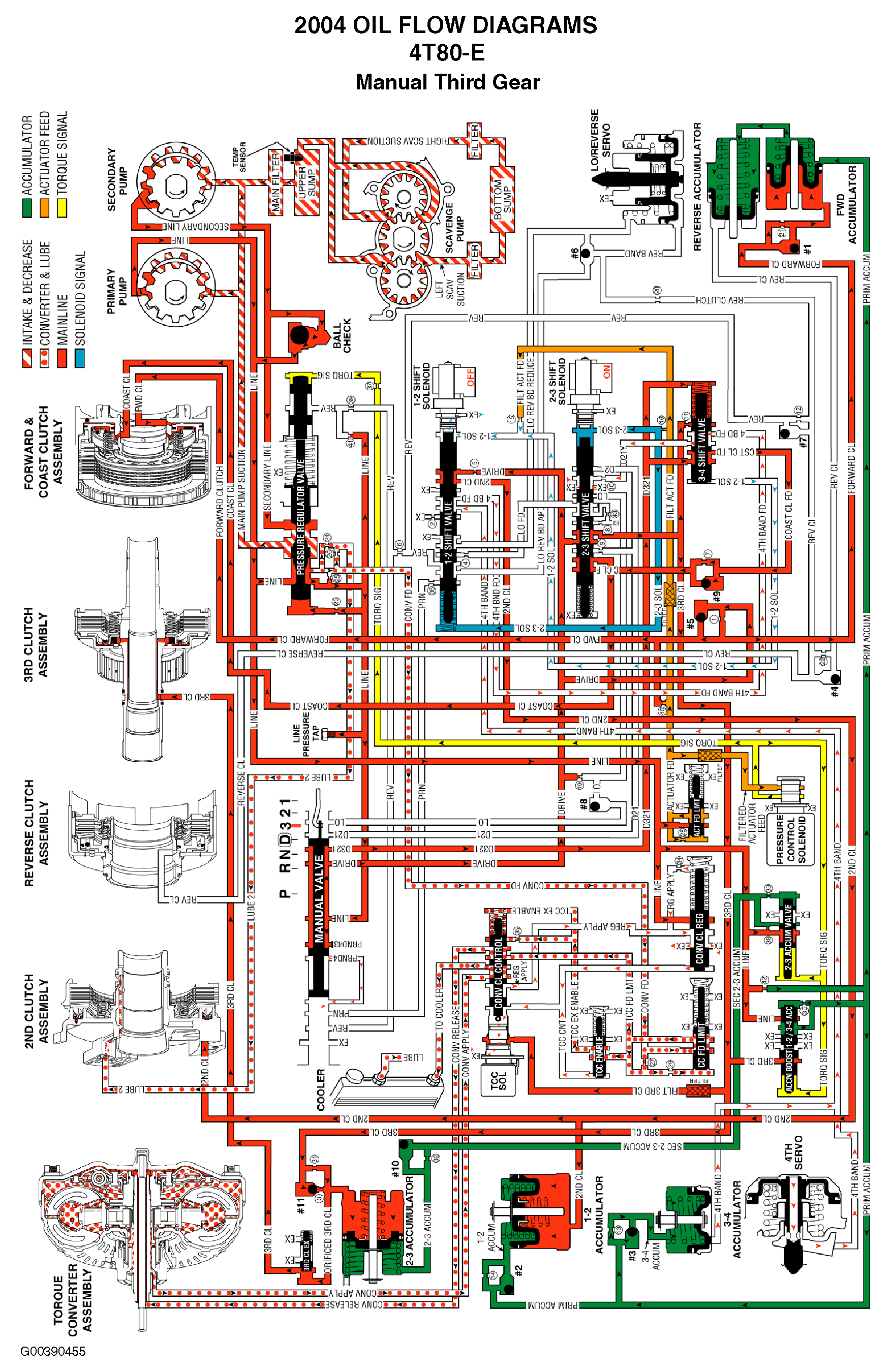

Fig 10: Manual Third Gear

Courtesy of GENERAL MOTORS CORP.

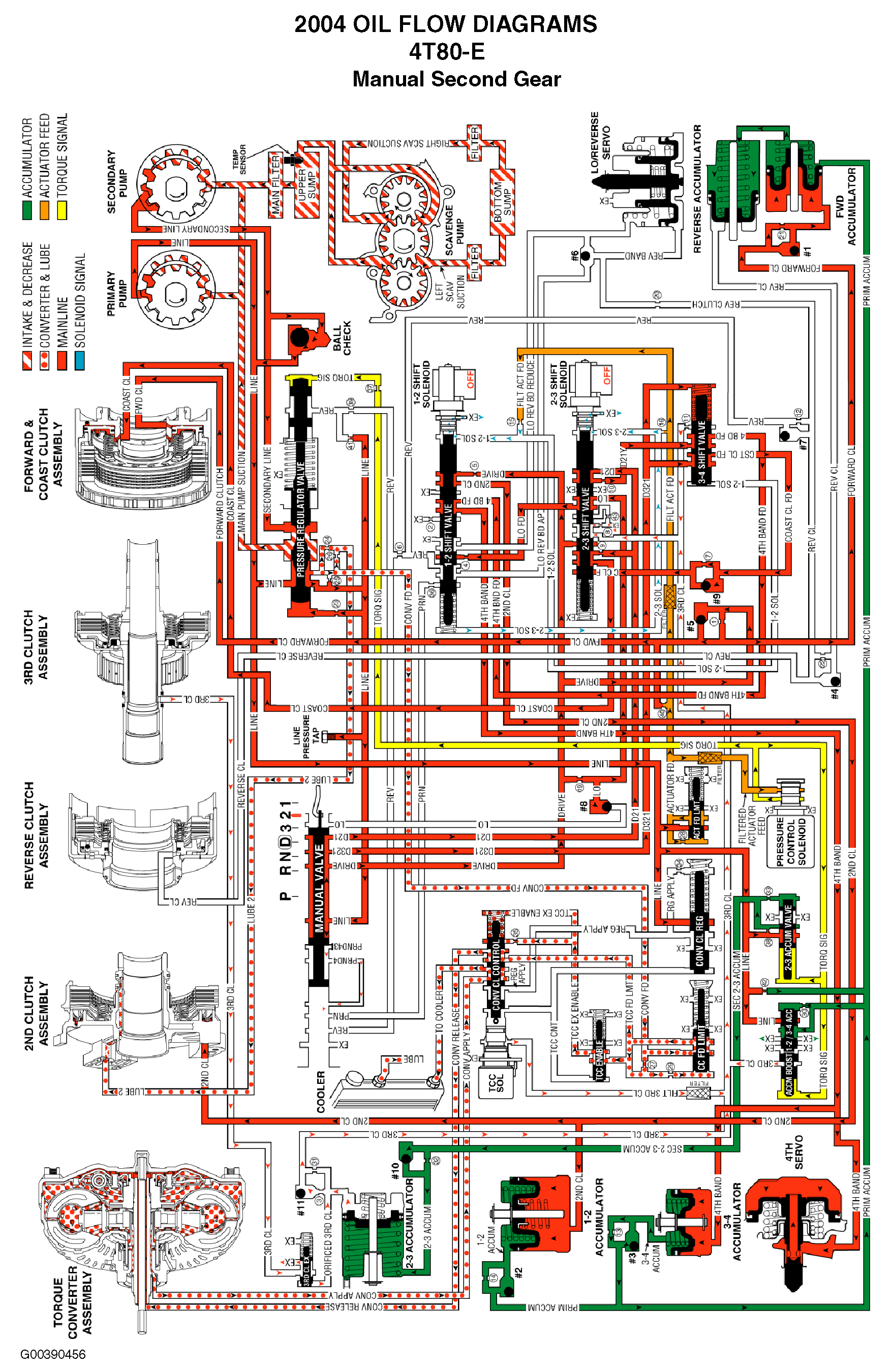

Fig 11: Manual Second Gear

Courtesy of GENERAL MOTORS CORP.

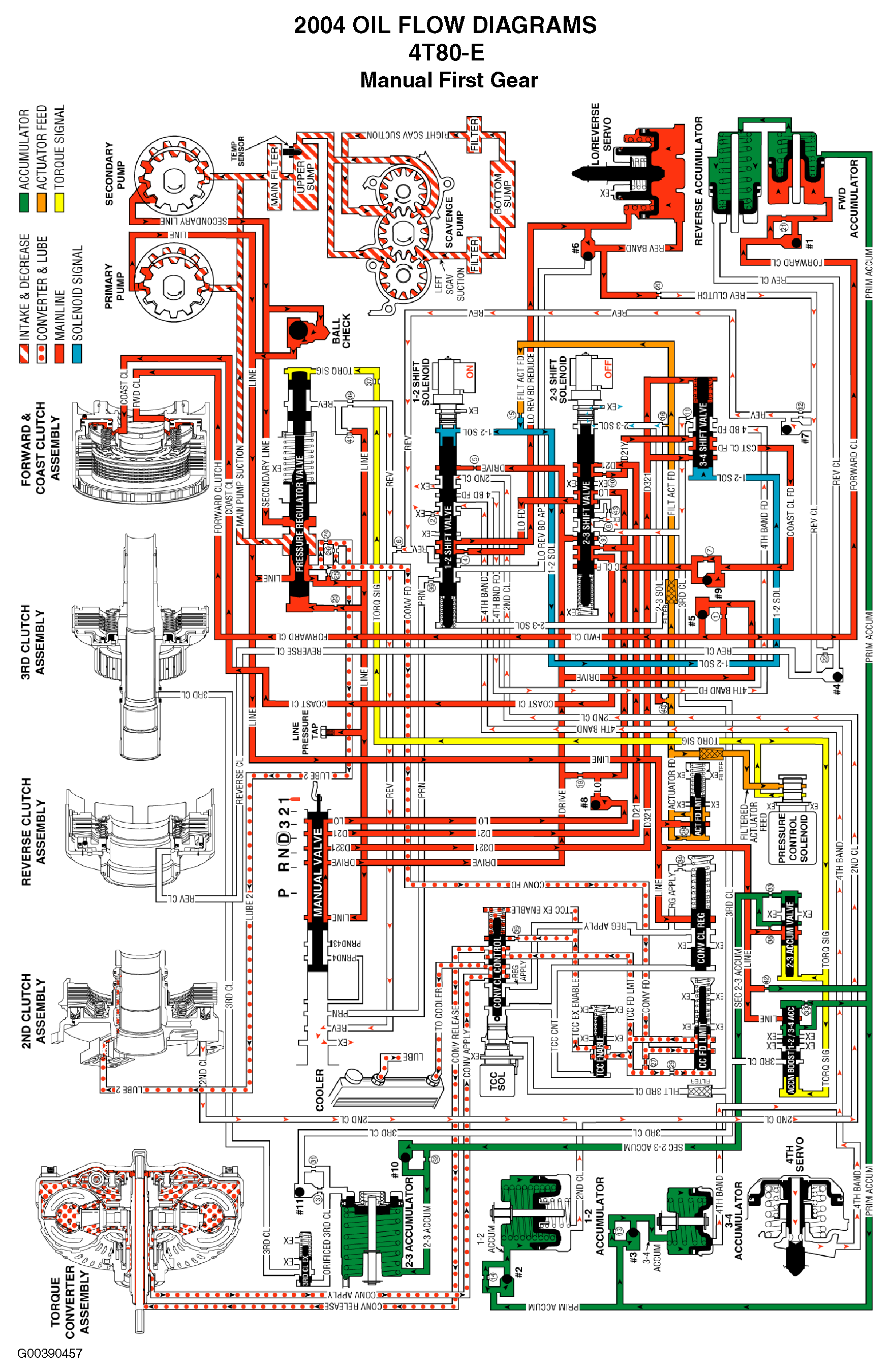

Fig 12: Manual First Gear

Courtesy of GENERAL MOTORS CORP.
