Suspension Controls Schematics

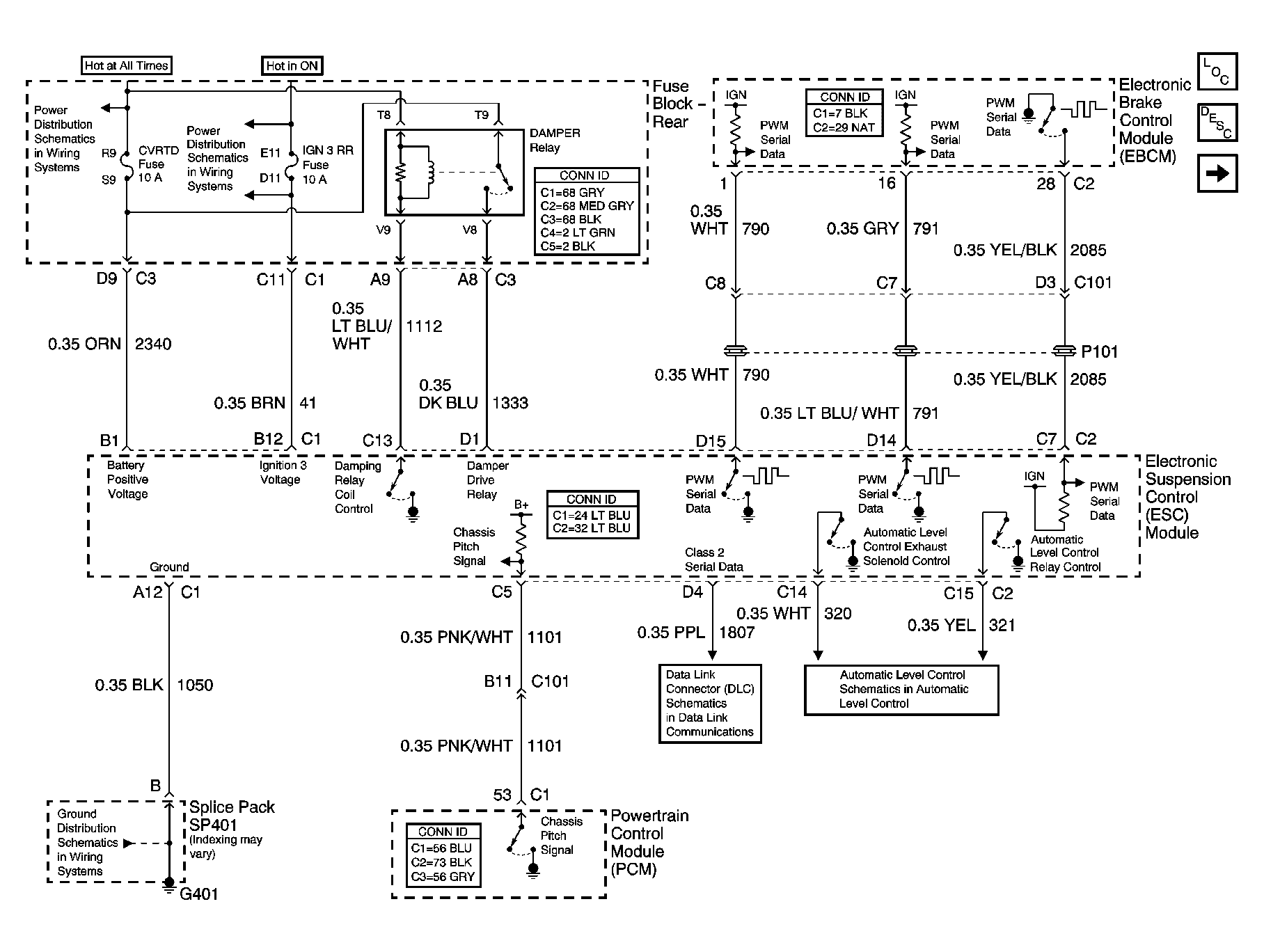

Fig 1: Electronic Suspension Control Module-Power and Ground Schematic
GM1232515Courtesy of GENERAL MOTORS CORP.

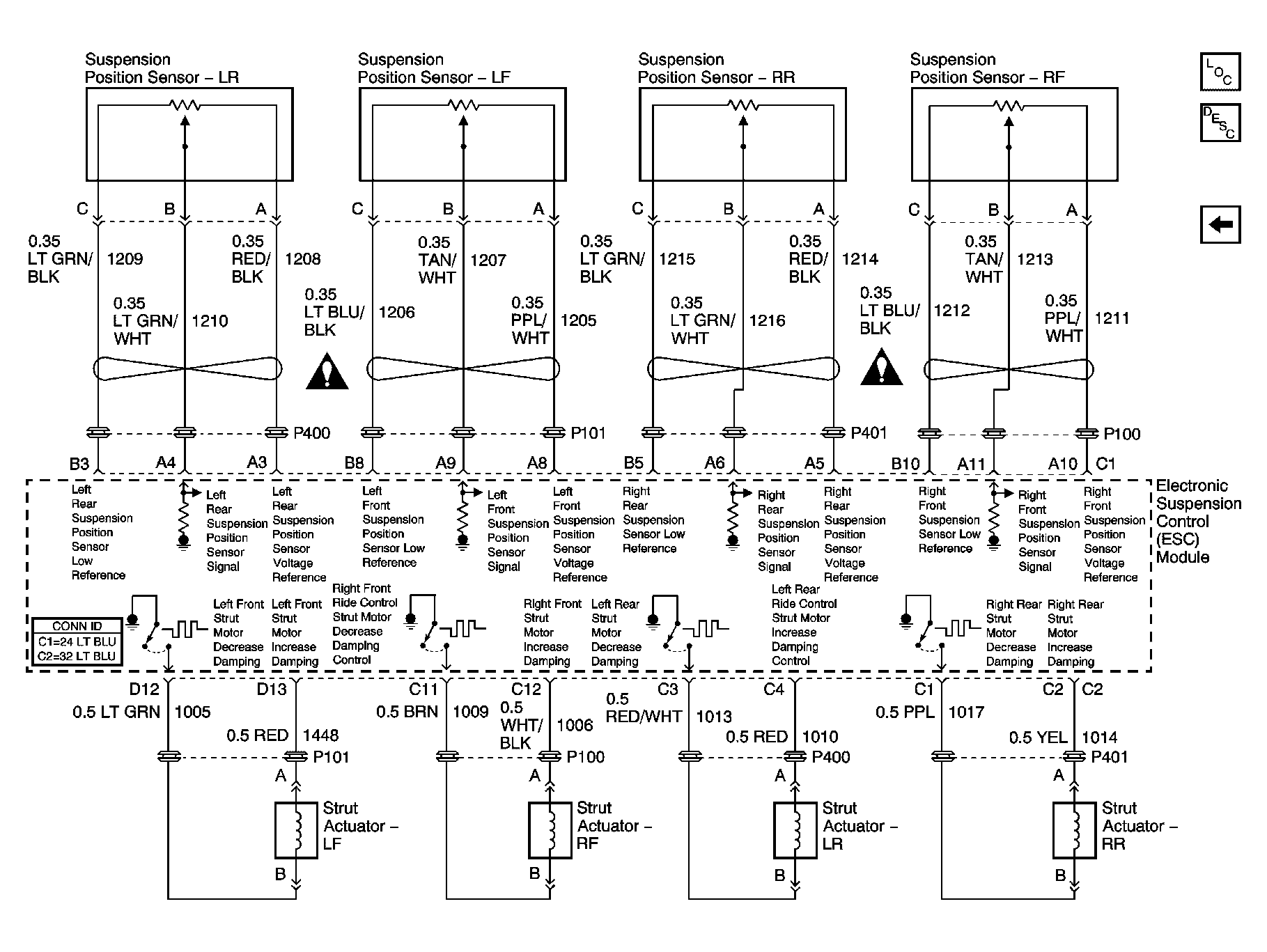

Fig 2: Actuators and Sensors Schematic
GM800195Courtesy of GENERAL MOTORS CORP.
