Tilt/Telescoping Steering Column Schematics

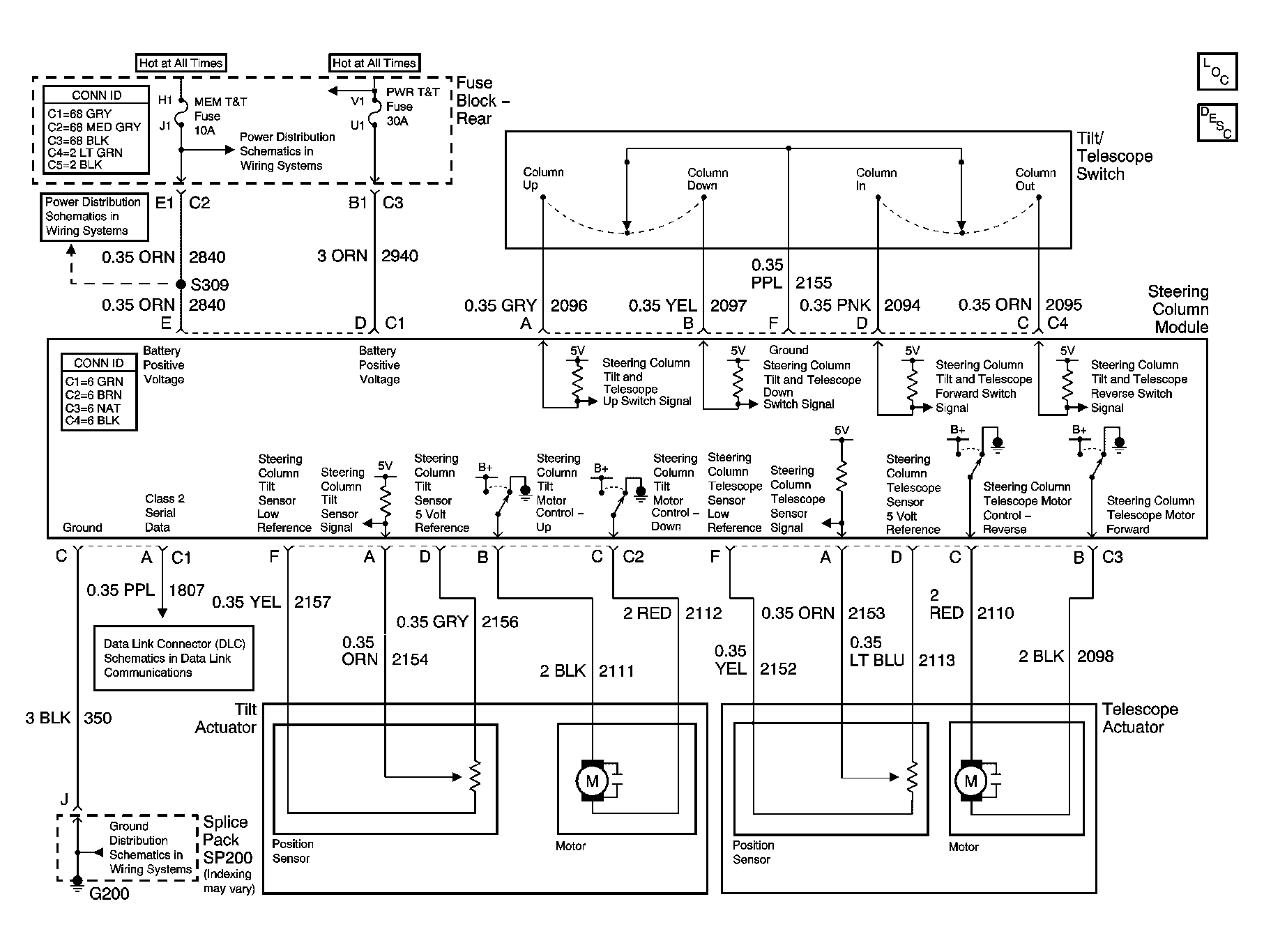

Fig 1: Tilt/Telescoping Steering Column Schematic

GM661815

Courtesy of GENERAL MOTORS CORP.
