SIR Schematics

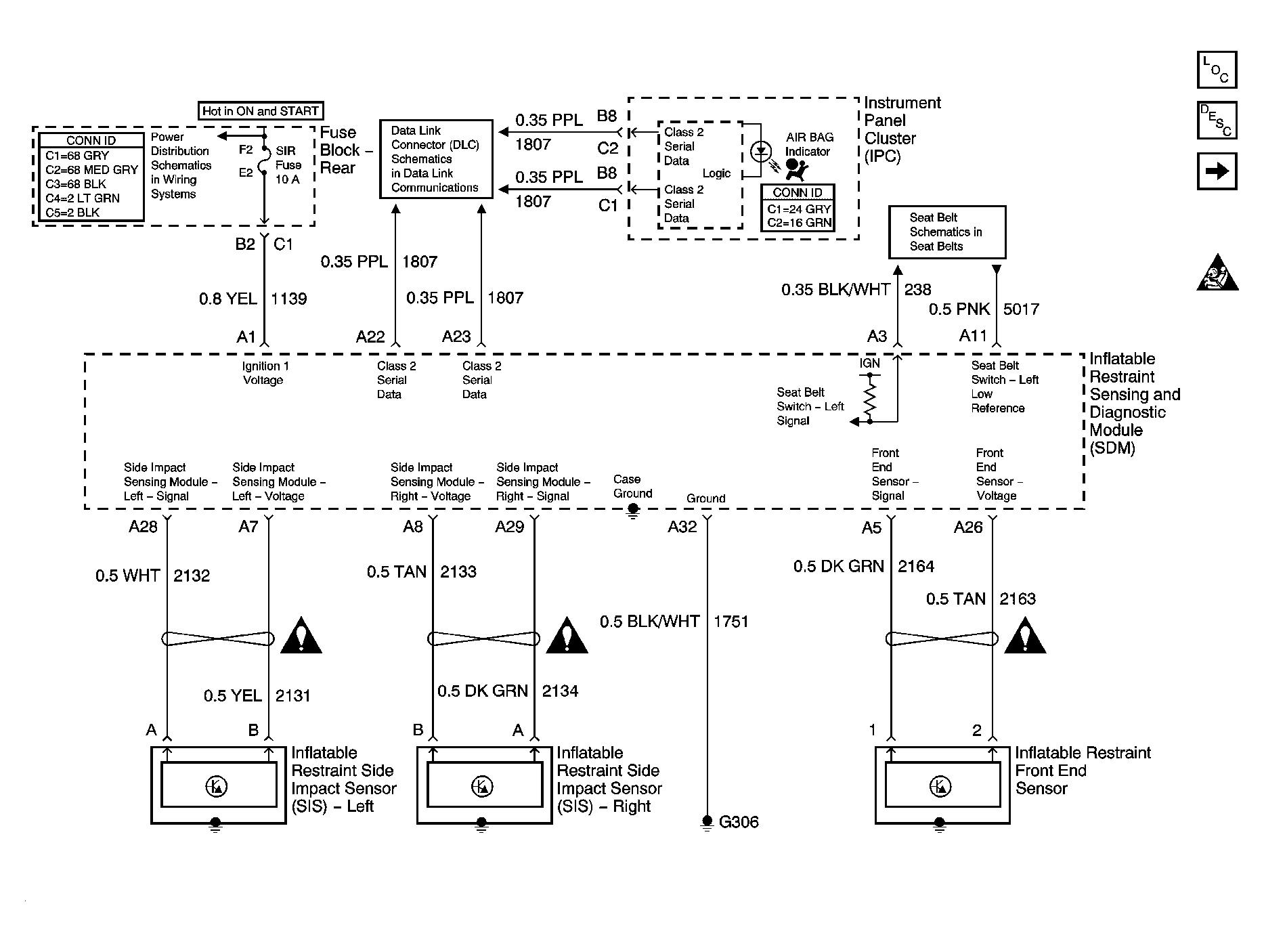

Fig 1: Power, Ground and Sensors Schematic
GM798025Courtesy of GENERAL MOTORS CORP.

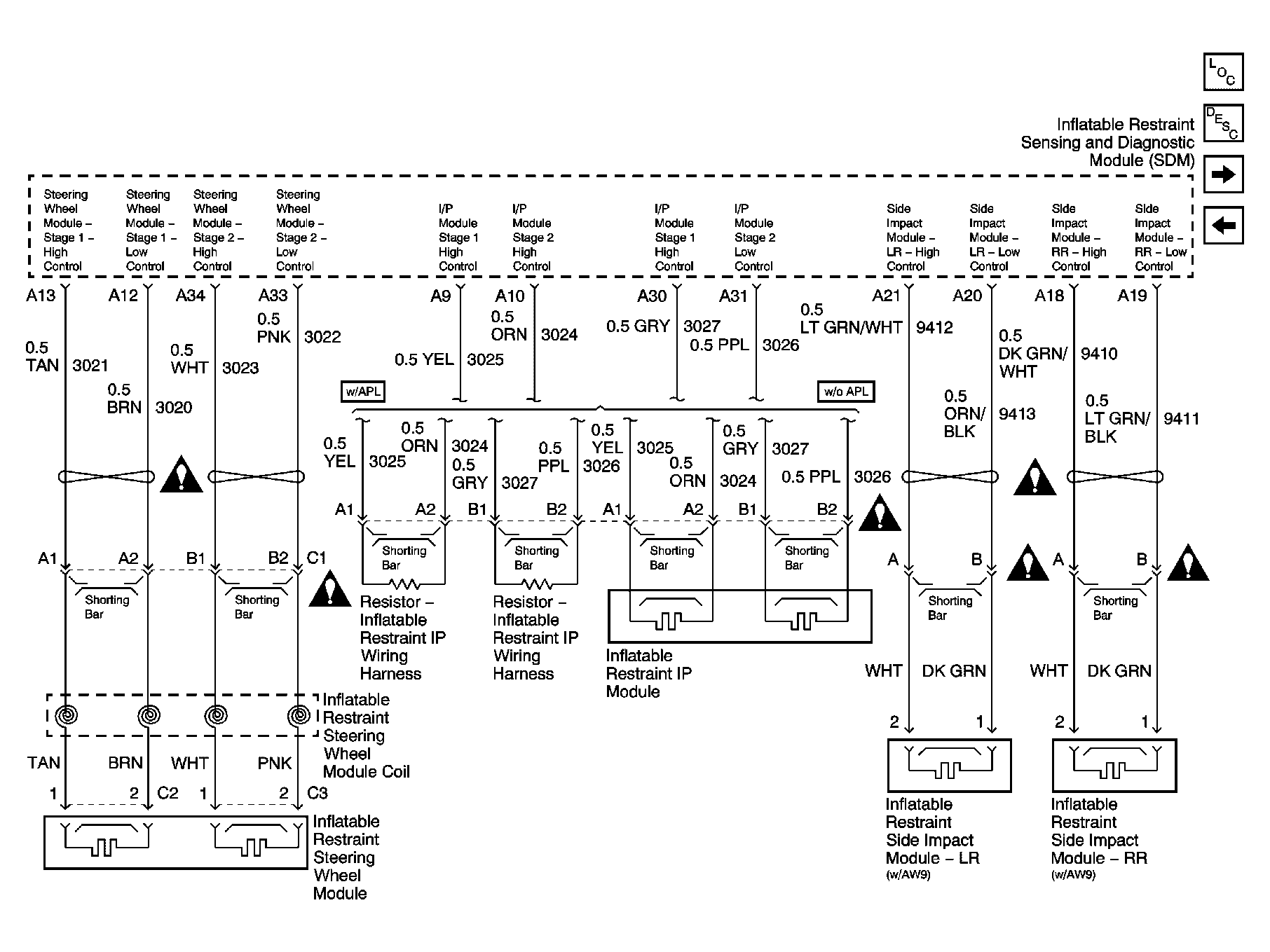

Fig 2: Front and Rear Side Inflator Modules Schematic
GM798024Courtesy of GENERAL MOTORS CORP.

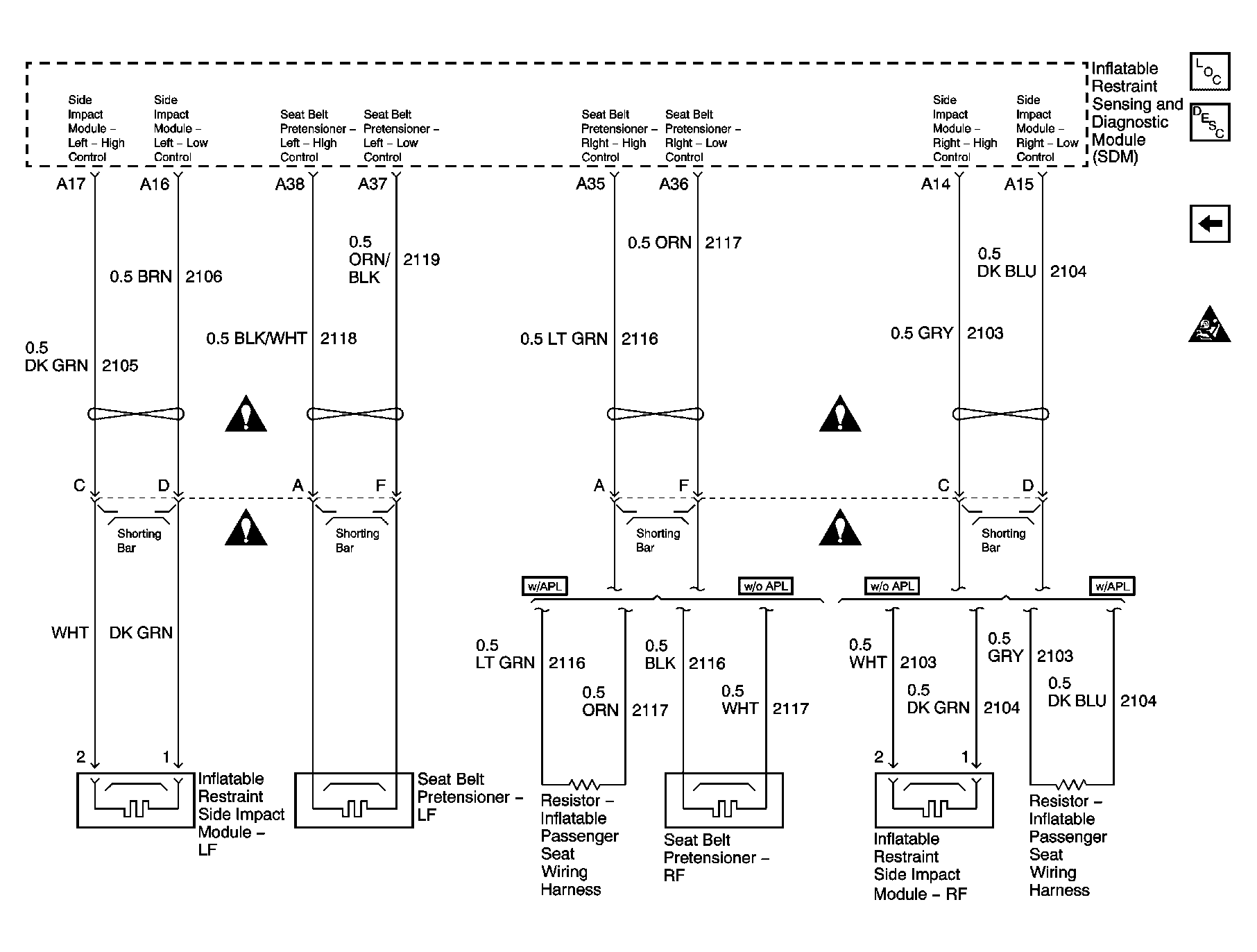

Fig 3: Side Inflator Modules and Pretensioners Schematic
GM798027Courtesy of GENERAL MOTORS CORP.
