HVAC Schematics

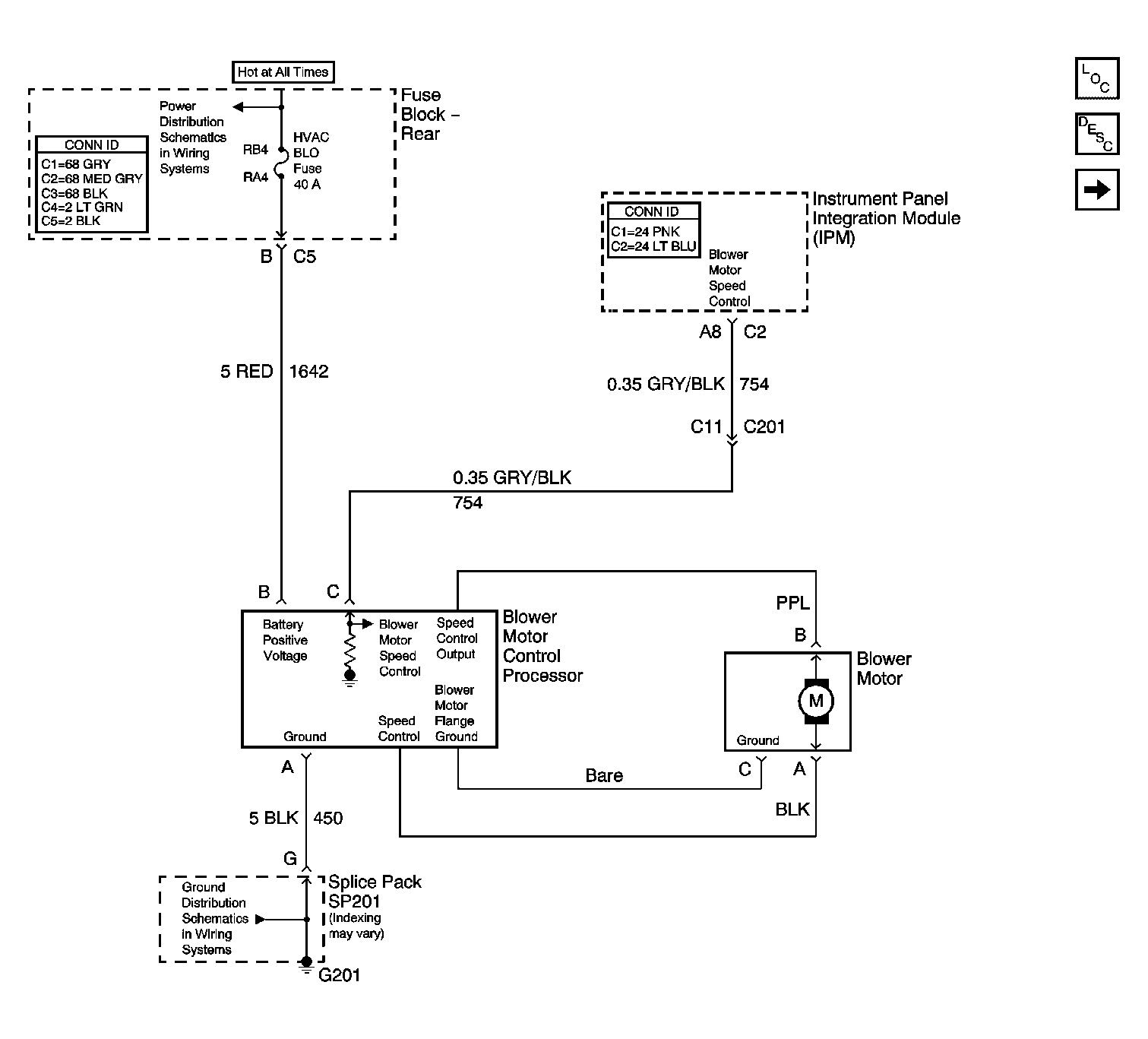

Fig 1: Front Blower Motor Schematic

Courtesy of GENERAL MOTORS CORP.

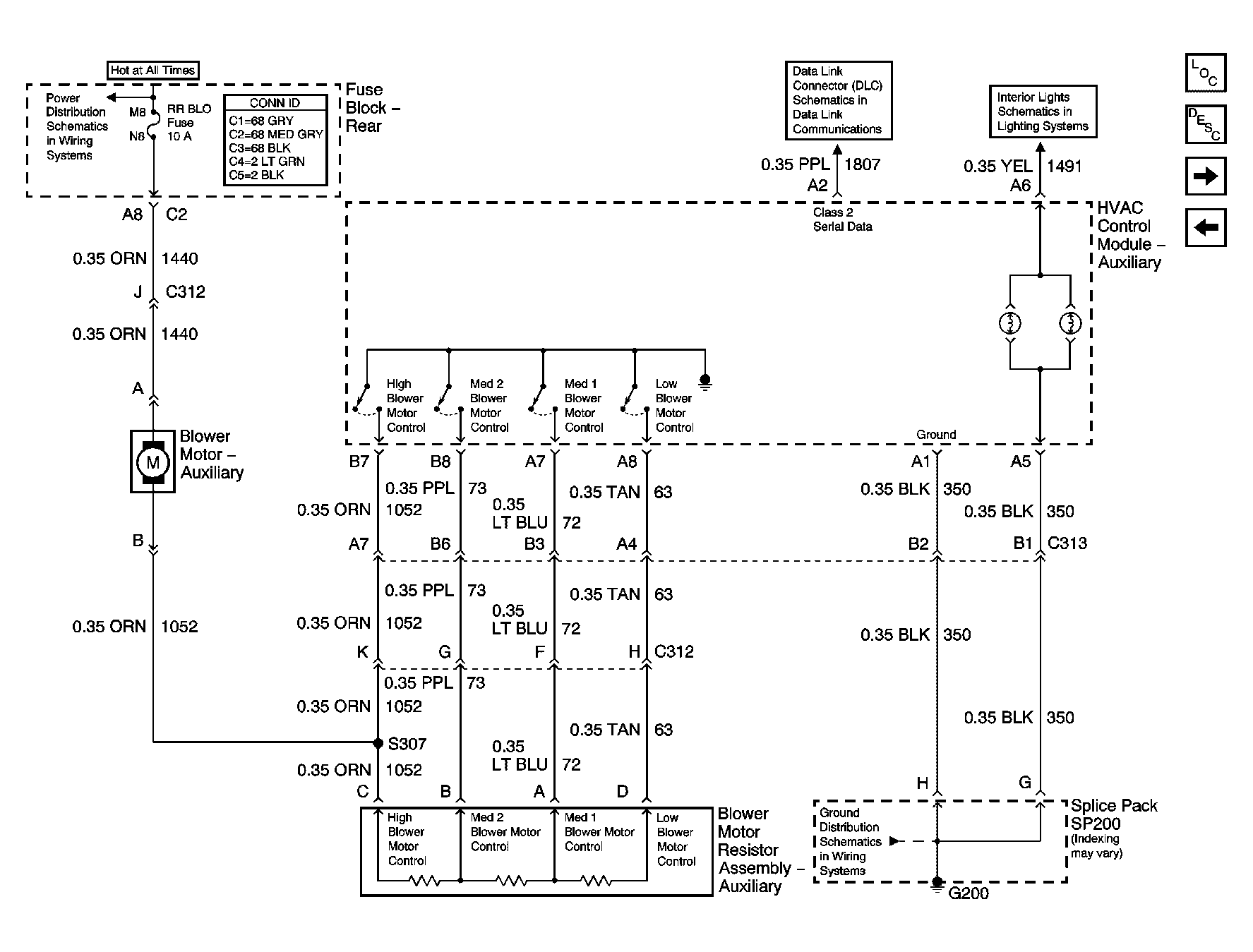

Fig 2: Rear Blower Motor-Deville/DHS Schematic

Courtesy of GENERAL MOTORS CORP.

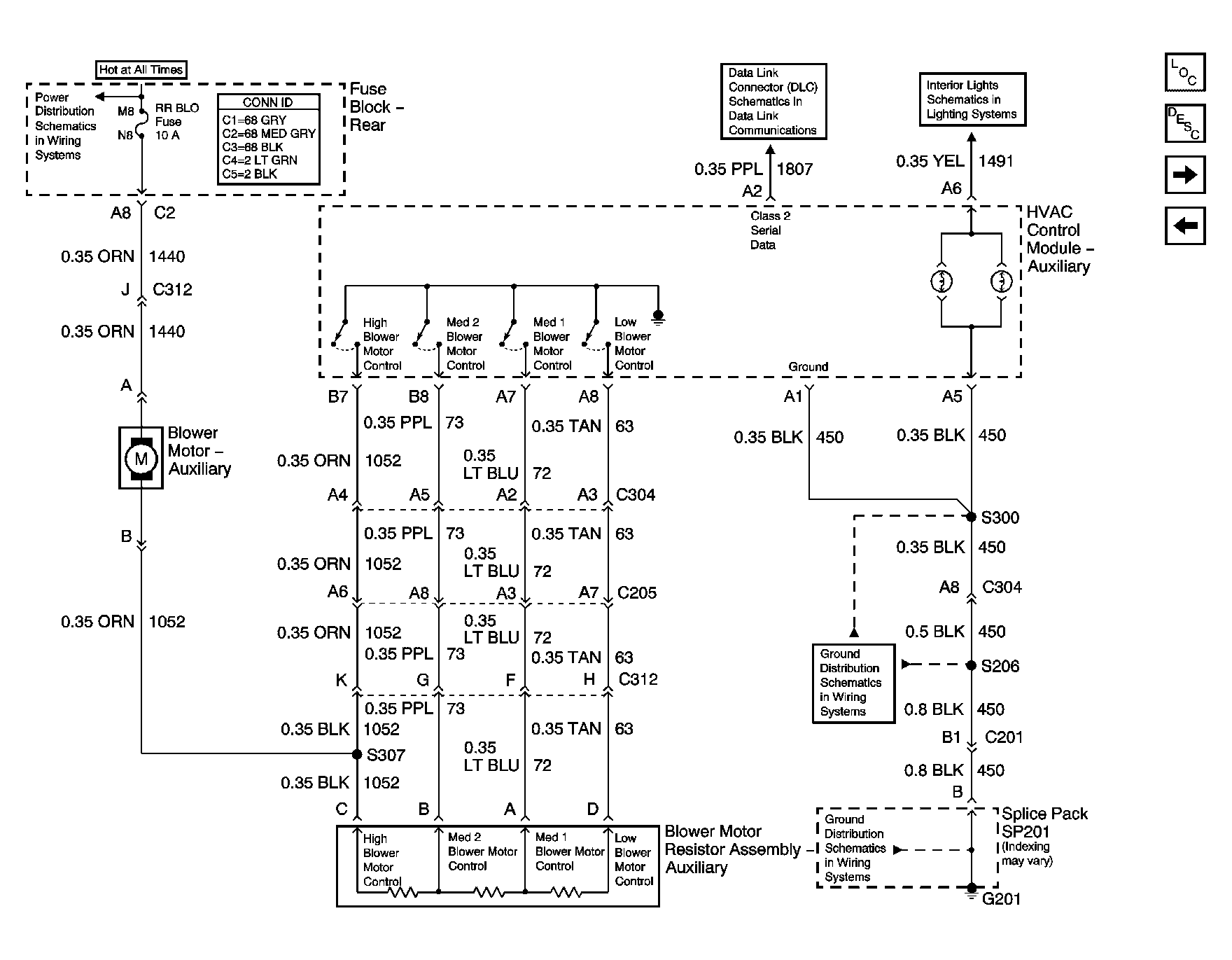

Fig 3: Rear Blower Motor-DTS Schematic

Courtesy of GENERAL MOTORS CORP.

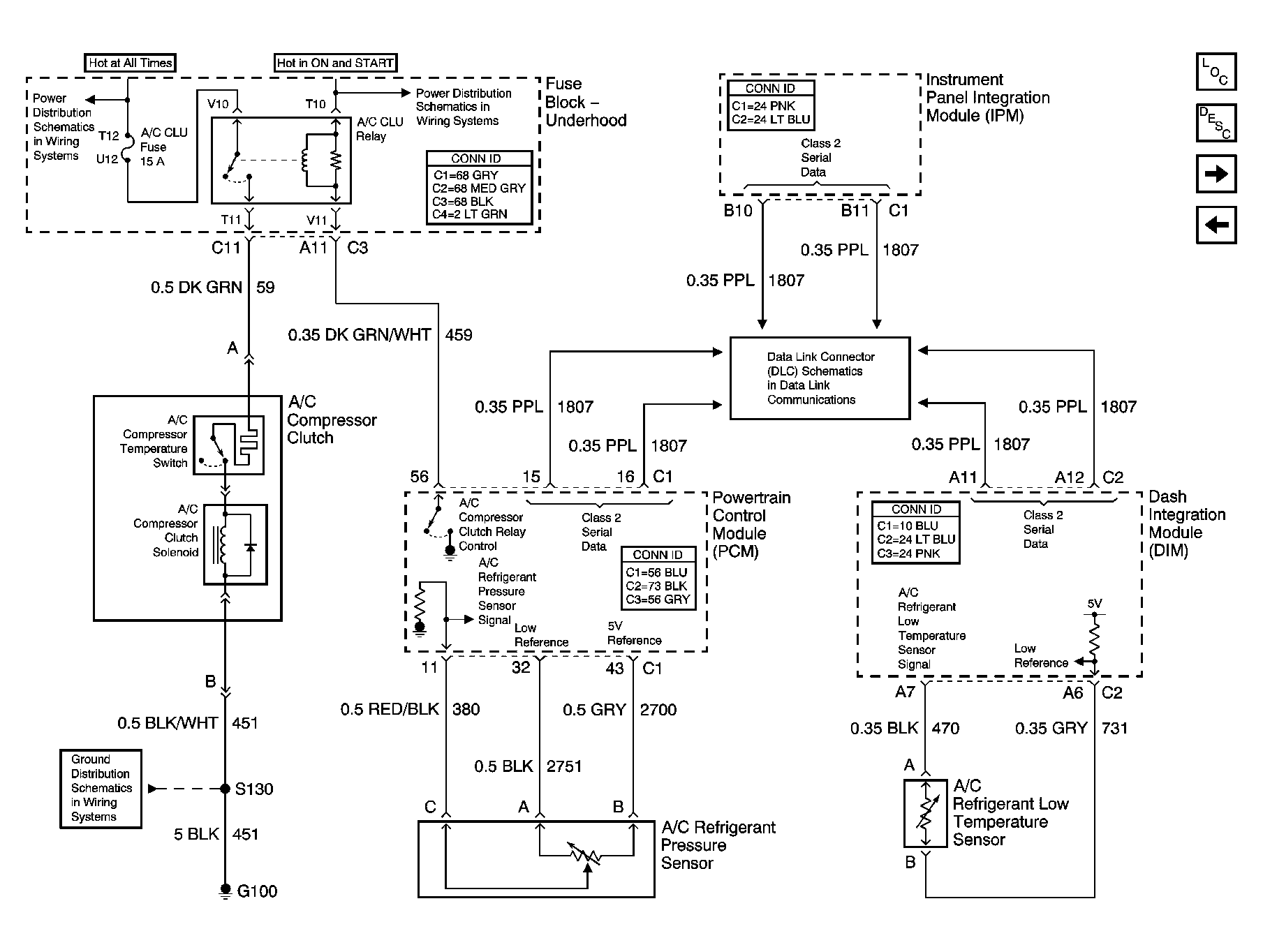

Fig 4: HVAC Compressor Control Schematic

Courtesy of GENERAL MOTORS CORP.

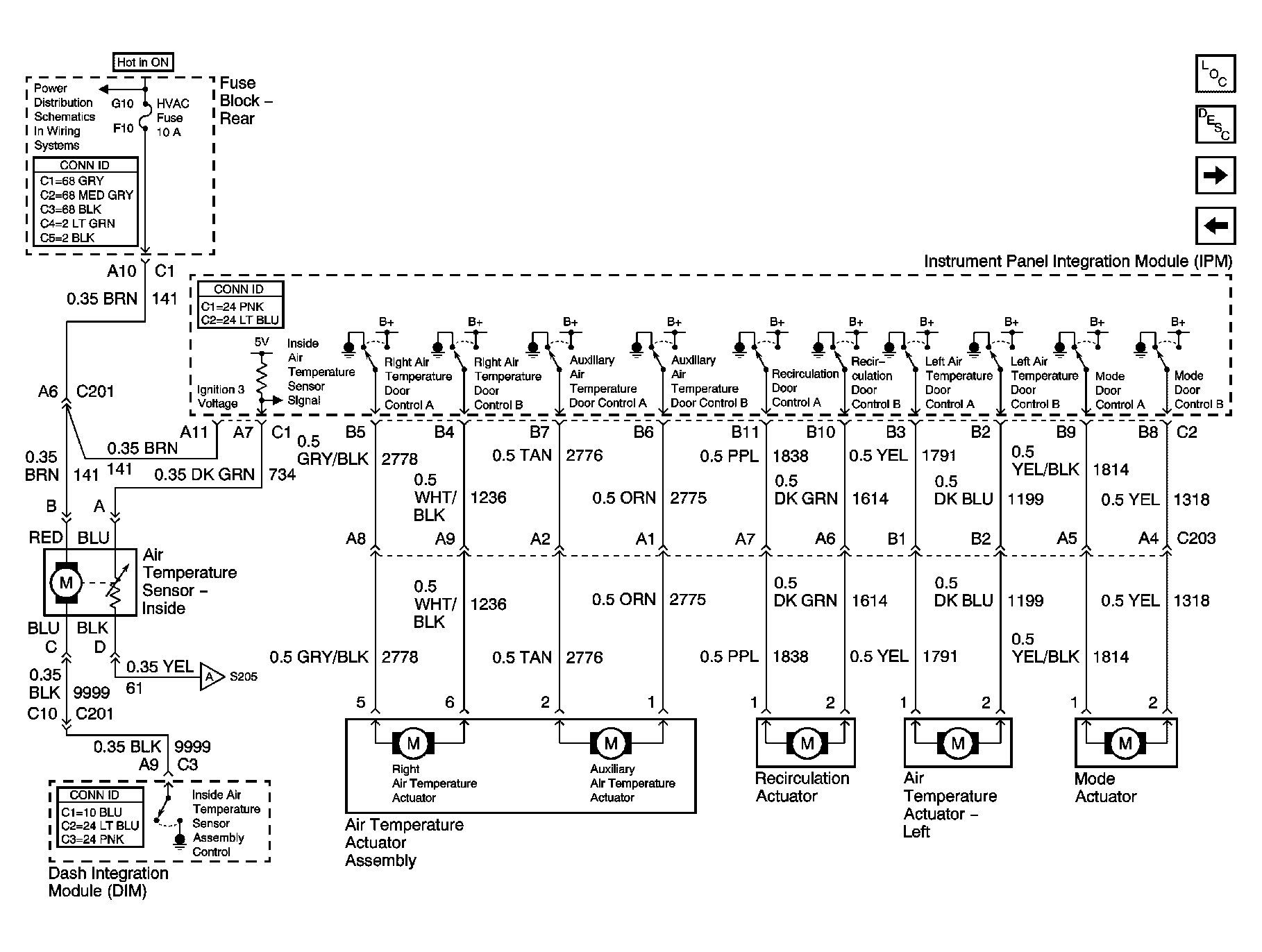

Fig 5: Actuators and Air Temperature Control Schematic

Courtesy of GENERAL MOTORS CORP.

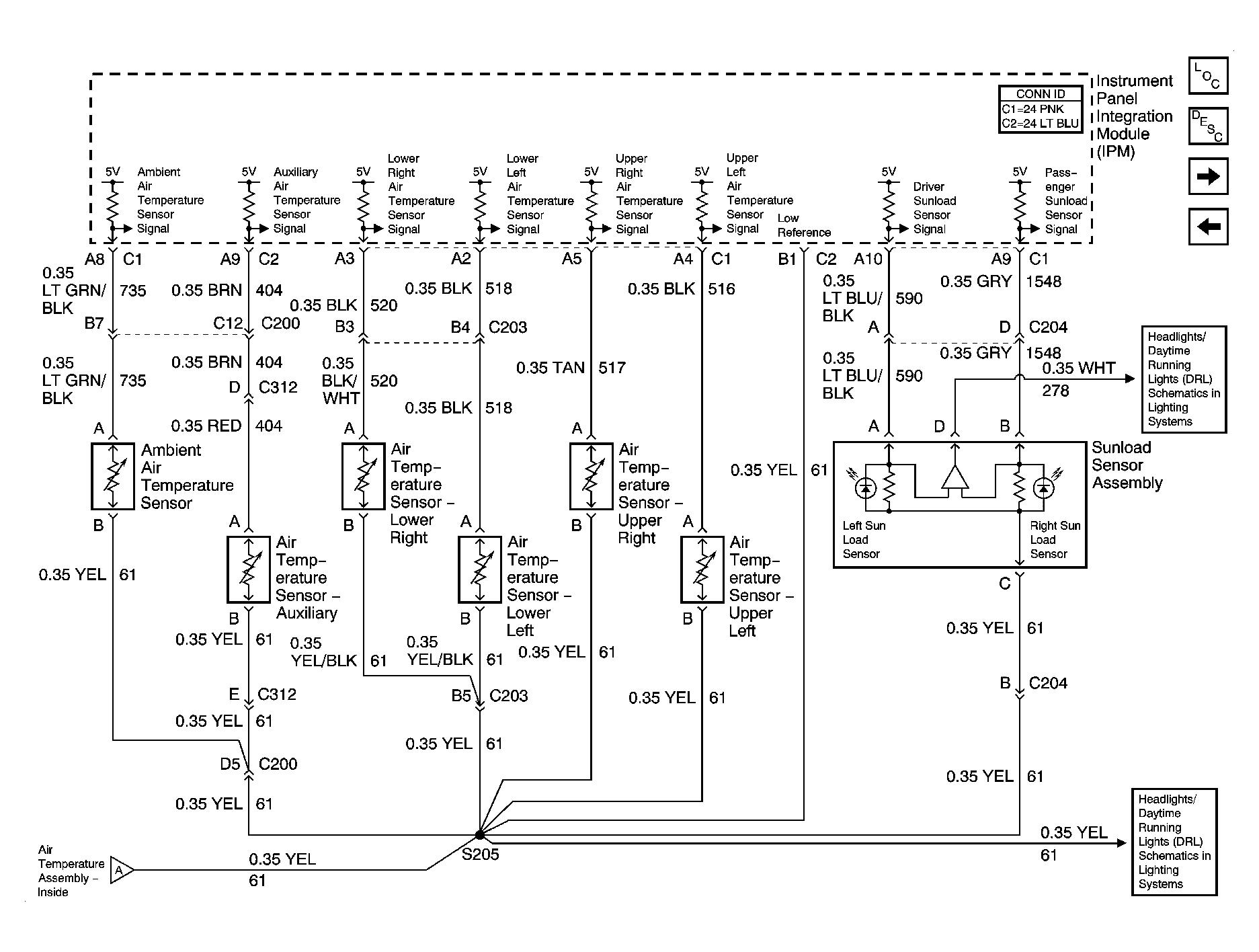

Fig 6: Temperature Sensors Schematic

Courtesy of GENERAL MOTORS CORP.

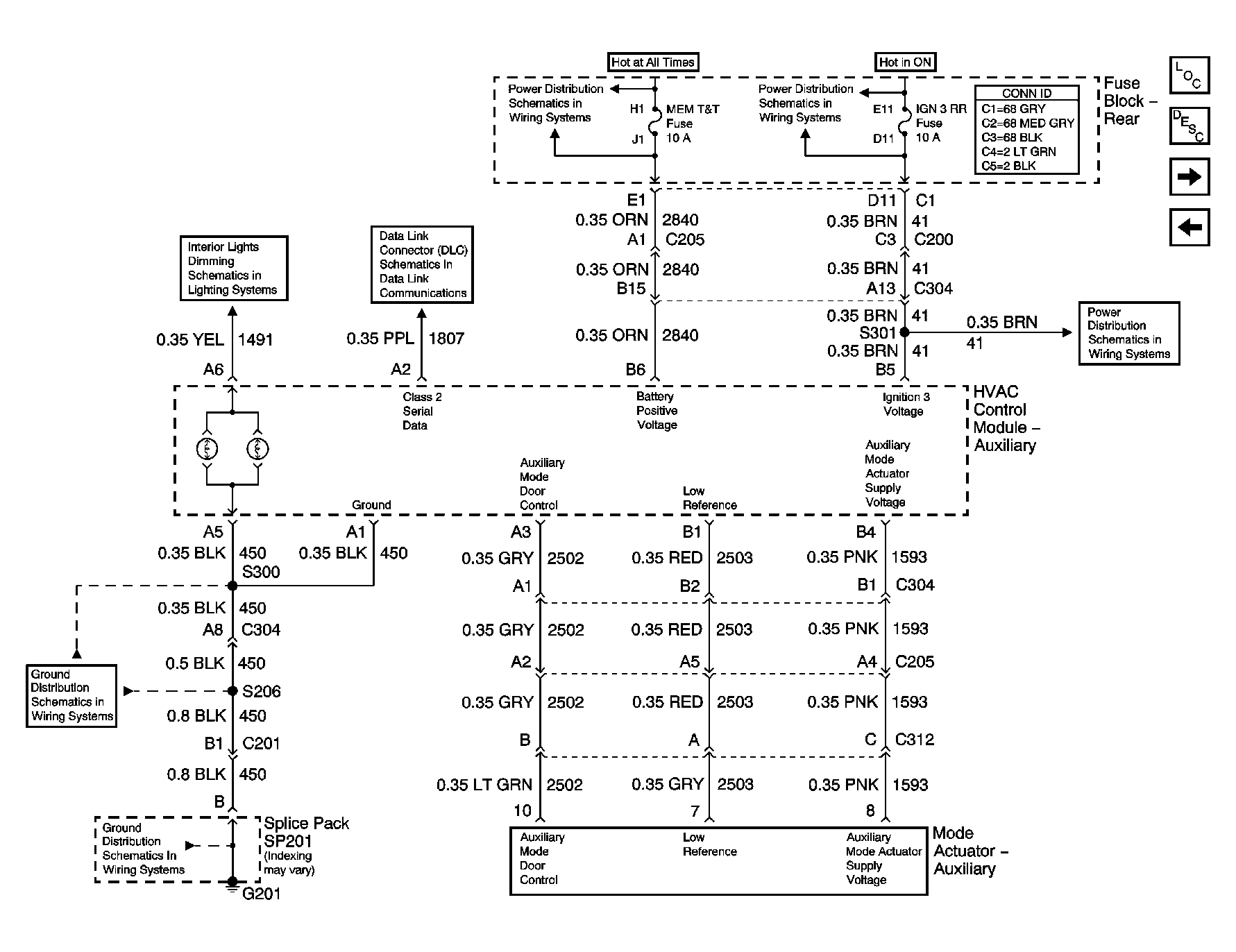

Fig 7: Rear Actuator-DeVille/DHS Schematic

Courtesy of GENERAL MOTORS CORP.

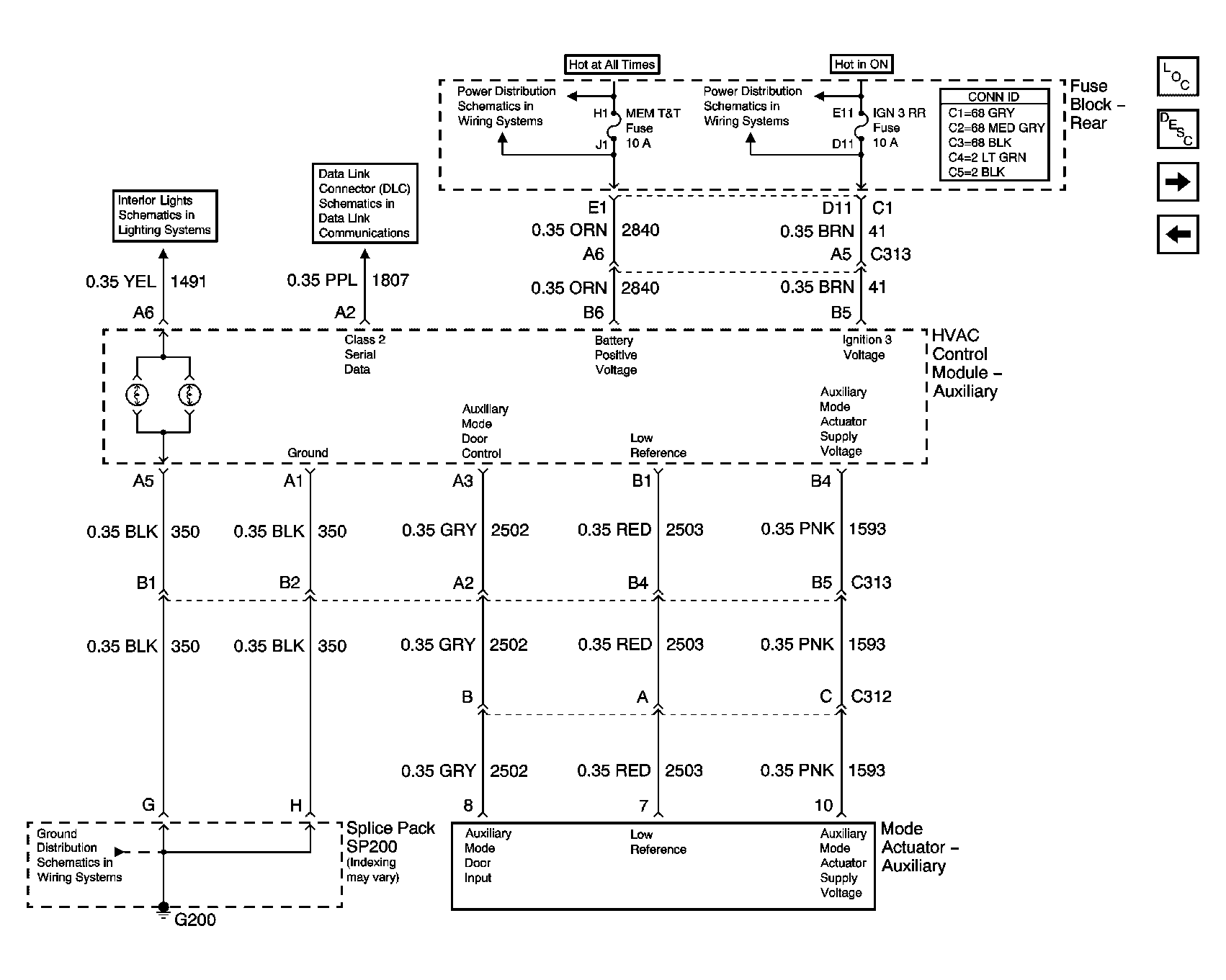

Fig 8: Rear Actuator-DTS Schematic

Courtesy of GENERAL MOTORS CORP.

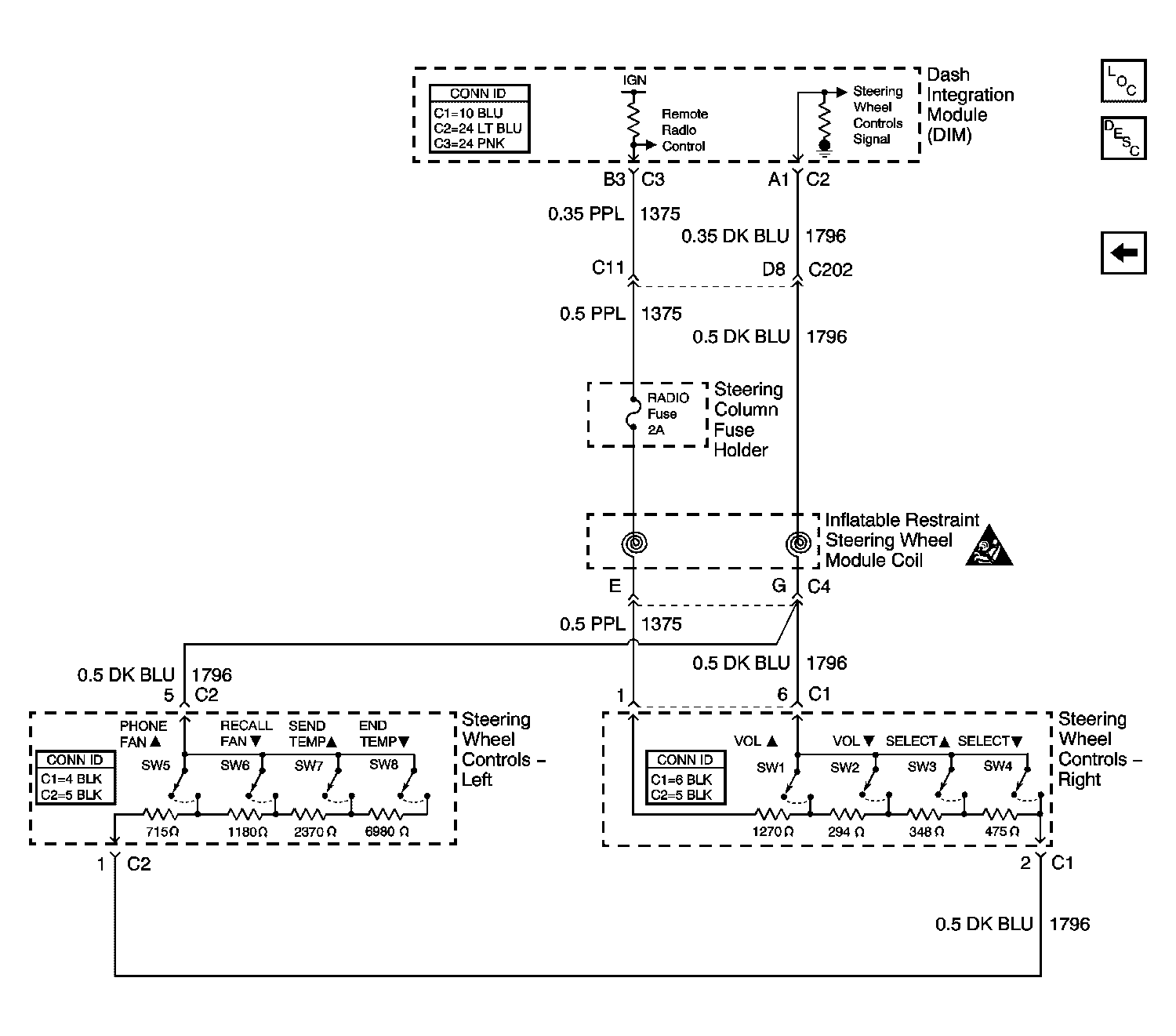

Fig 9: Steering Wheel Controls Schematic

Courtesy of GENERAL MOTORS CORP.
