Engine Cooling Schematics

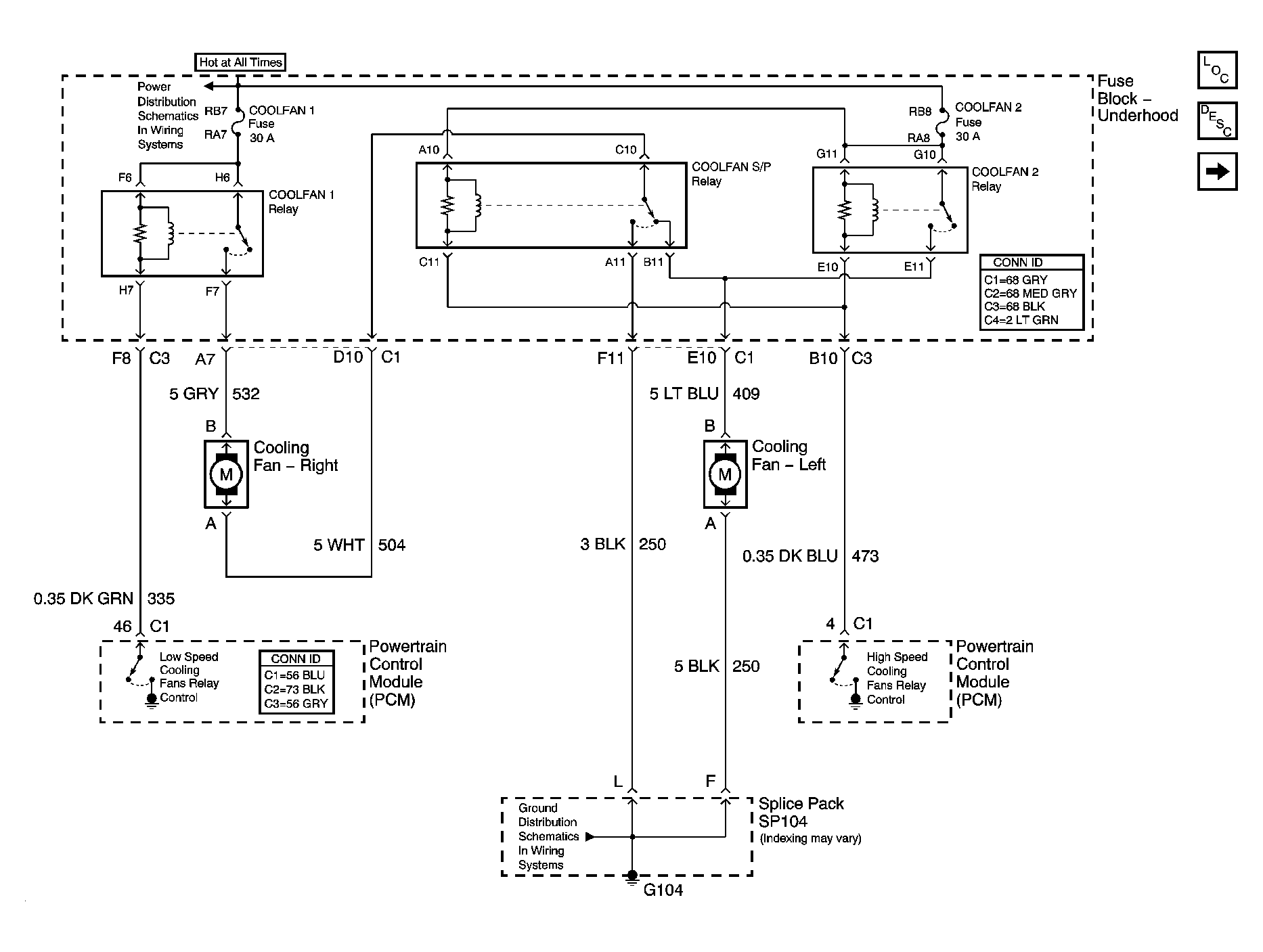

Fig 1: Cooling Fans Schematic

GM1217826

Courtesy of GENERAL MOTORS CORP.

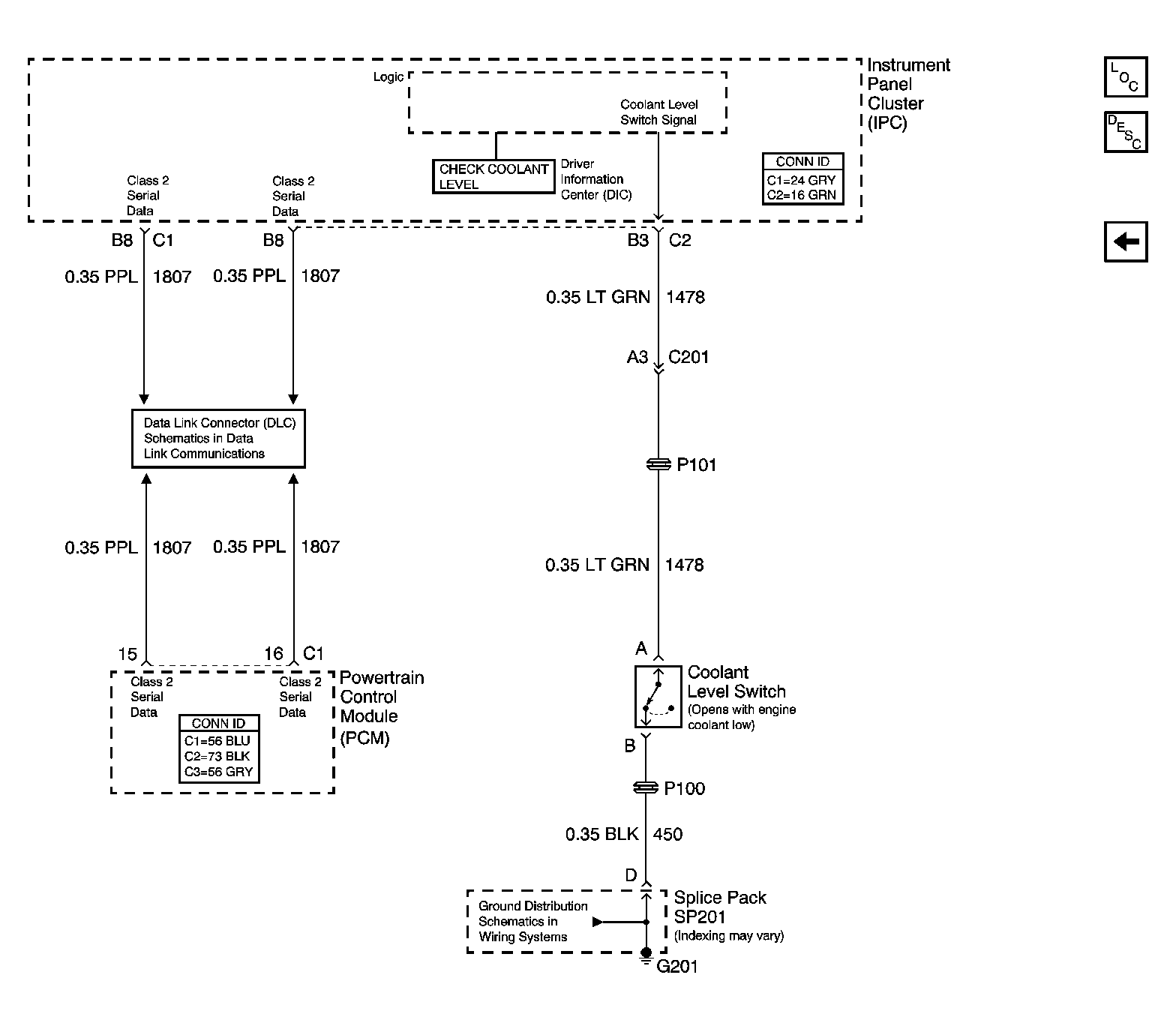

Fig 2: Coolant Level Switch Schematic

GM1217827

Courtesy of GENERAL MOTORS CORP.
