Driver Seat Schematics

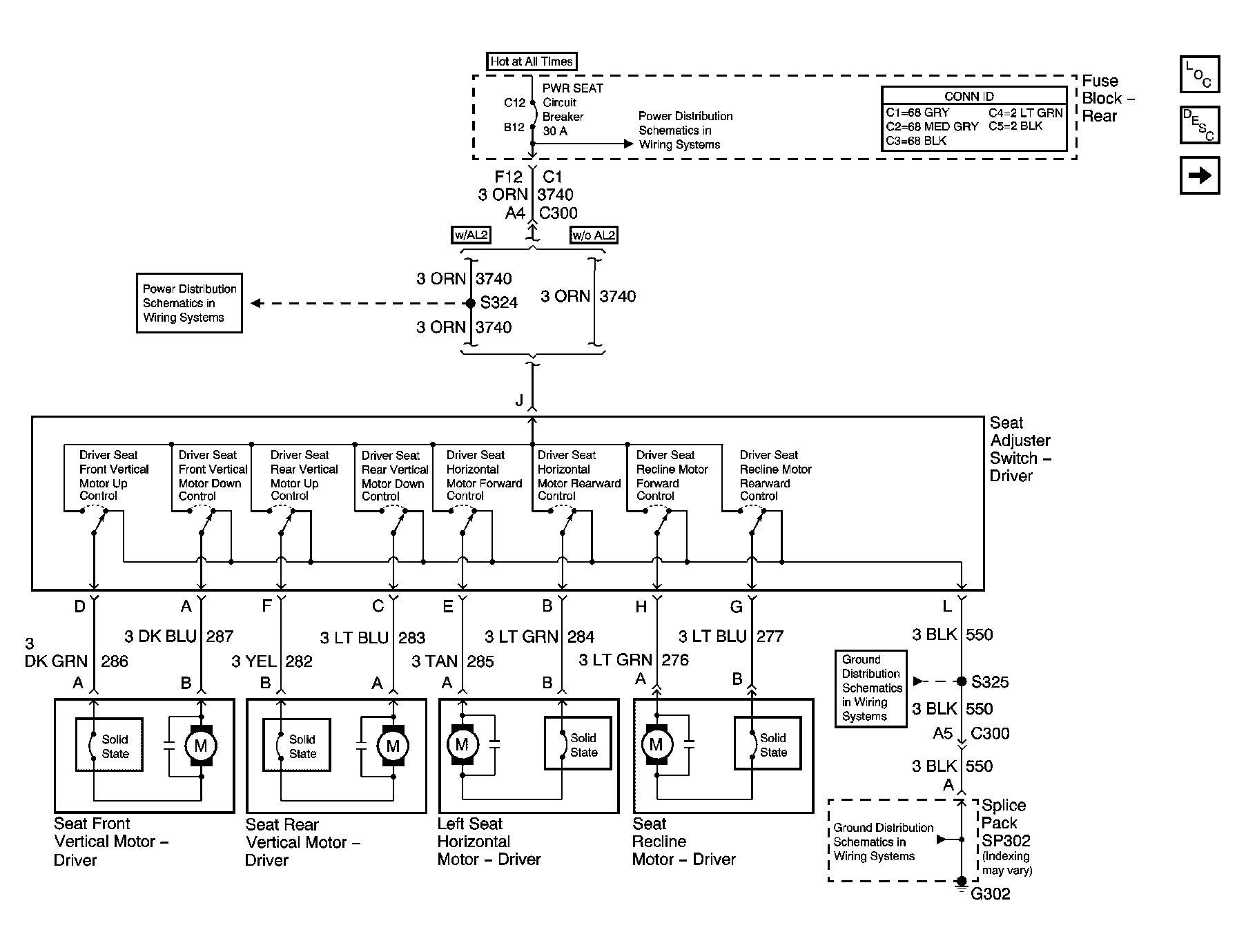

Fig 1: Power Seat Schematic

Courtesy of GENERAL MOTORS CORP.

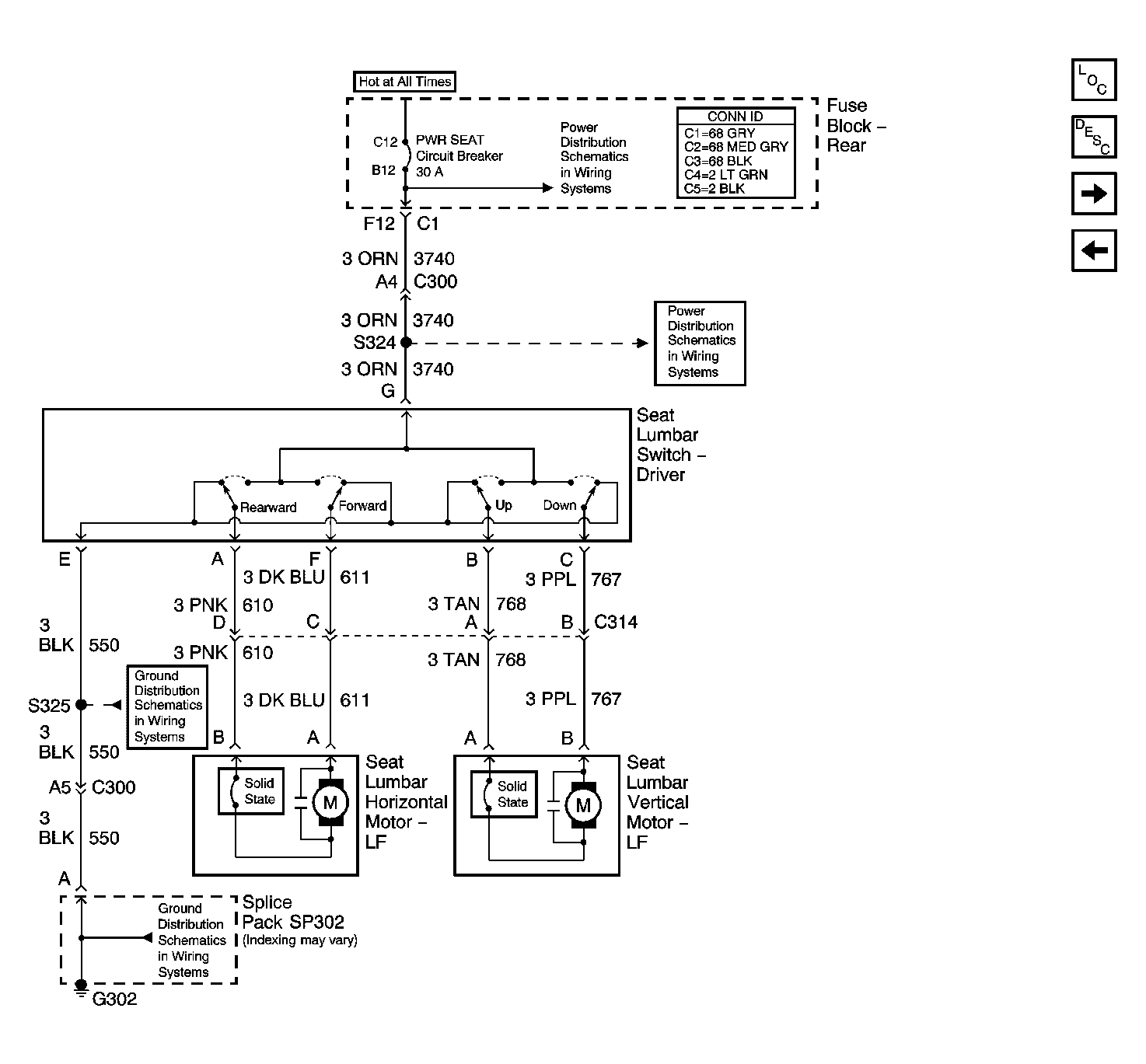

Fig 2: Power Lumbar Seat Schematic

Courtesy of GENERAL MOTORS CORP.

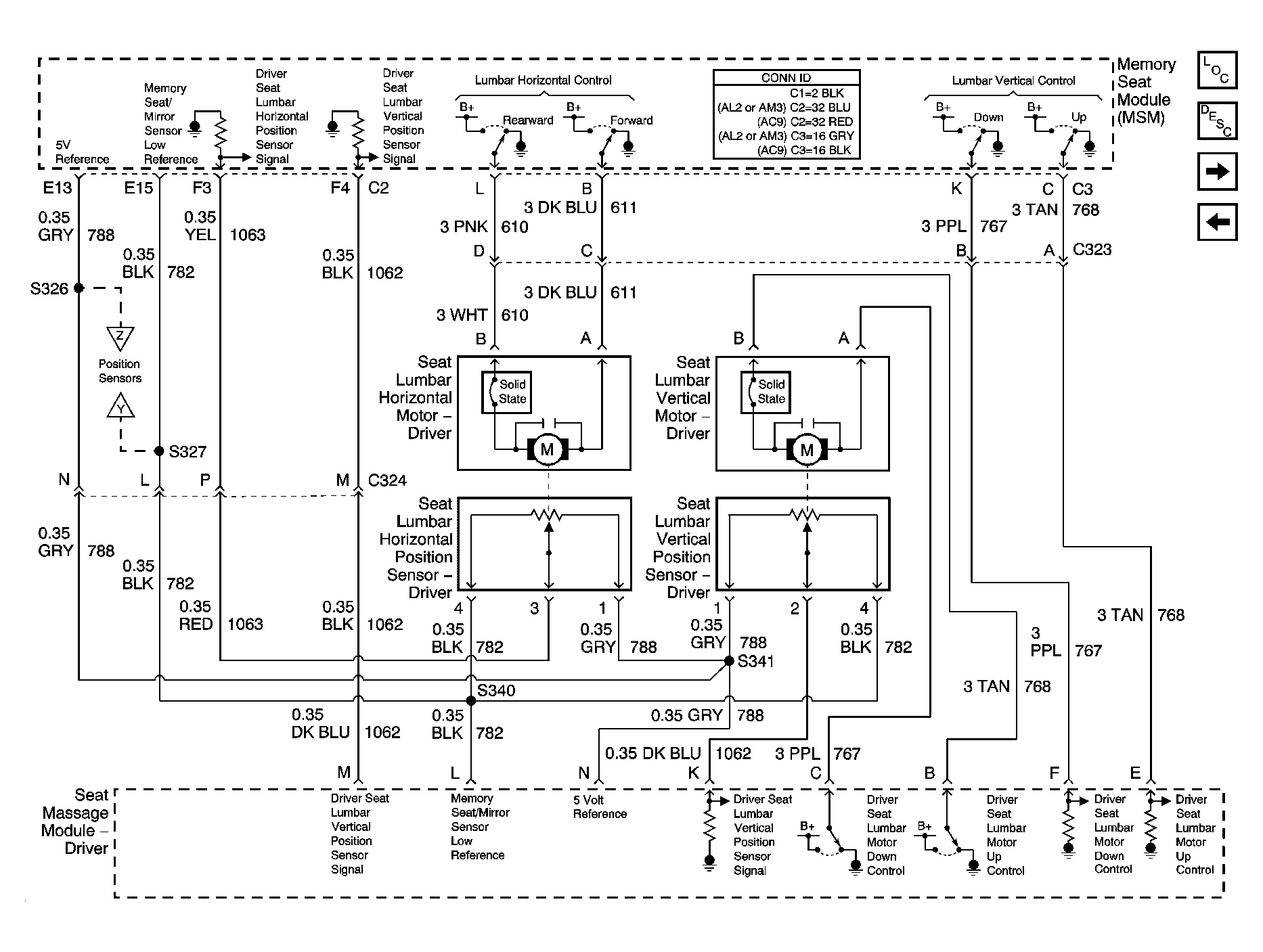

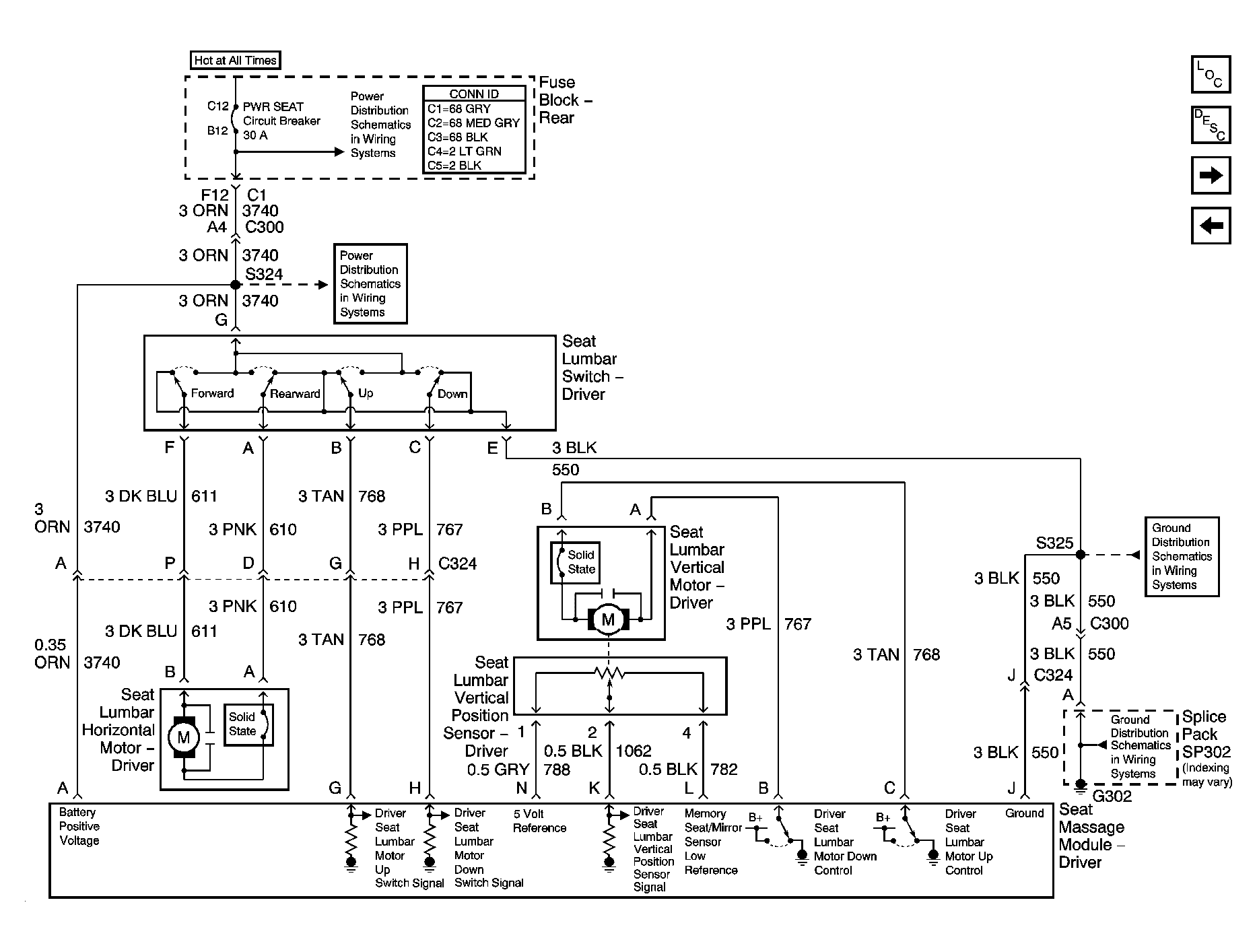

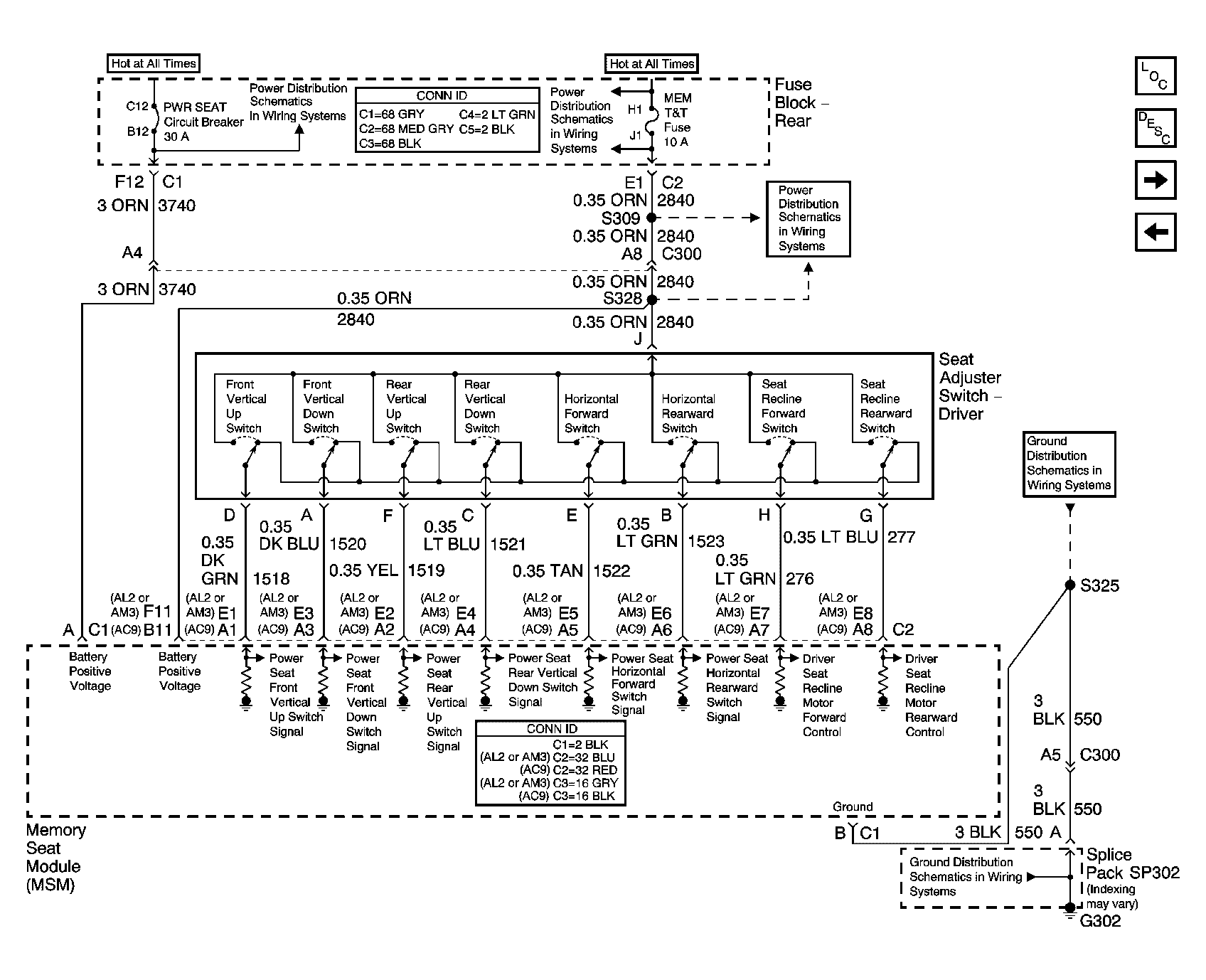

Fig 3: Massaging Lumbar Seat Schematic (w/AC9)

Courtesy of GENERAL MOTORS CORP.

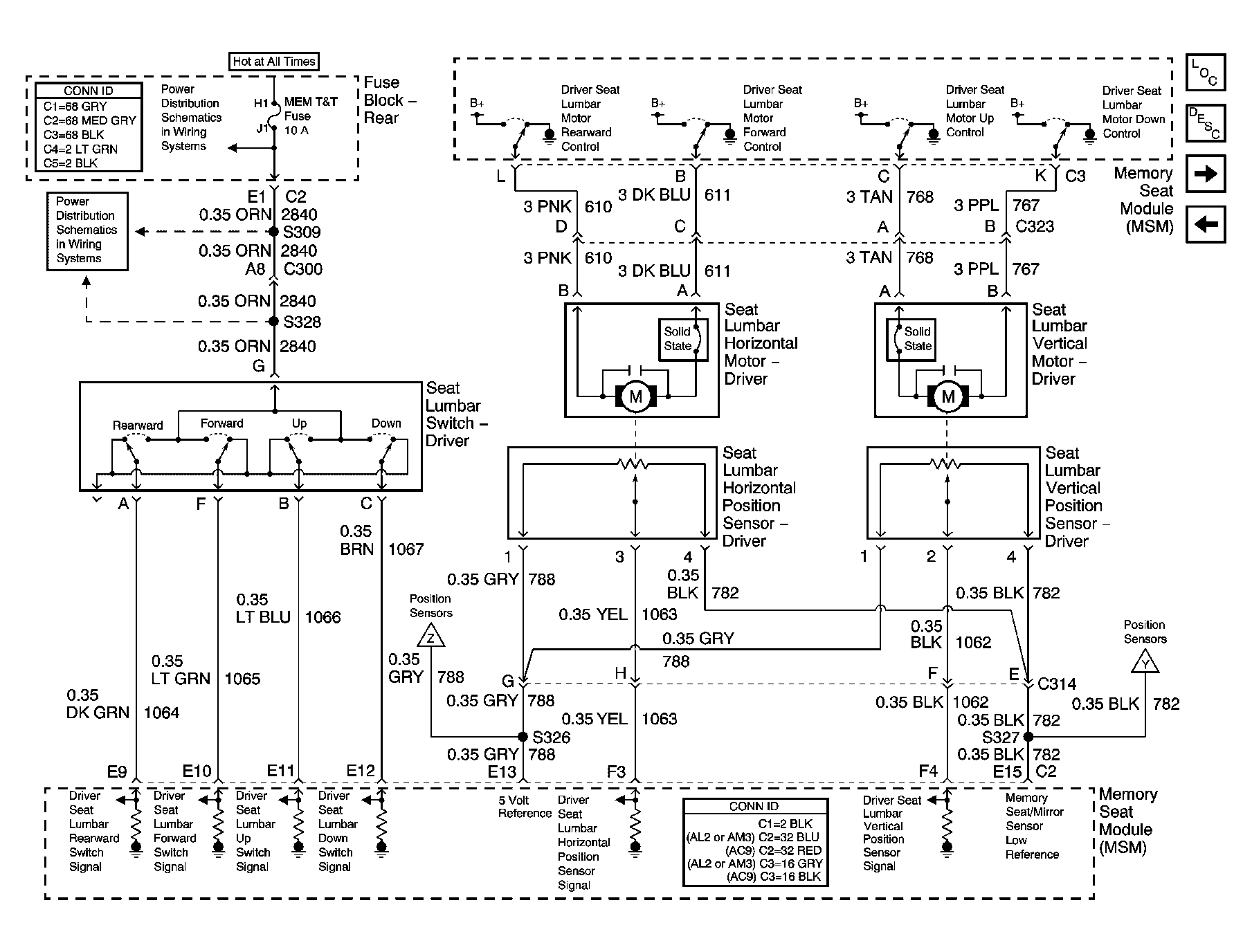

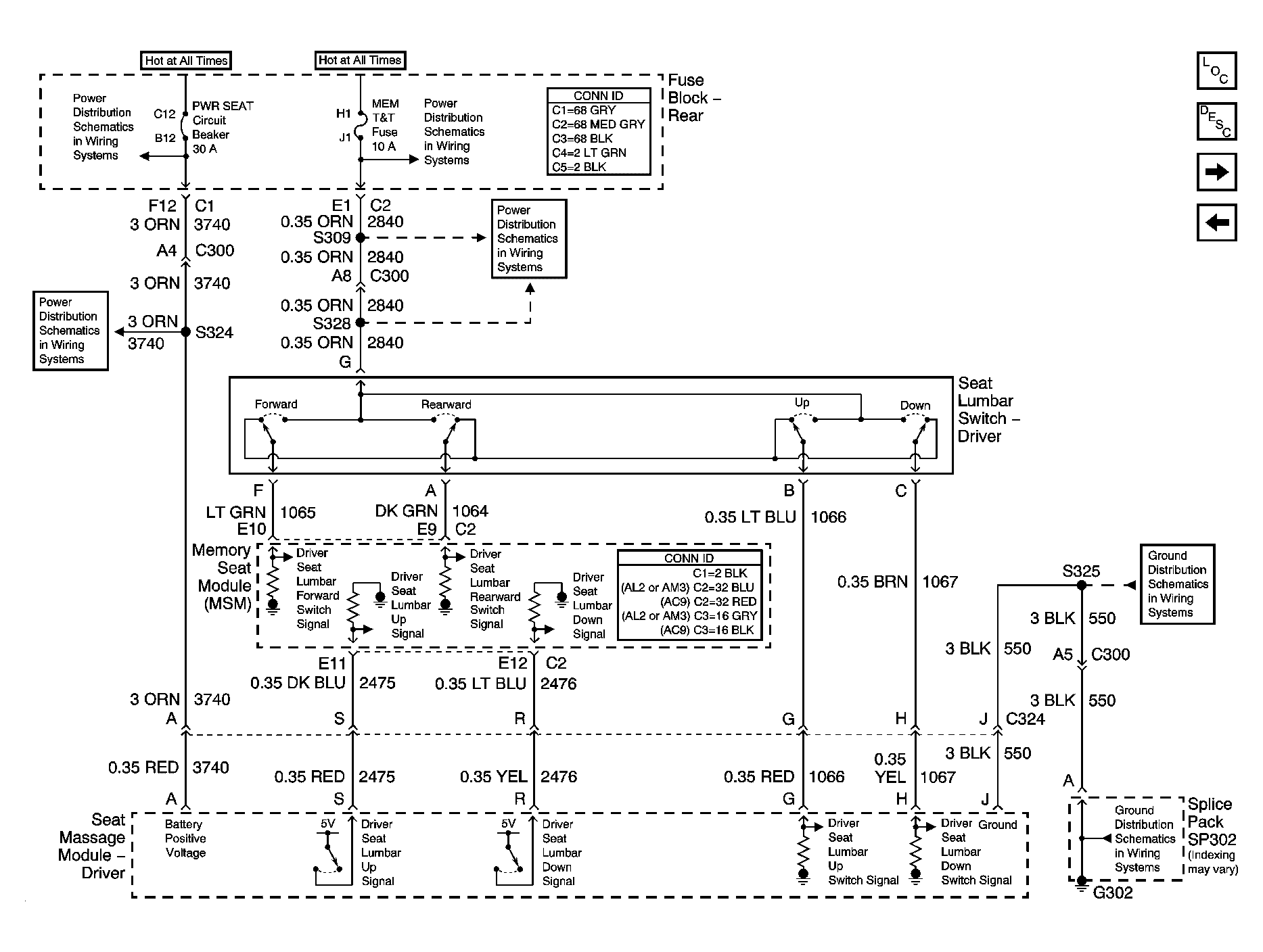

Fig 4: Memory Lumbar Seat Schematic (w/A45/AL2)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Seat Switch w/ Memory Massaging Lumbar Schematic (w/A45,AM3)

Courtesy of GENERAL MOTORS CORP.

Fig 6: Position Sensors w/ Memory Massaging Lumbar Schematic (w/A45,AM3)

Courtesy of GENERAL MOTORS CORP.

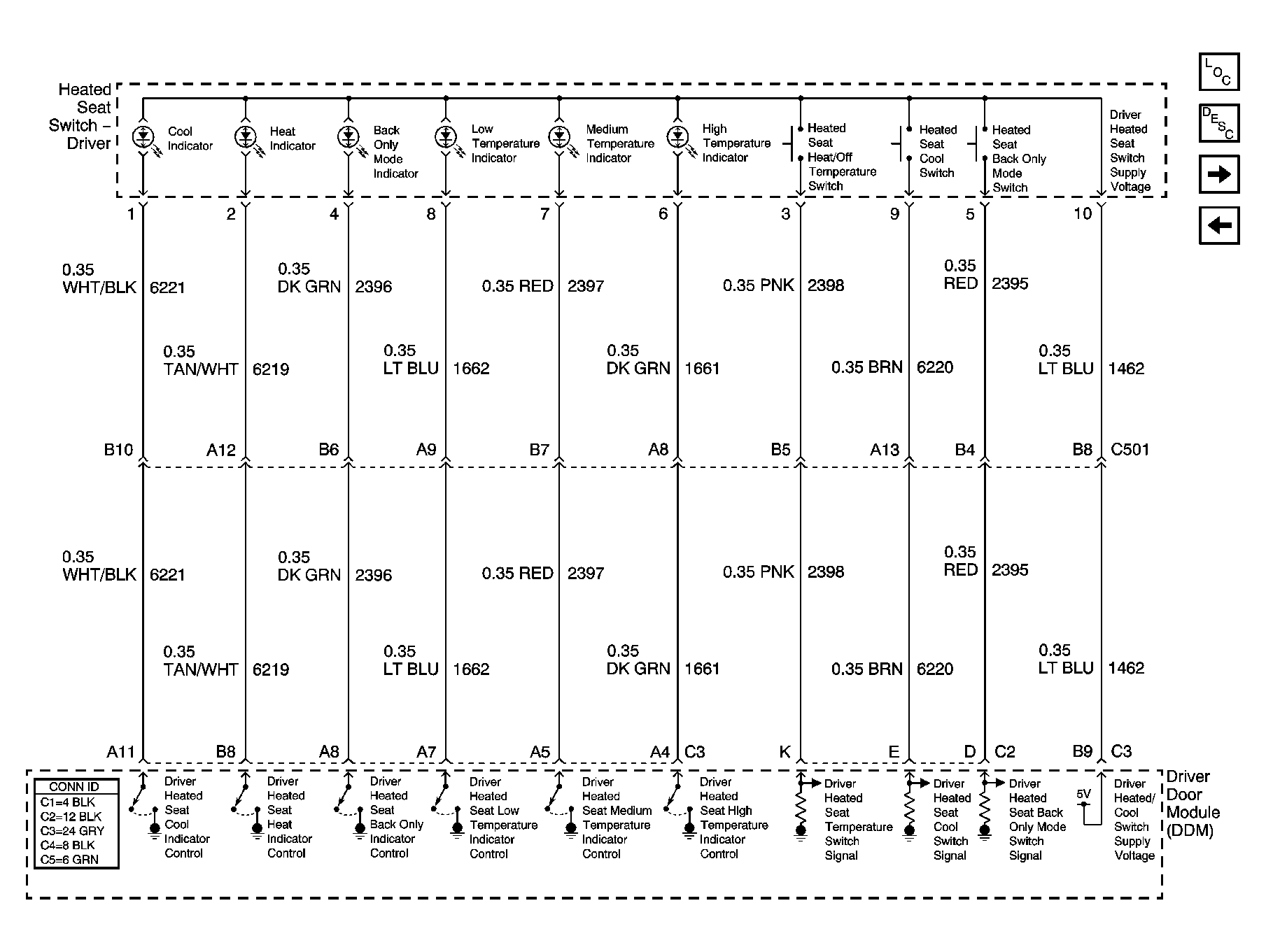

Fig 7: Heated Seat Switch Schematic (w/ KA1)

Courtesy of GENERAL MOTORS CORP.

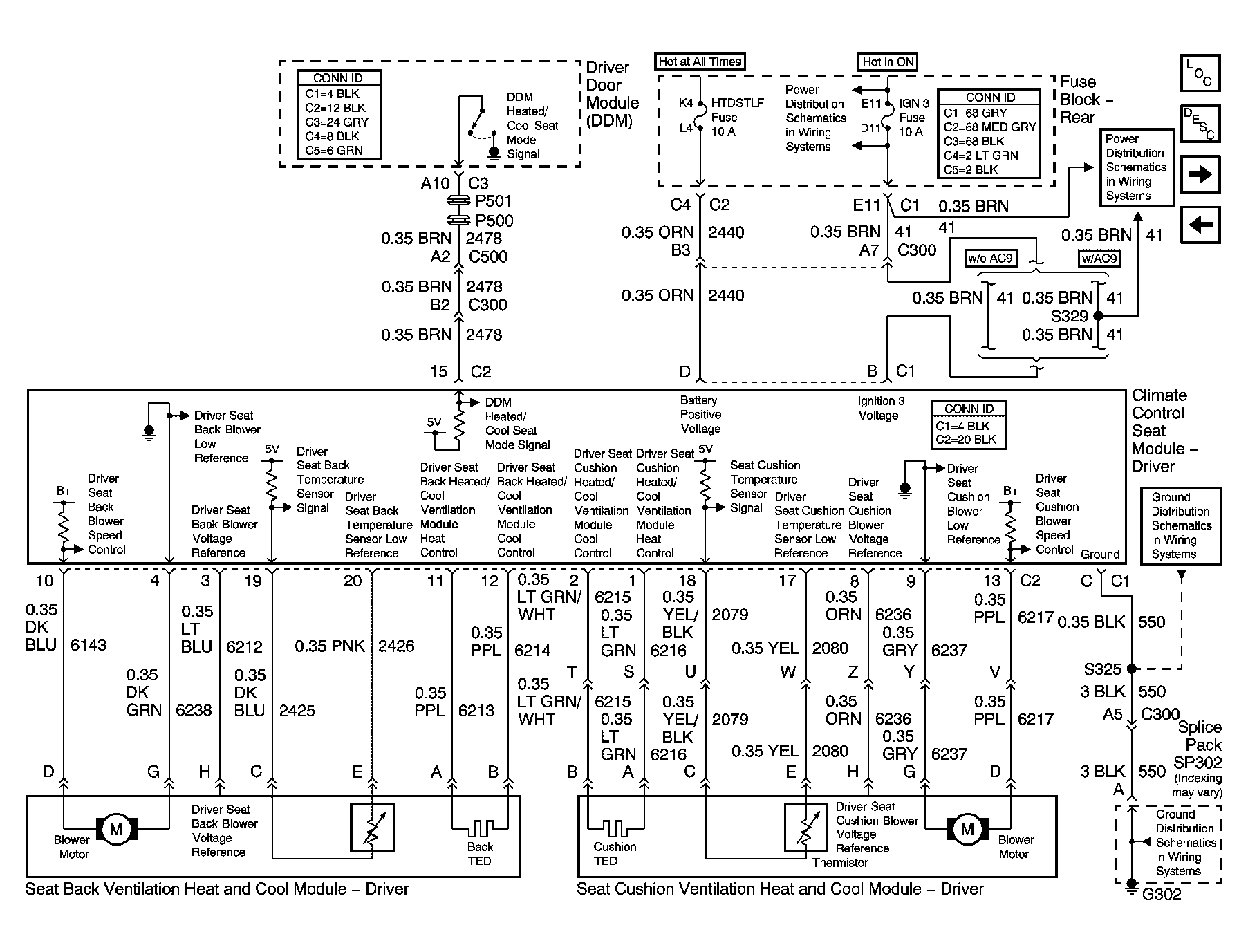

Fig 8: Climate Control Seat Module Schematic (w/KA1)

Courtesy of GENERAL MOTORS CORP.

Fig 9: Power and Ground Schematic (w/A45)

Courtesy of GENERAL MOTORS CORP.

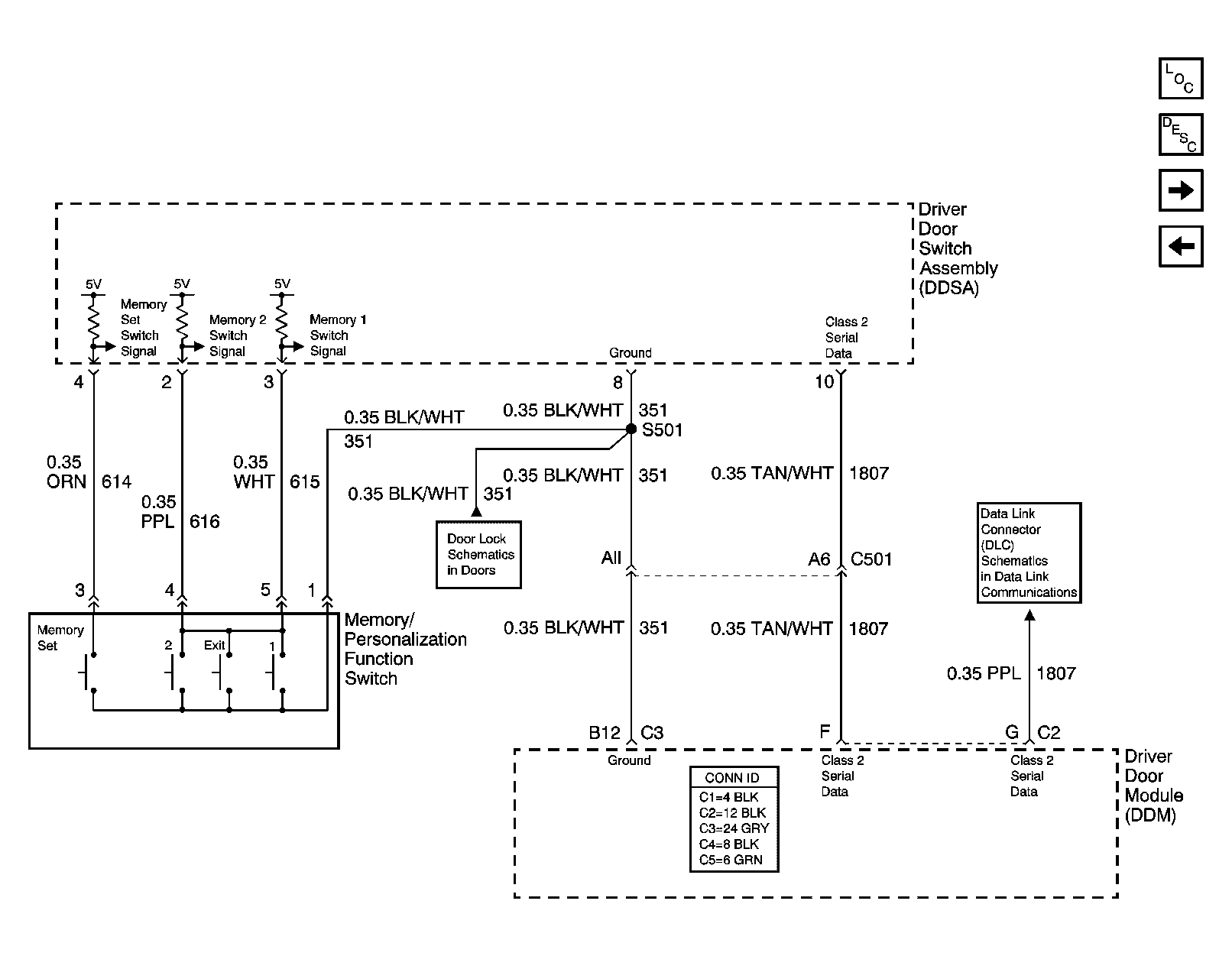

Fig 10: Memory/Personalization Function Switch Schematic (w/A45)

Courtesy of GENERAL MOTORS CORP.

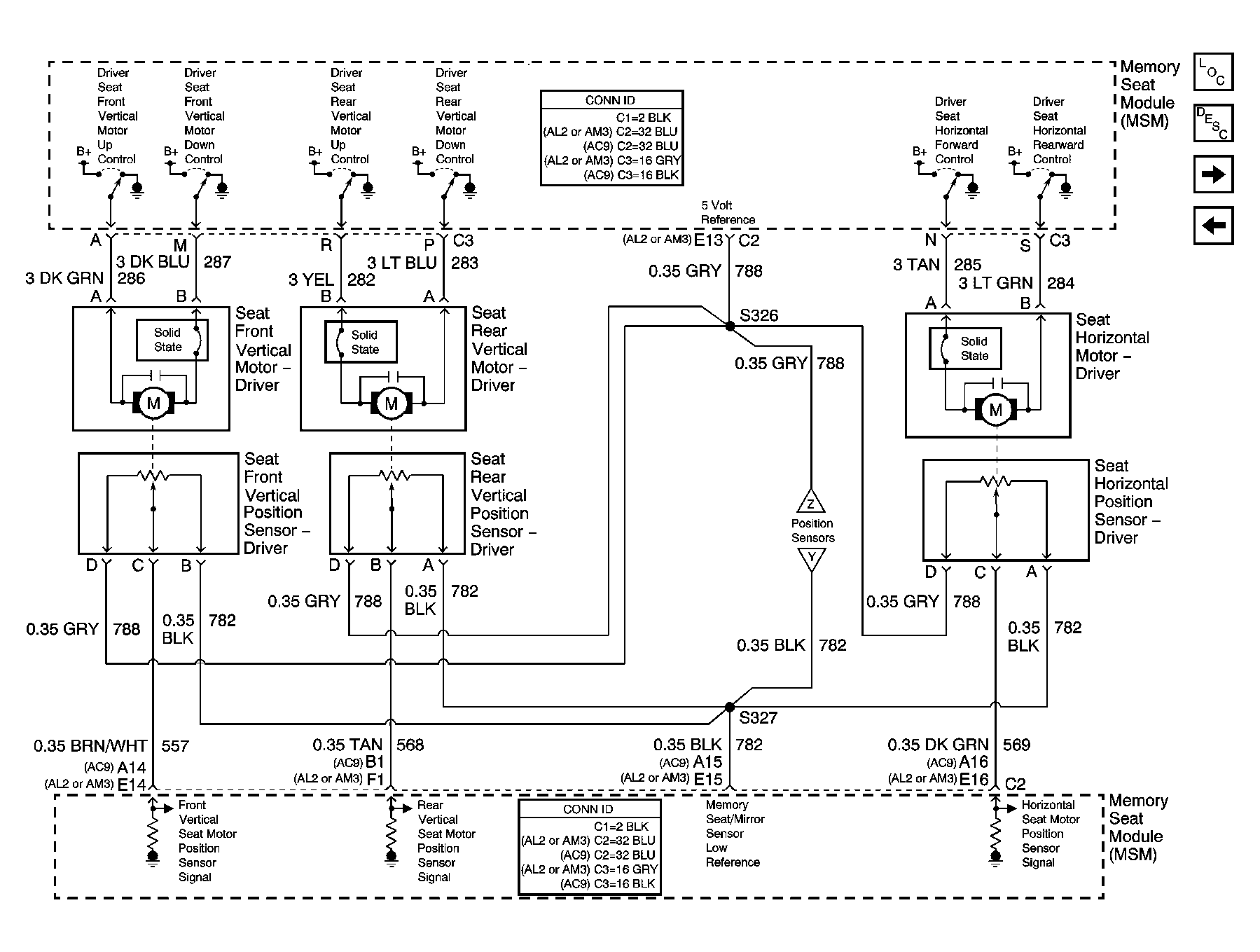

Fig 11: Vertical and Horizontal Position Sensors Schematic (w/A45)

Courtesy of GENERAL MOTORS CORP.

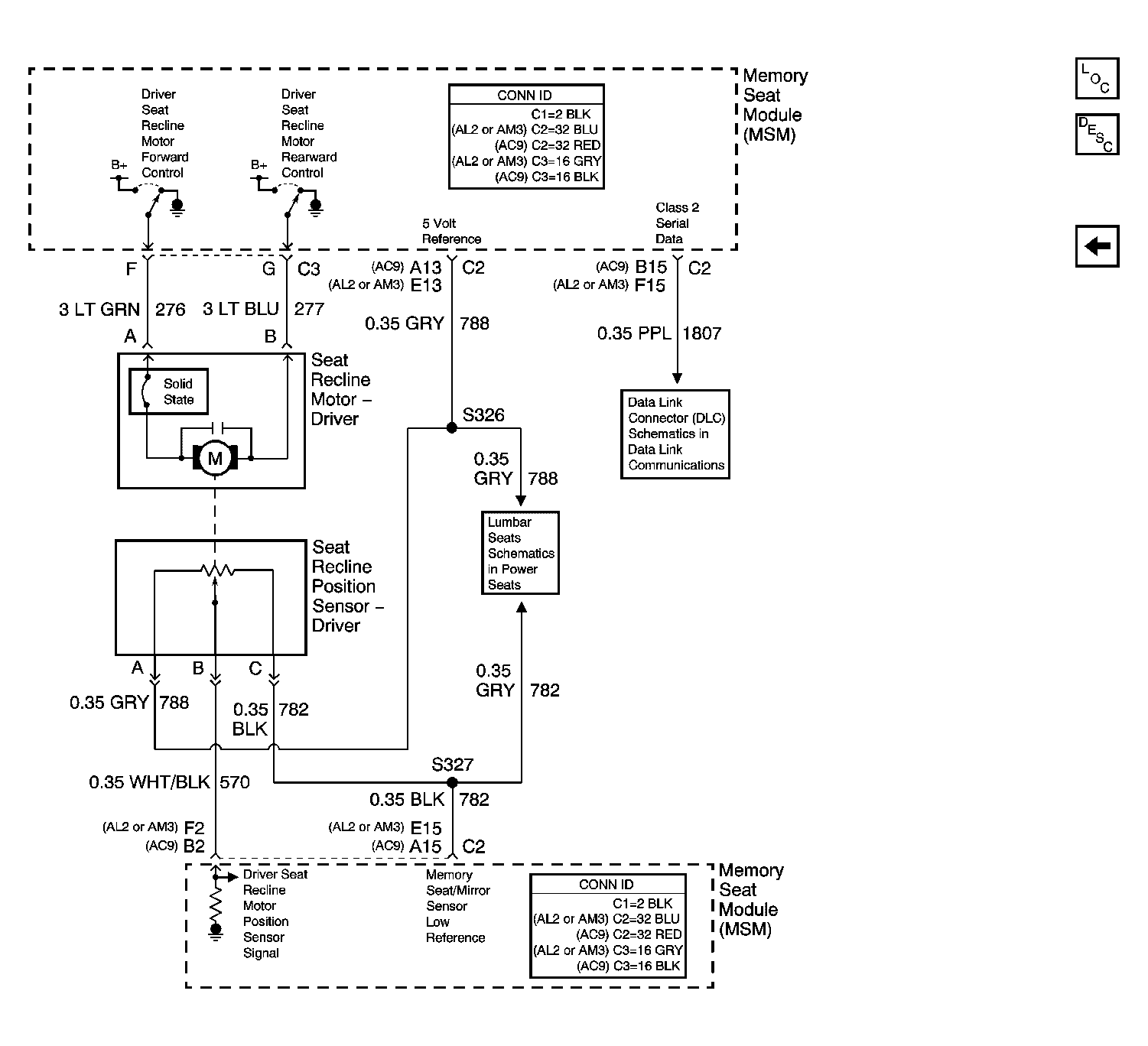

Fig 12: Recline Position Sensors and Class 2 Schematic (w/A45)

Courtesy of GENERAL MOTORS CORP.
