Theft Deterrent System Schematics

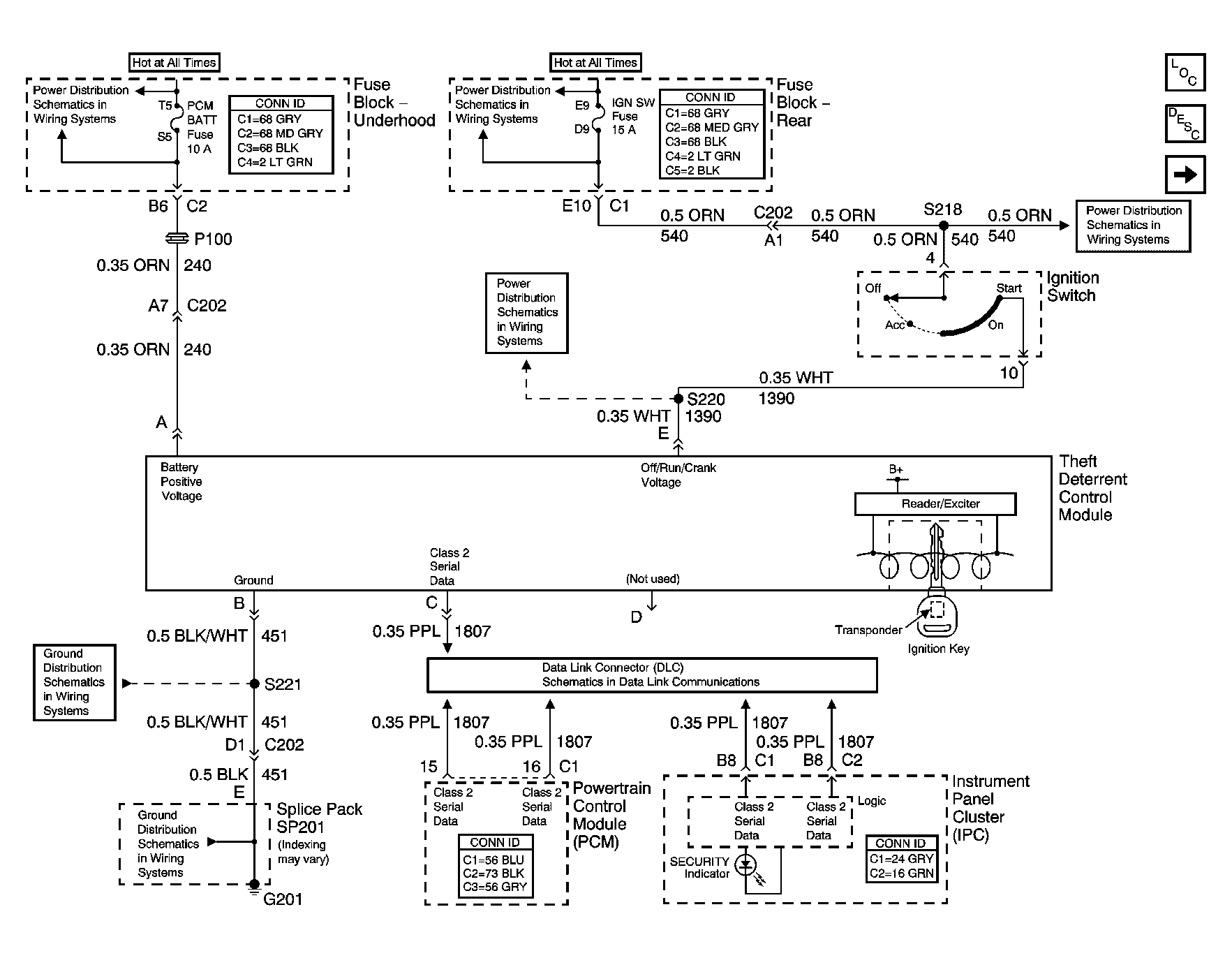

Fig 1: Vehicle Theft Deterrent (VTD) System Schematic
GM1232668Courtesy of GENERAL MOTORS CORP.

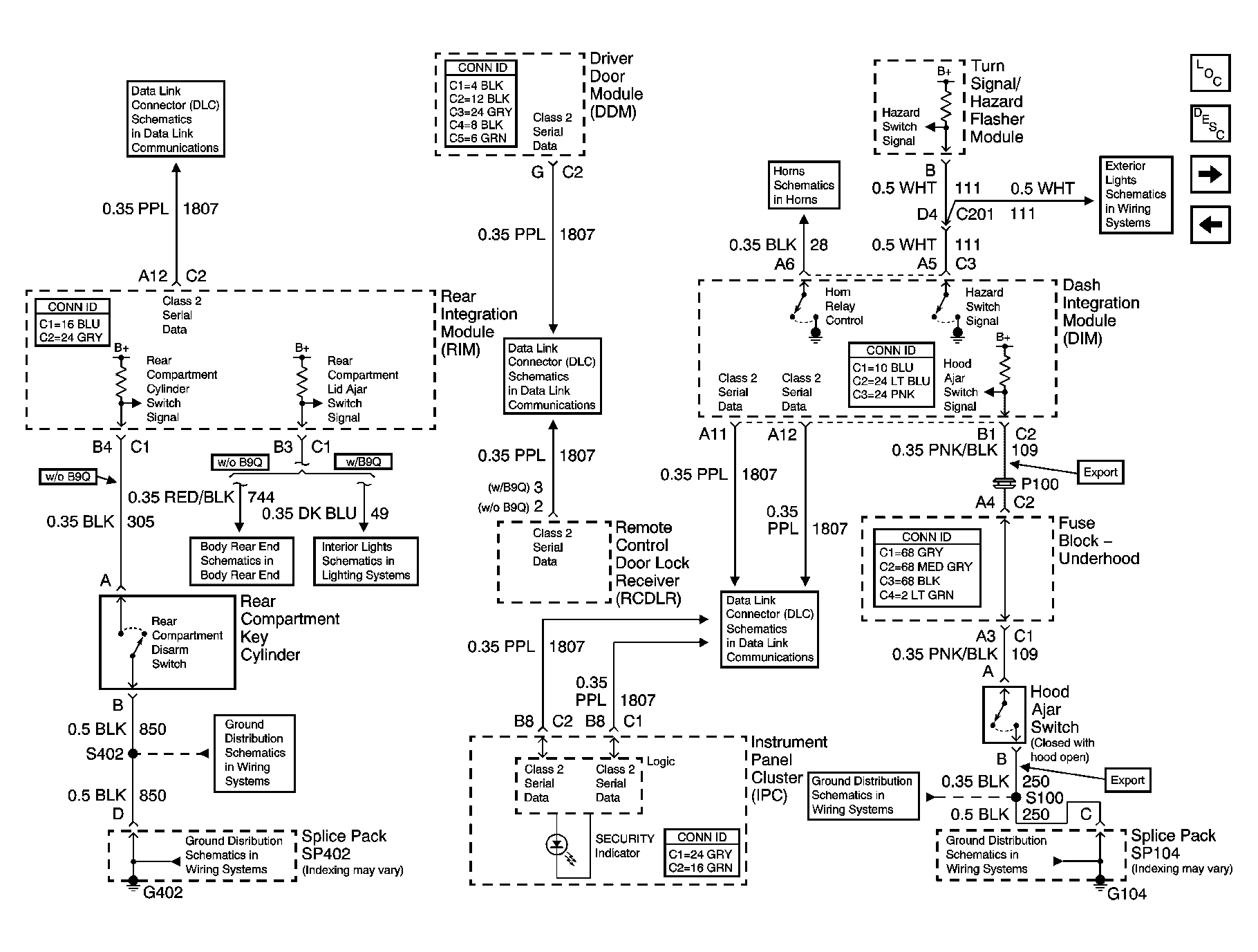

Fig 2: Content Theft Deterrent (CTD) System Inputs and Outputs Schematic
GM808773Courtesy of GENERAL MOTORS CORP.

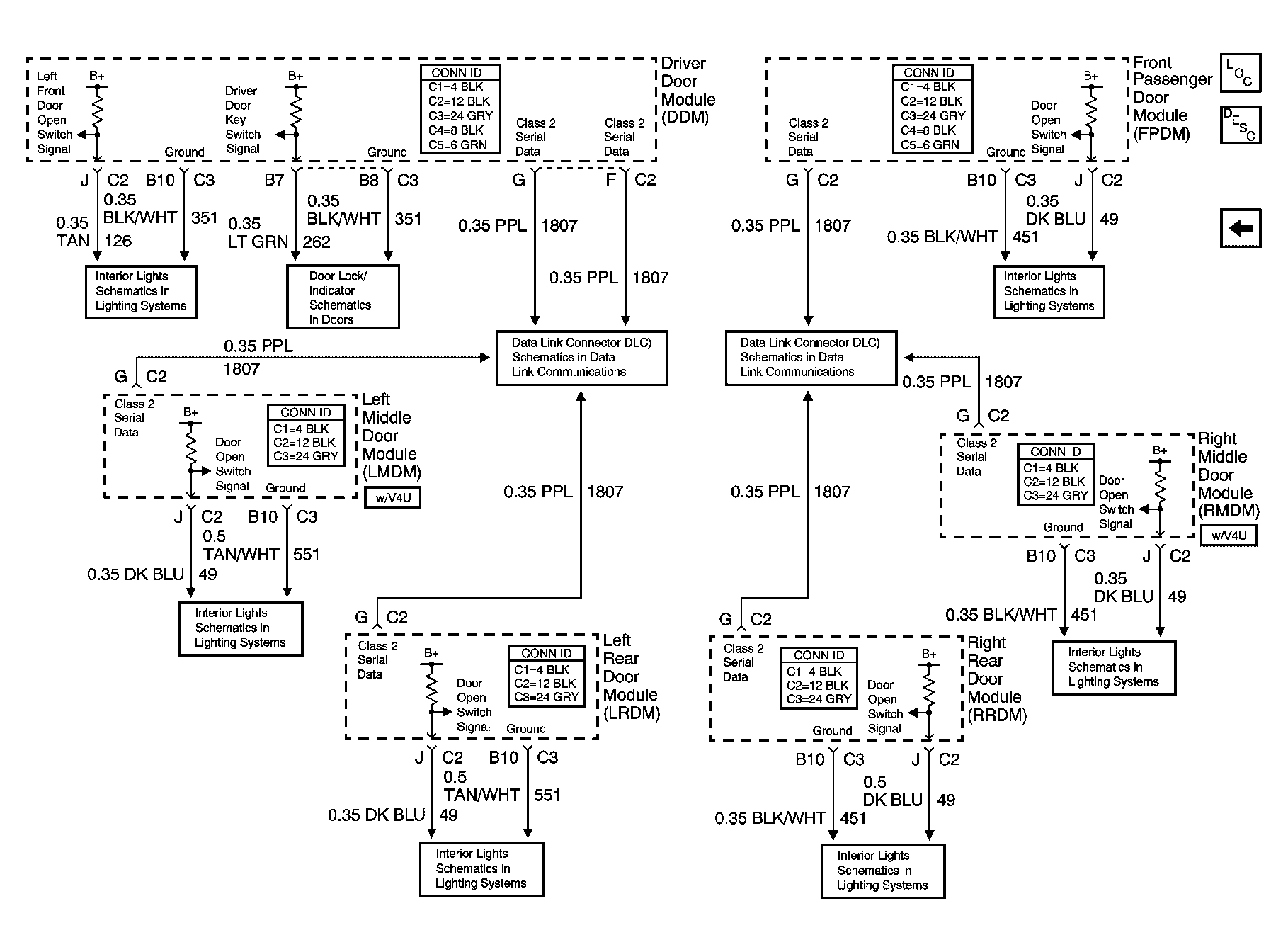

Fig 3: Content Theft Deterrent (CTD) System Door Inputs Schematic
GM808775Courtesy of GENERAL MOTORS CORP.
