Wiper/Washer System Schematics

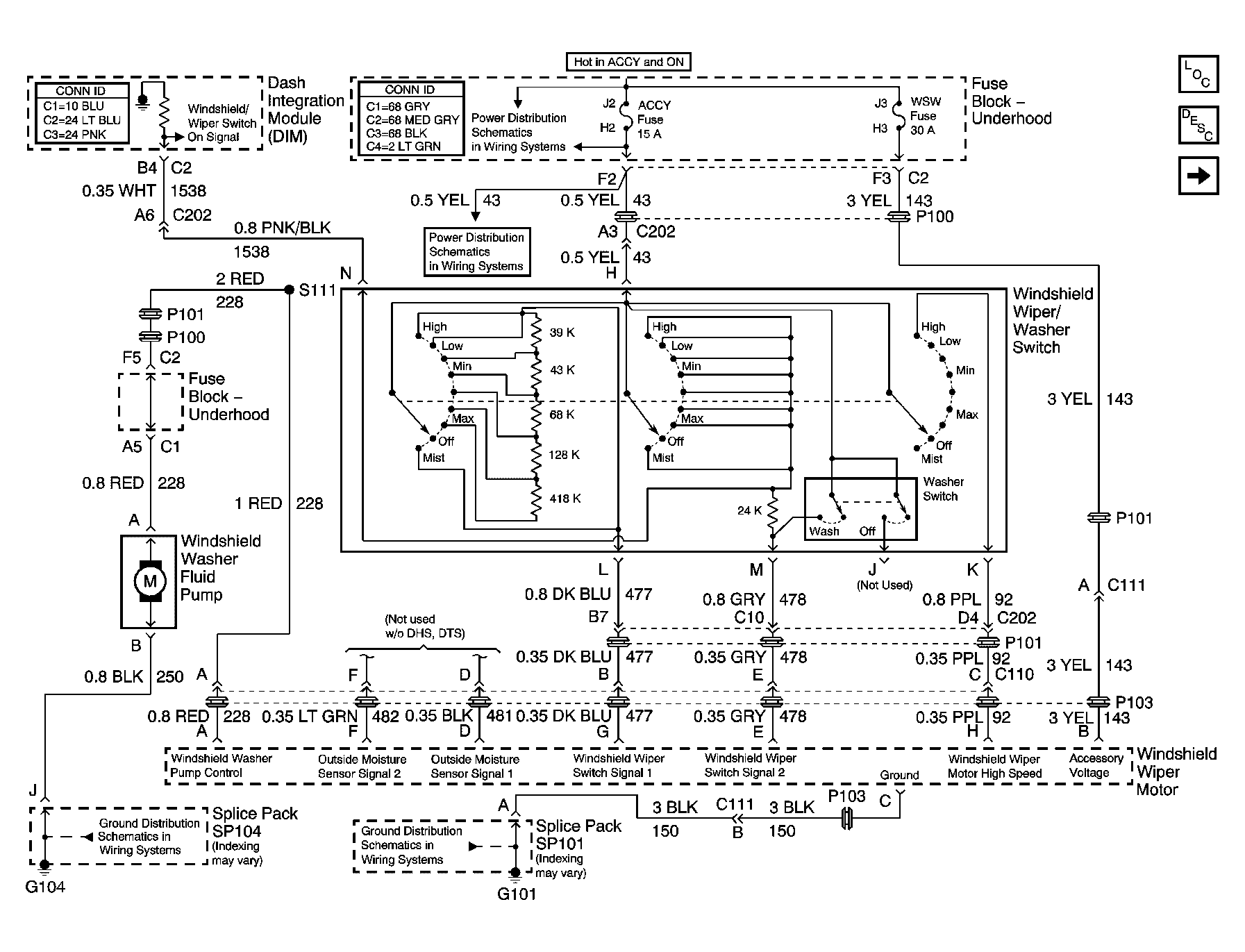

Fig 1: Wiper/Washer Switch and Pump Schematic
GM1370920Courtesy of GENERAL MOTORS CORP.

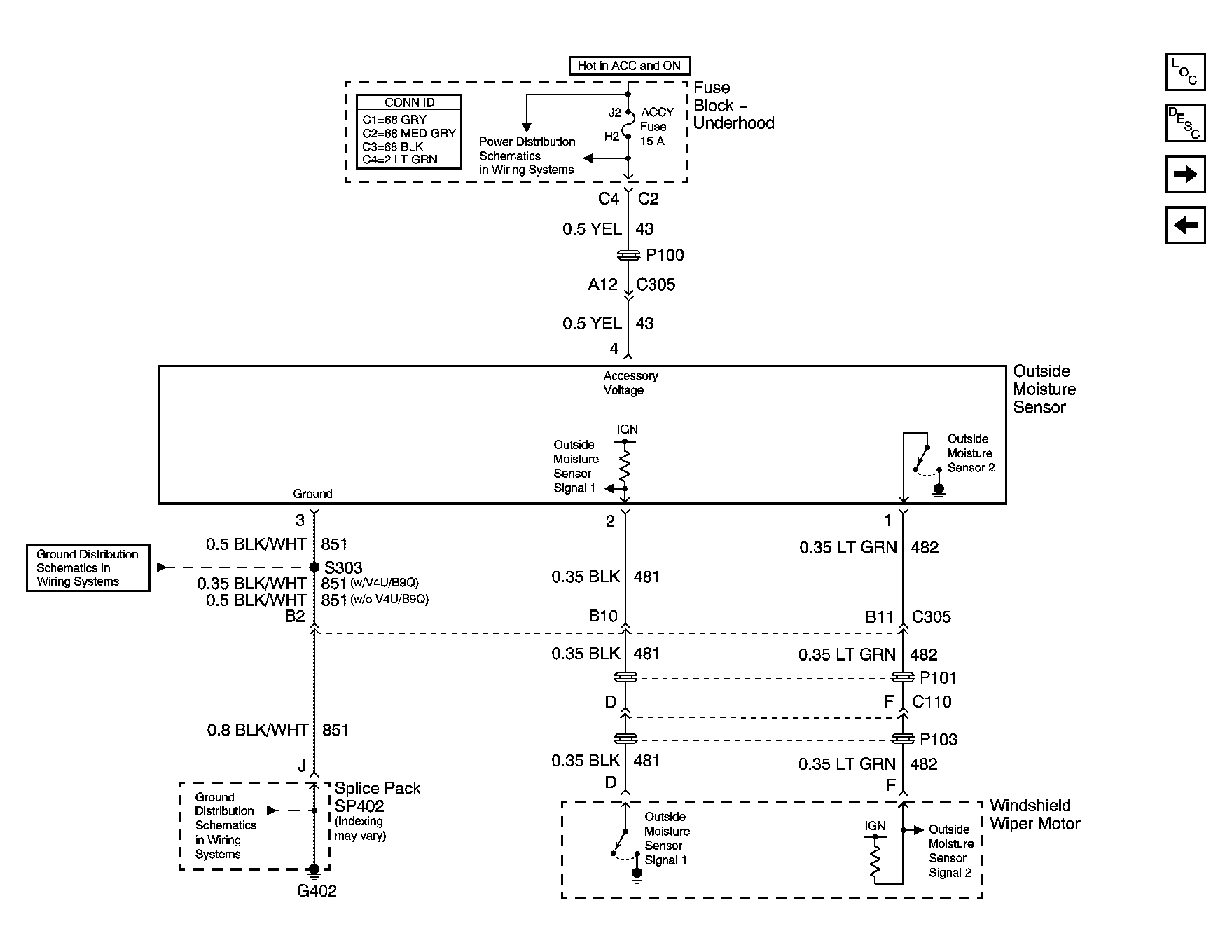

Fig 2: Outside Moisture Sensor Schematic
GM796093Courtesy of GENERAL MOTORS CORP.

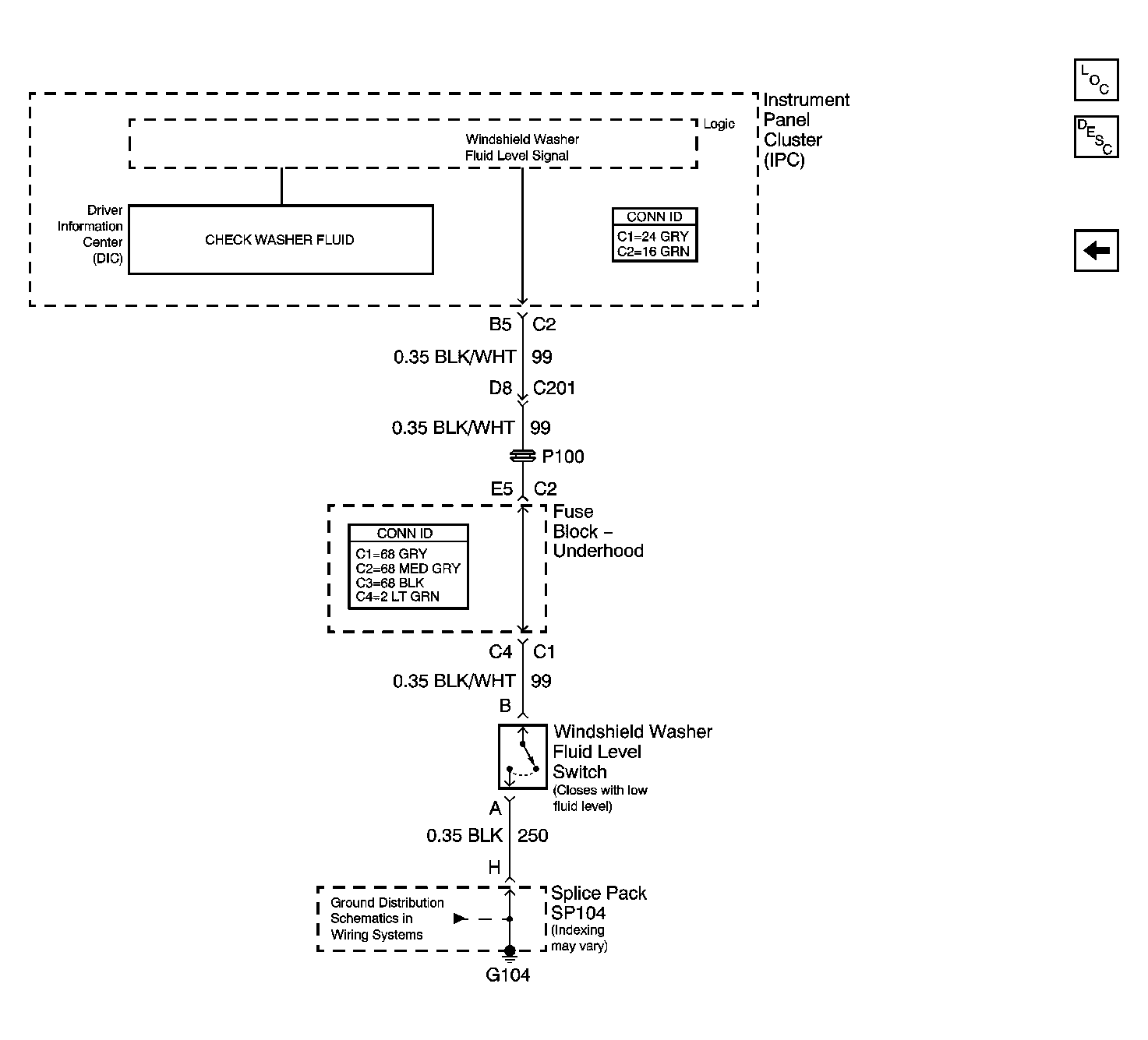

Fig 3: Windshield Washer Fluid Level Switch Schematic
GM796094Courtesy of GENERAL MOTORS CORP.
