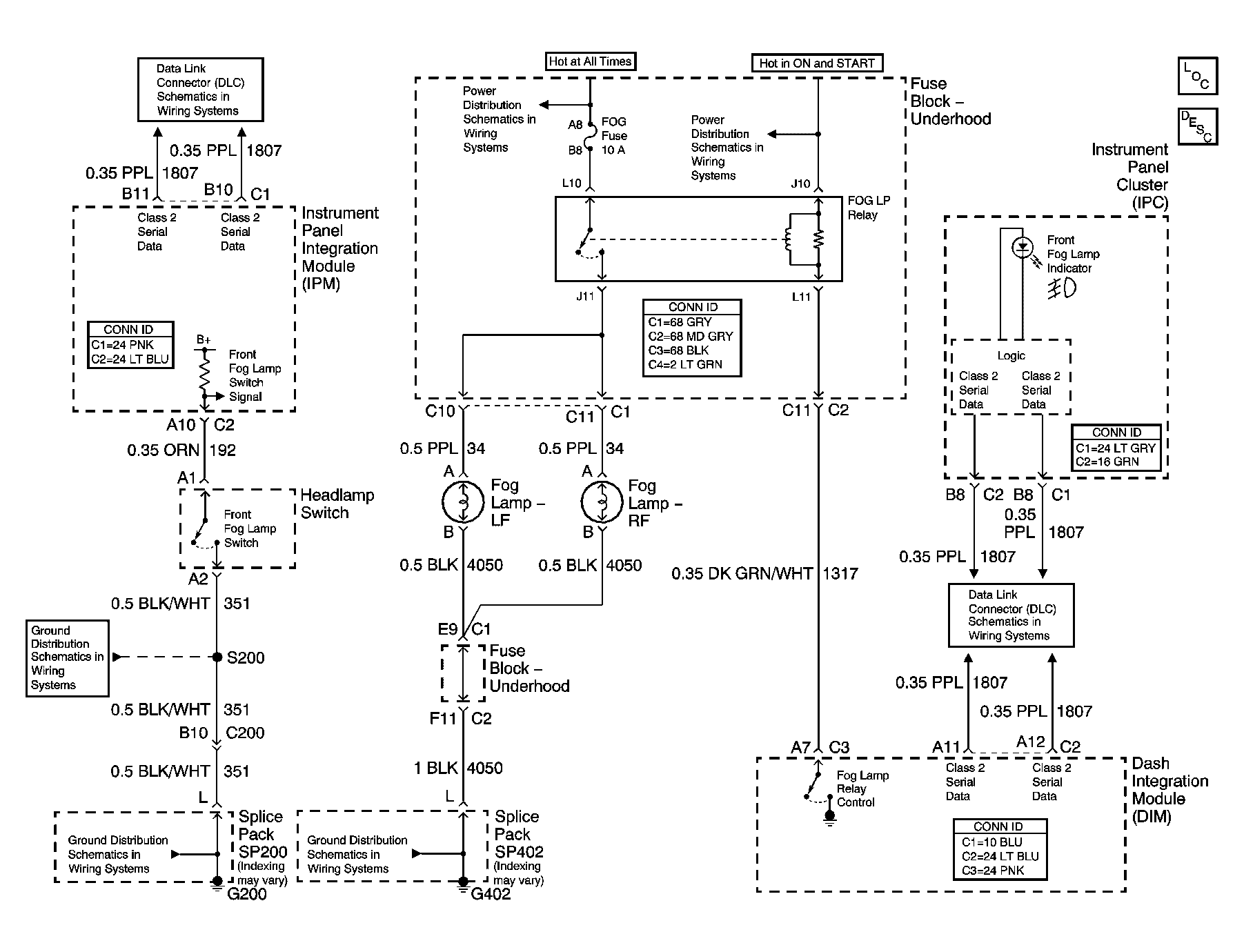

Home >> Cadillac >> 2004 >> DeVille Base >> Repair and Diagnosis >> Accessories & Equipment >> Interior/Illumination Lights >> Lighting Systems >> Schematic and Routing Diagrams >> Fog Lights Schematics
