Exterior Lights Schematics (w/V92)

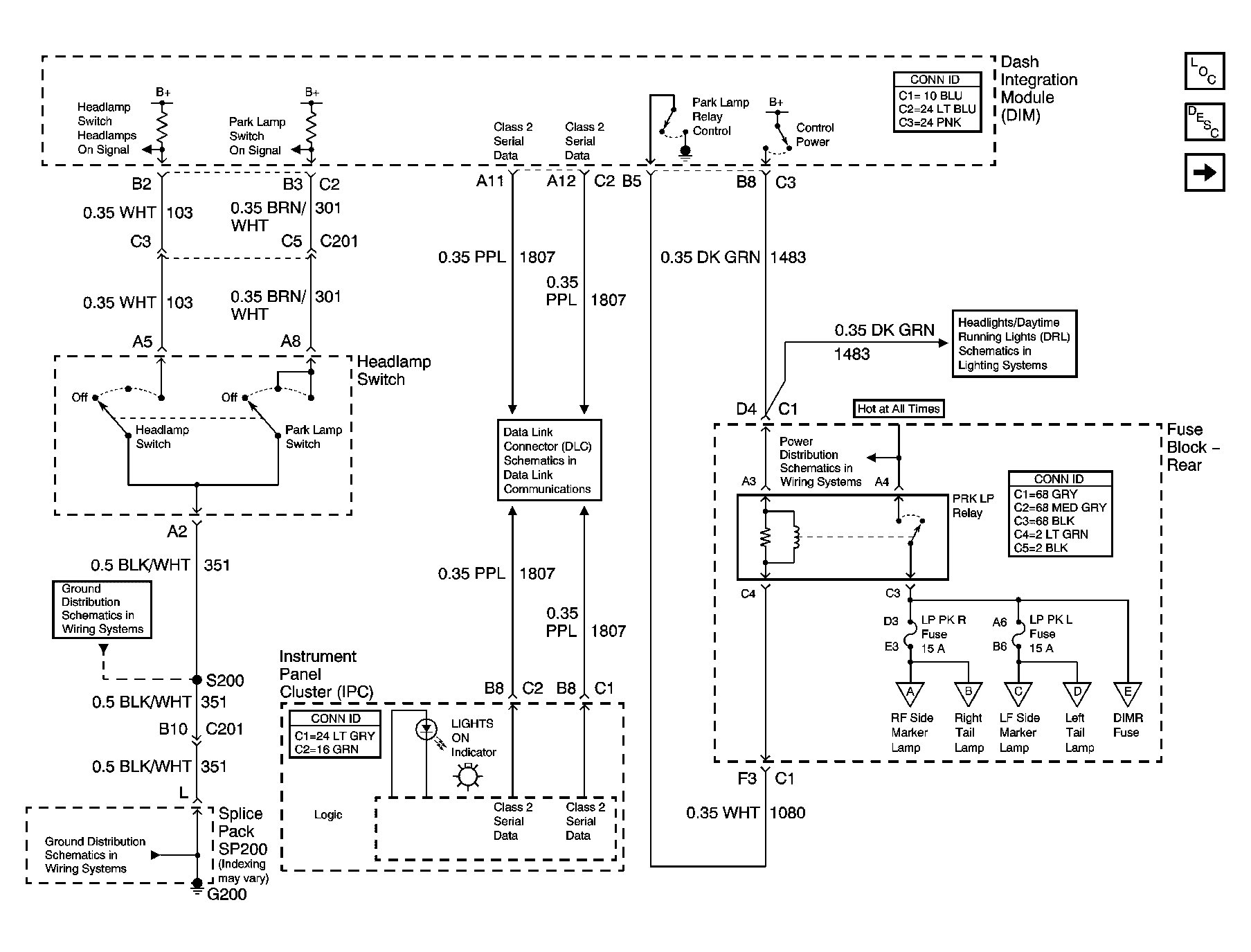

Fig 1: Headlamp Switch, Park Lamp Relay Schematic

Courtesy of GENERAL MOTORS CORP.

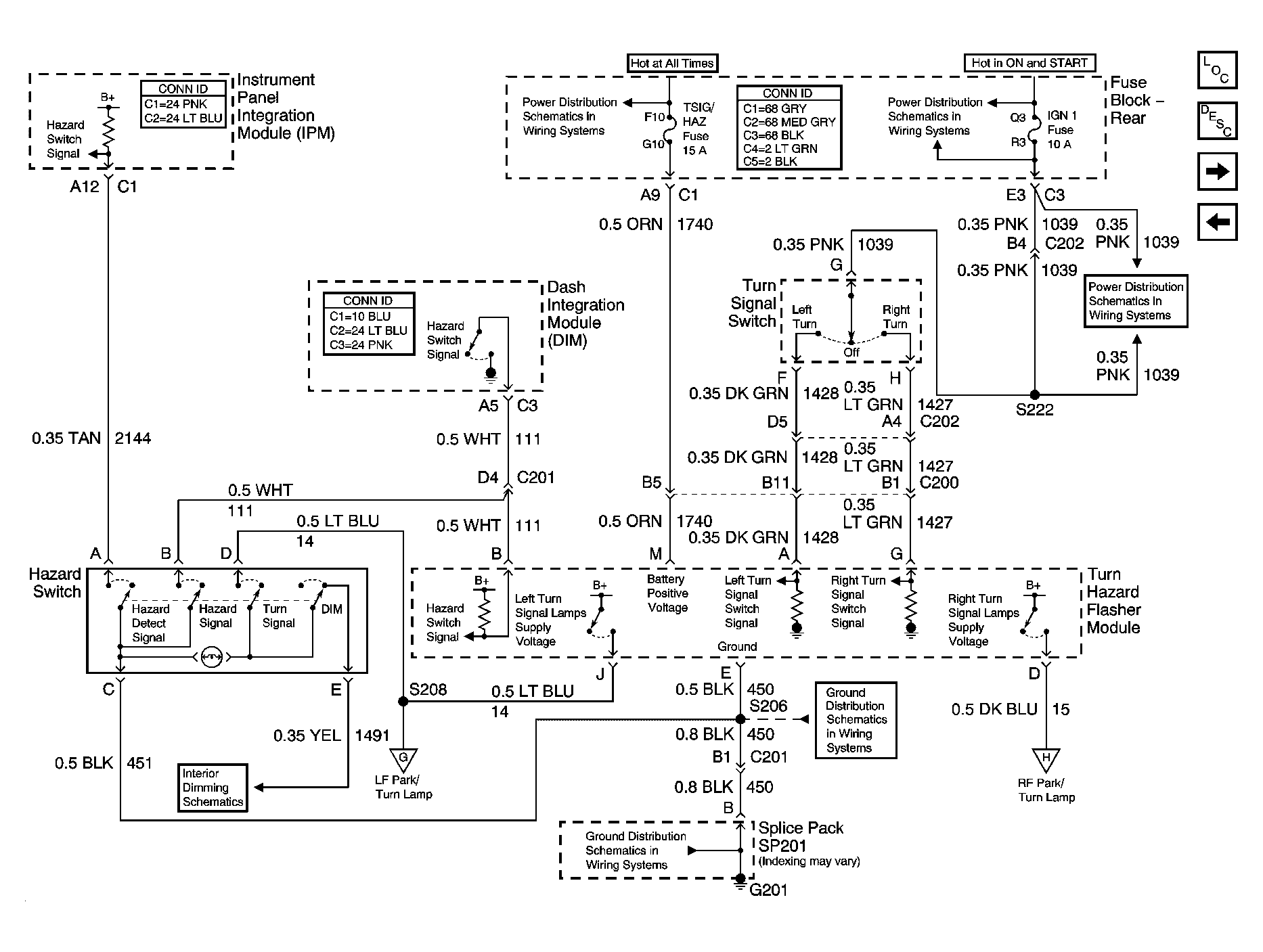

Fig 2: Turn/Hazard Flasher Module, Hazard Switch Schematic

Courtesy of GENERAL MOTORS CORP.

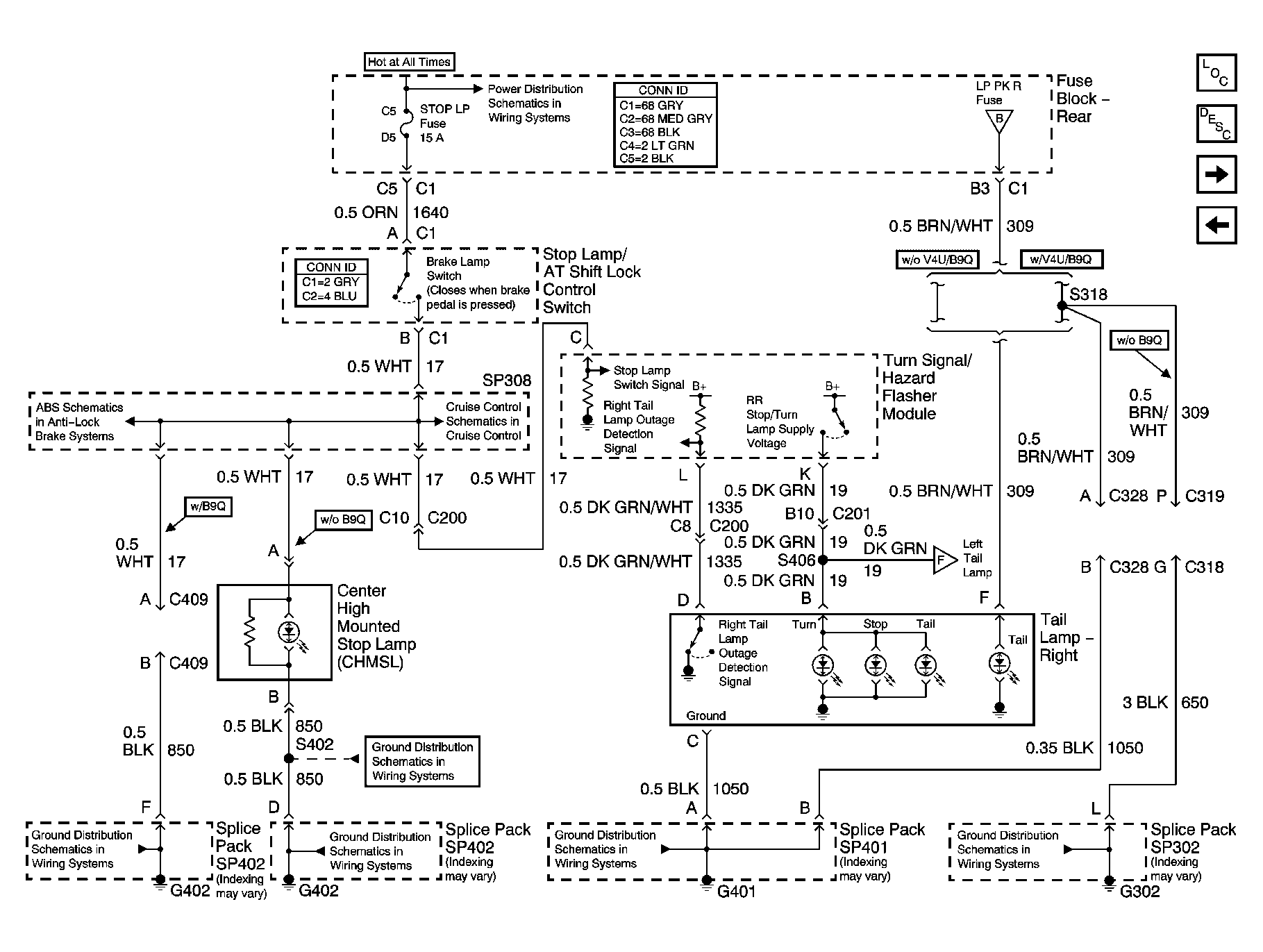

Fig 3: Right Tail Lamp and Center High Mounted Stop Lamp (CHMSL) Schematic

Courtesy of GENERAL MOTORS CORP.

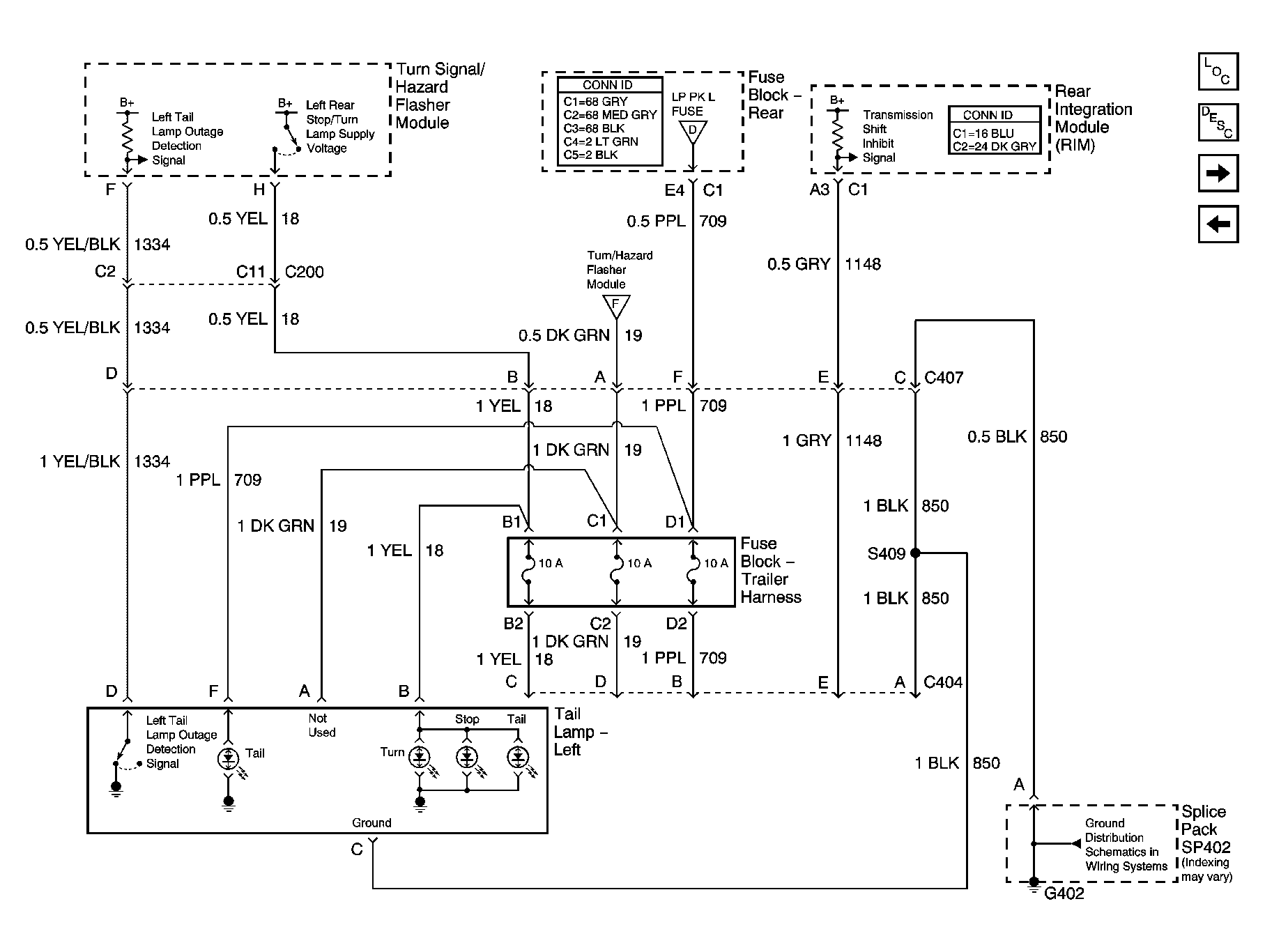

Fig 4: Left Tail Lamp Schematic

Courtesy of GENERAL MOTORS CORP.

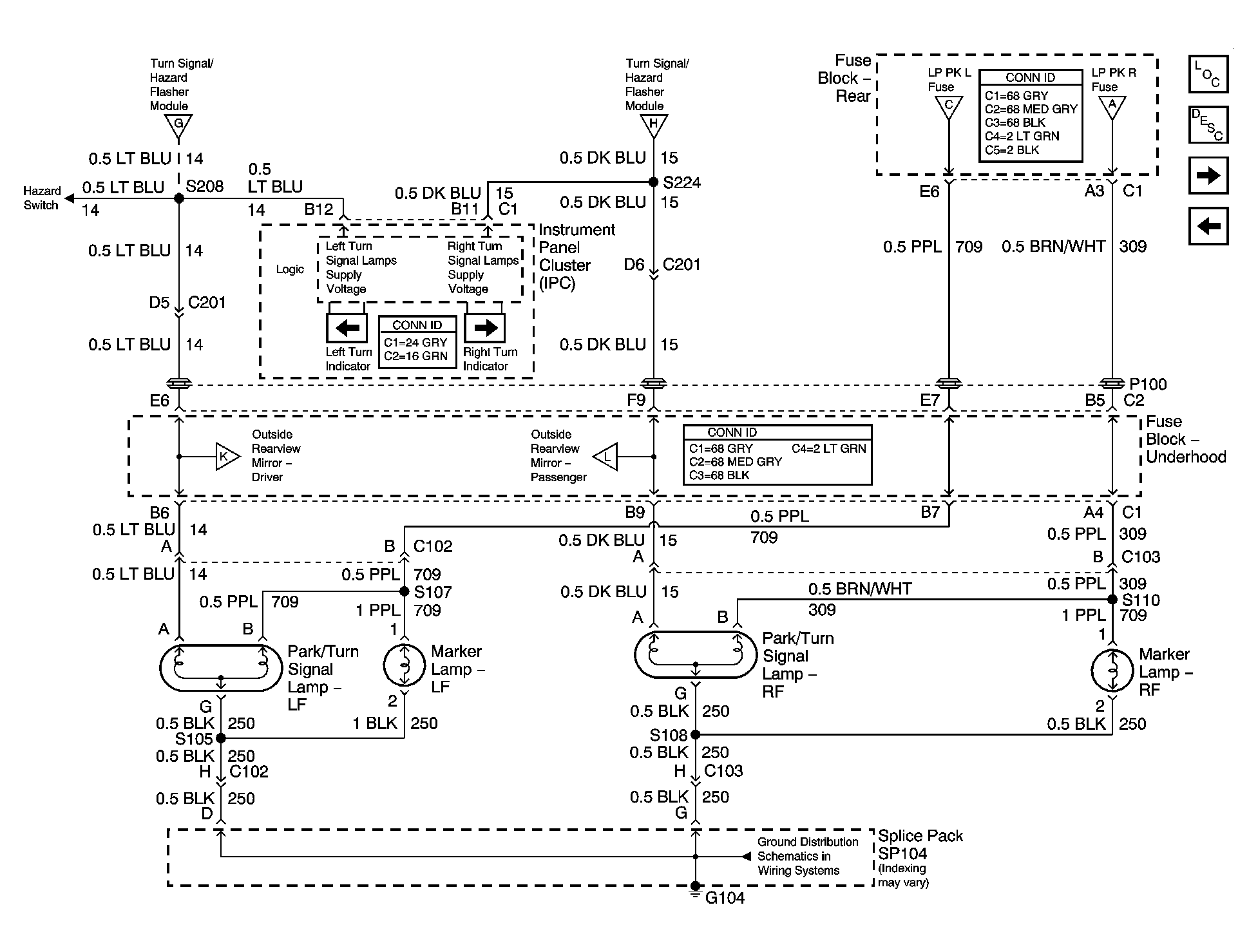

Fig 5: Front Park/Turn and Side Marker Lamps Schematic

Courtesy of GENERAL MOTORS CORP.

Fig 6: Outside Rearview Mirror Turn Signals Schematic

Courtesy of GENERAL MOTORS CORP.

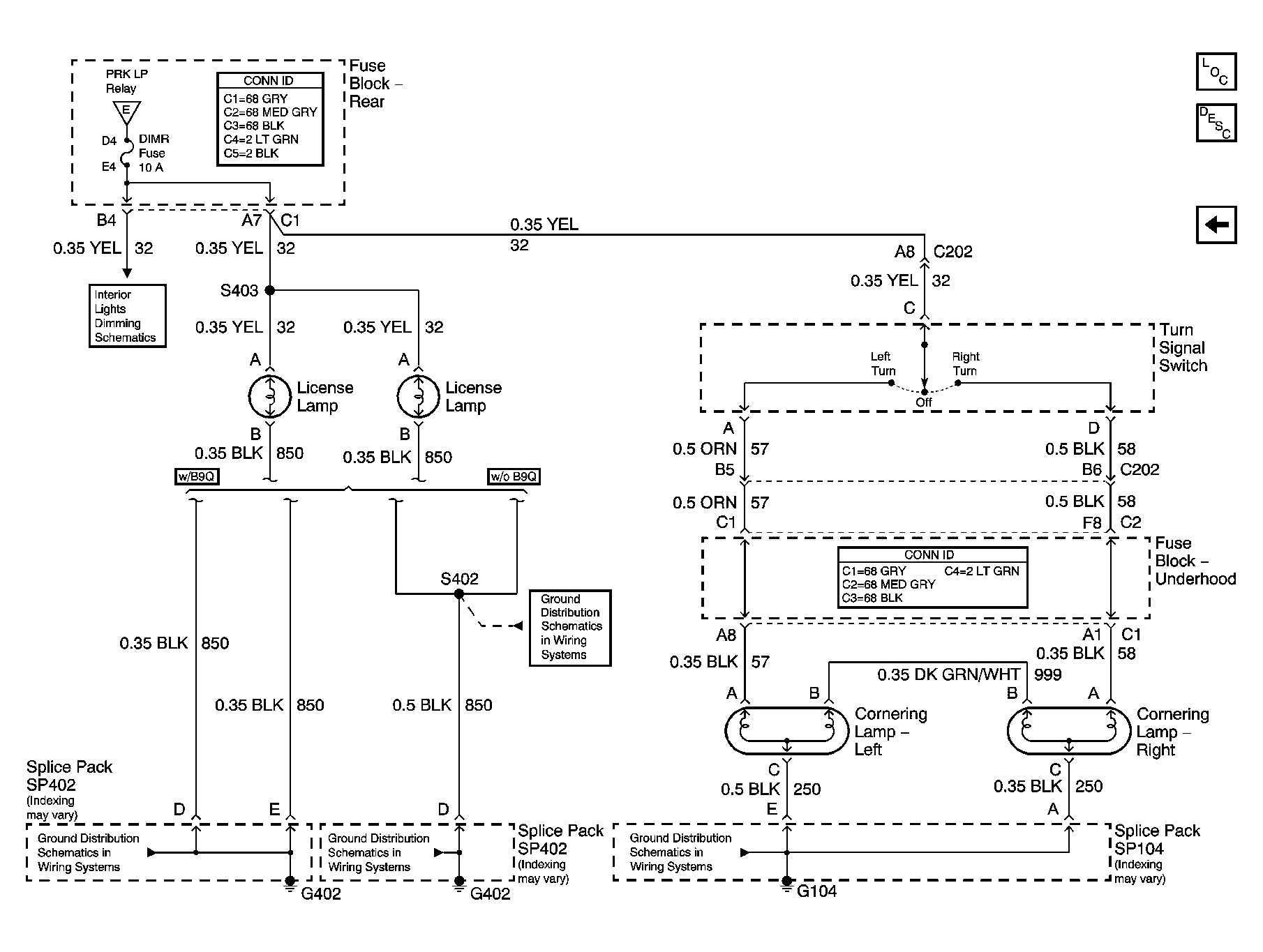

Fig 7: License and Cornering Lamps Schematic

Courtesy of GENERAL MOTORS CORP.
