Exterior Lights Schematics (Export)

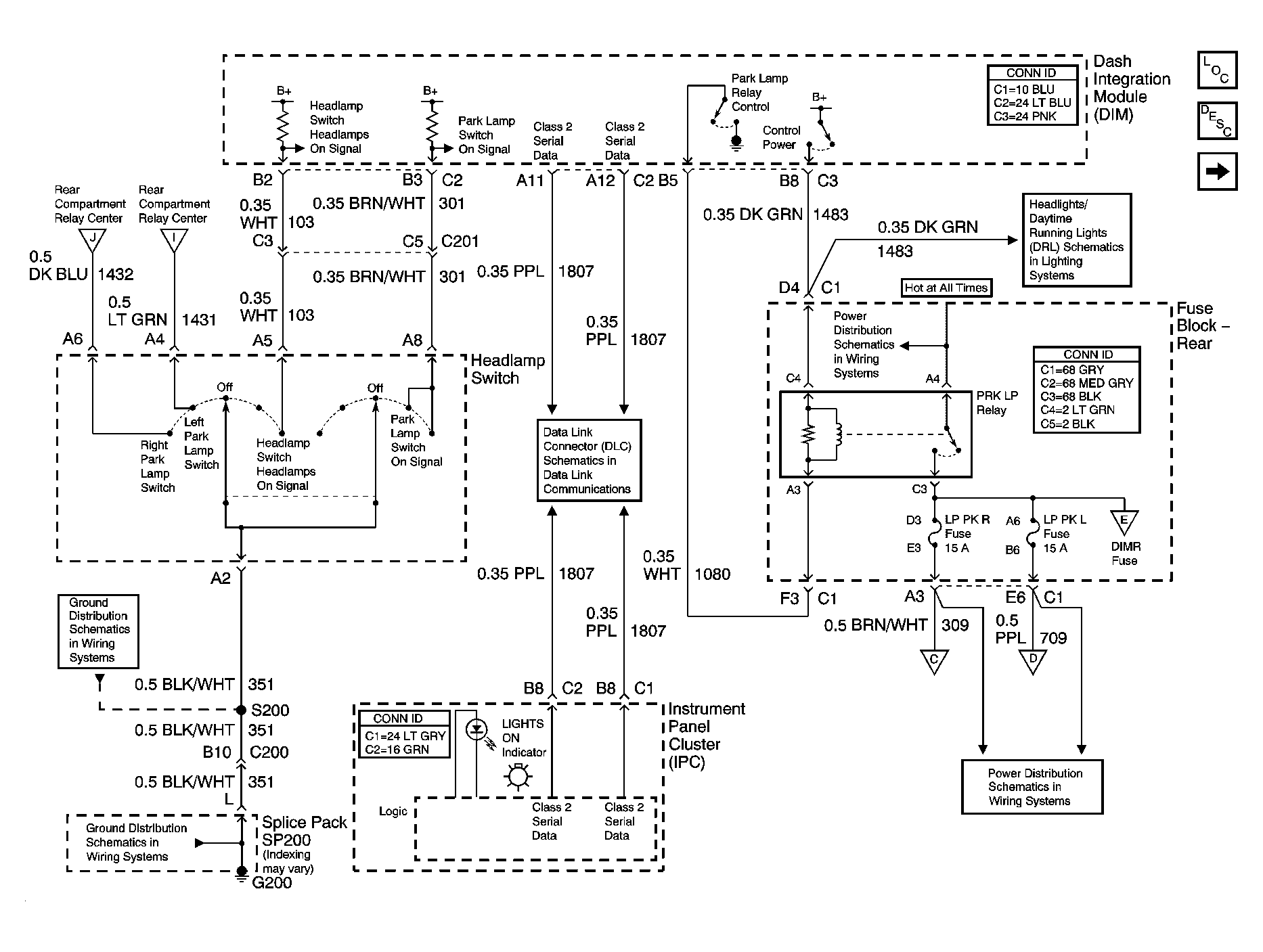

Fig 1: Headlamp Switch, Park Lamp Relay Schematic
GM795861Courtesy of GENERAL MOTORS CORP.

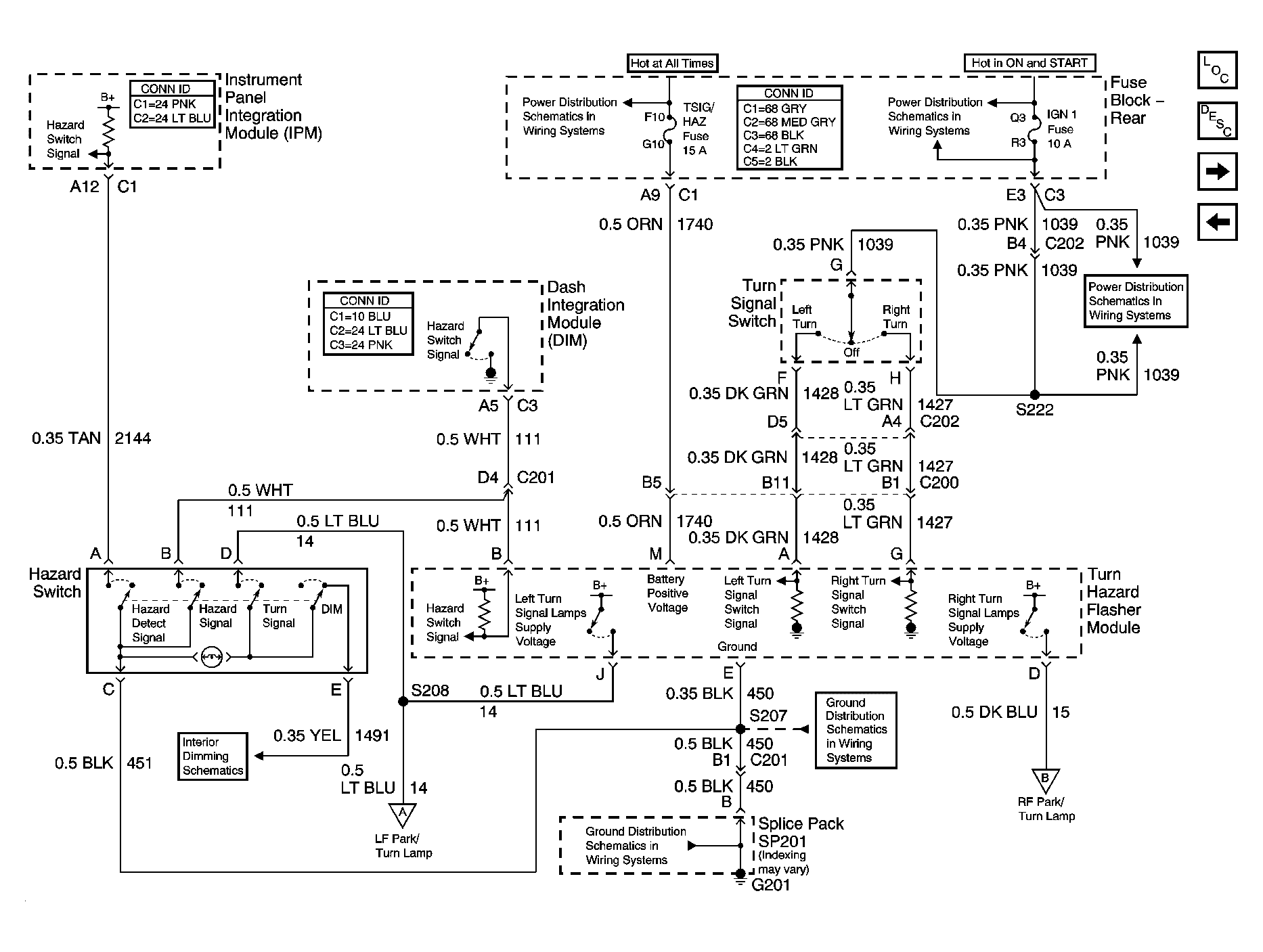

Fig 2: Turn/Hazard Flasher Module, Hazard Switch Schematic
GM795862Courtesy of GENERAL MOTORS CORP.

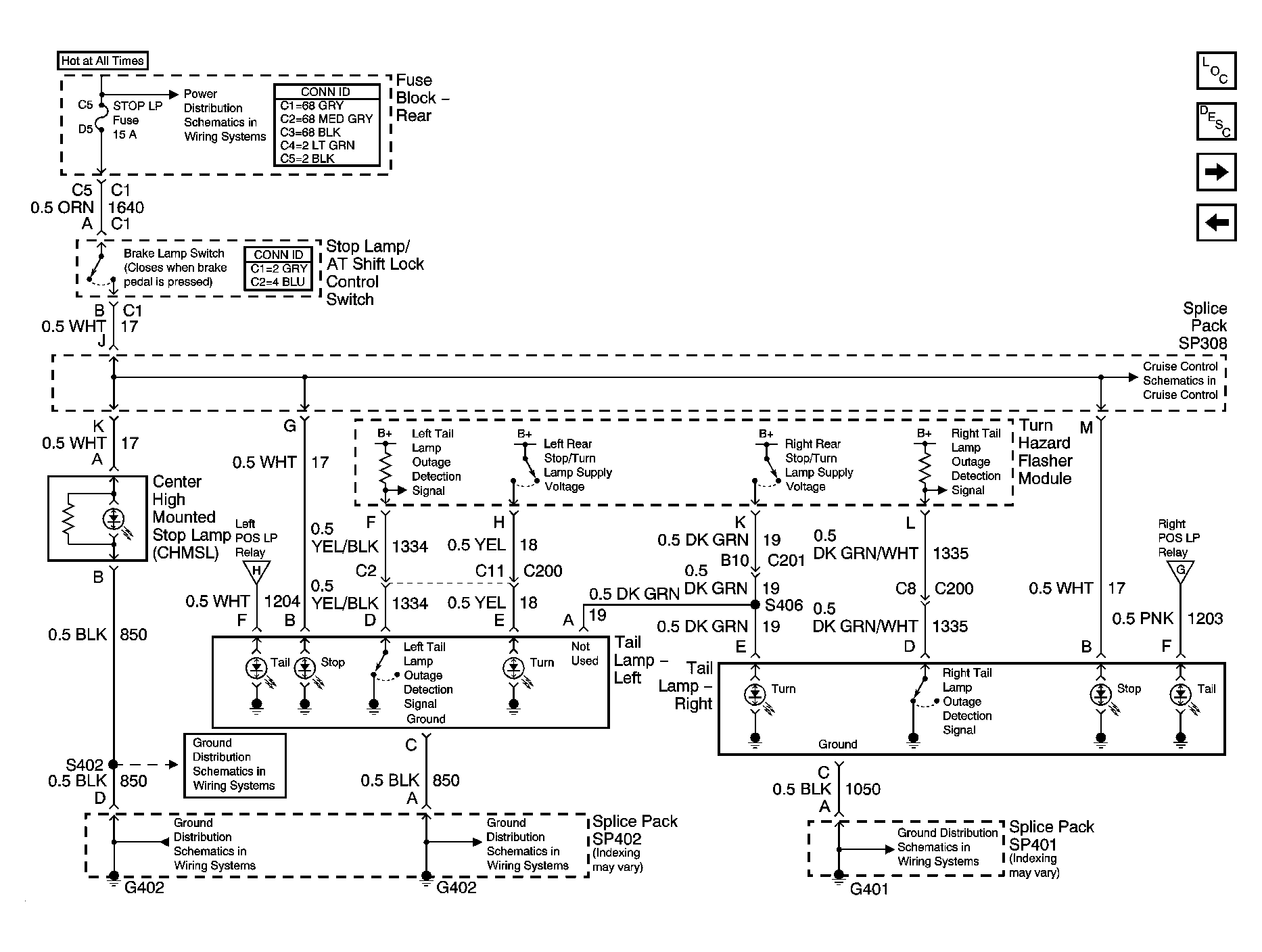

Fig 3: Tail Lamps Schematic
GM795864Courtesy of GENERAL MOTORS CORP.

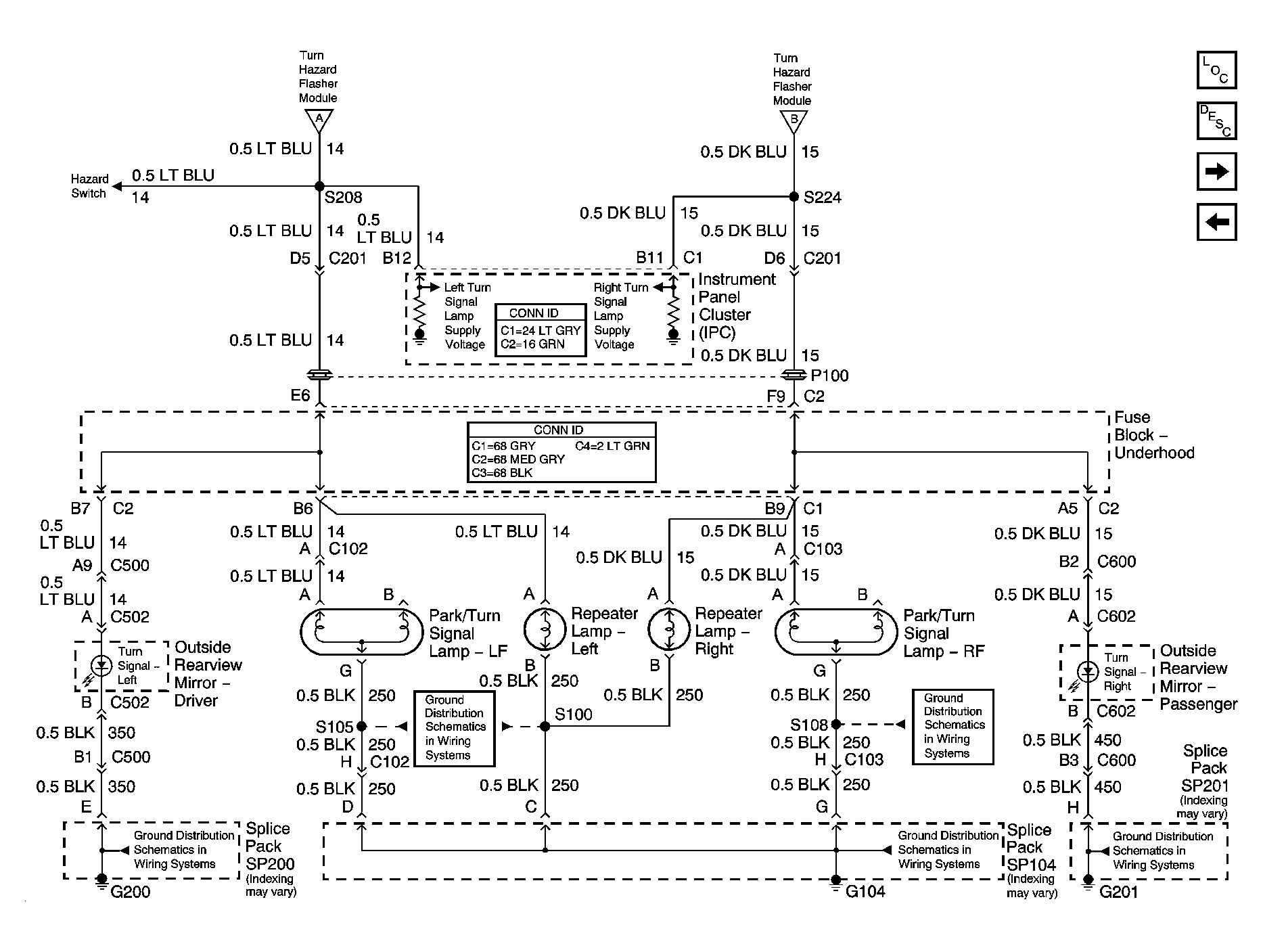

Fig 4: Front Park/Turn and Repeater Lamps Schematic
GM899207Courtesy of GENERAL MOTORS CORP.

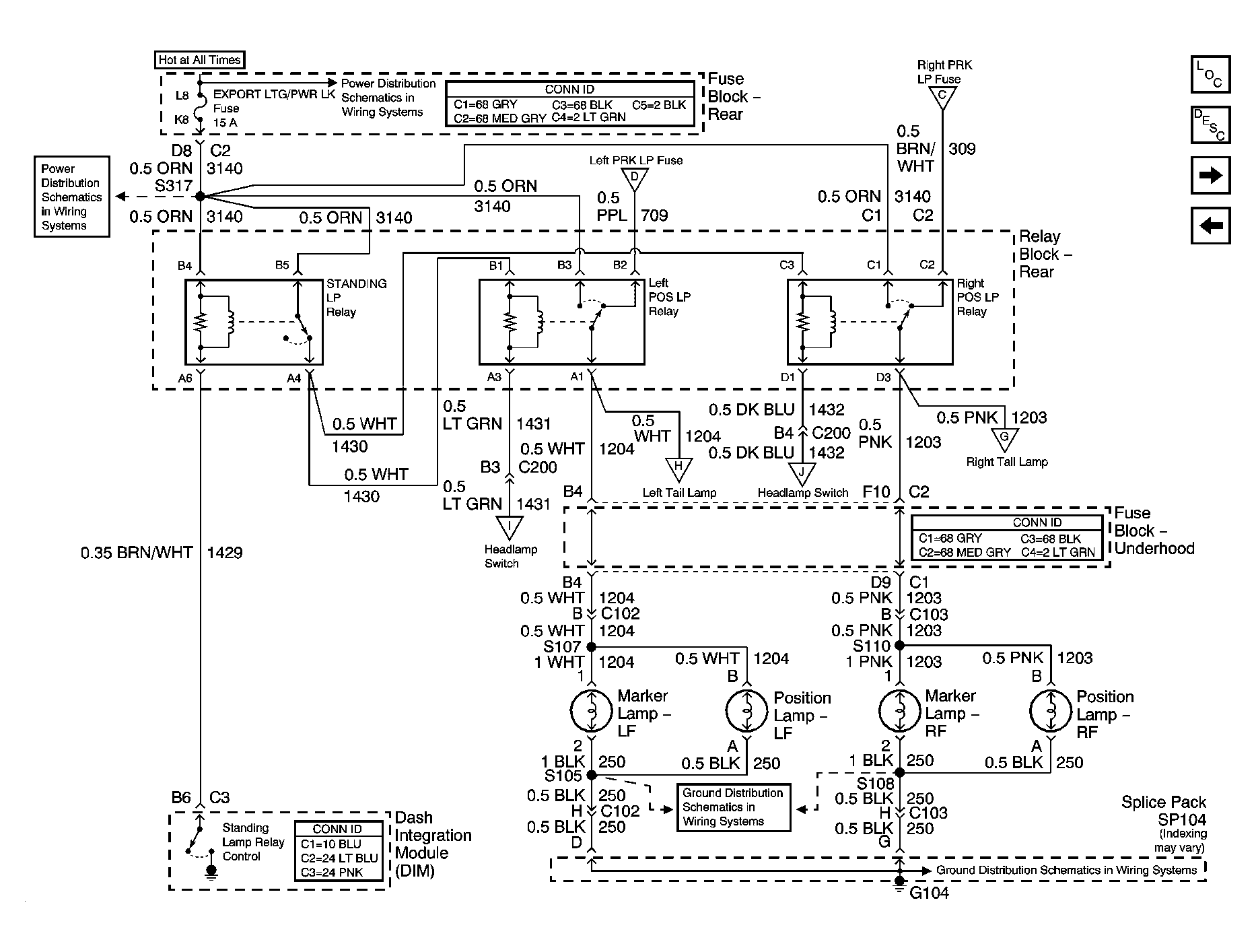

Fig 5: Standing and Position Lamp Relays Schematic
GM795866Courtesy of GENERAL MOTORS CORP.

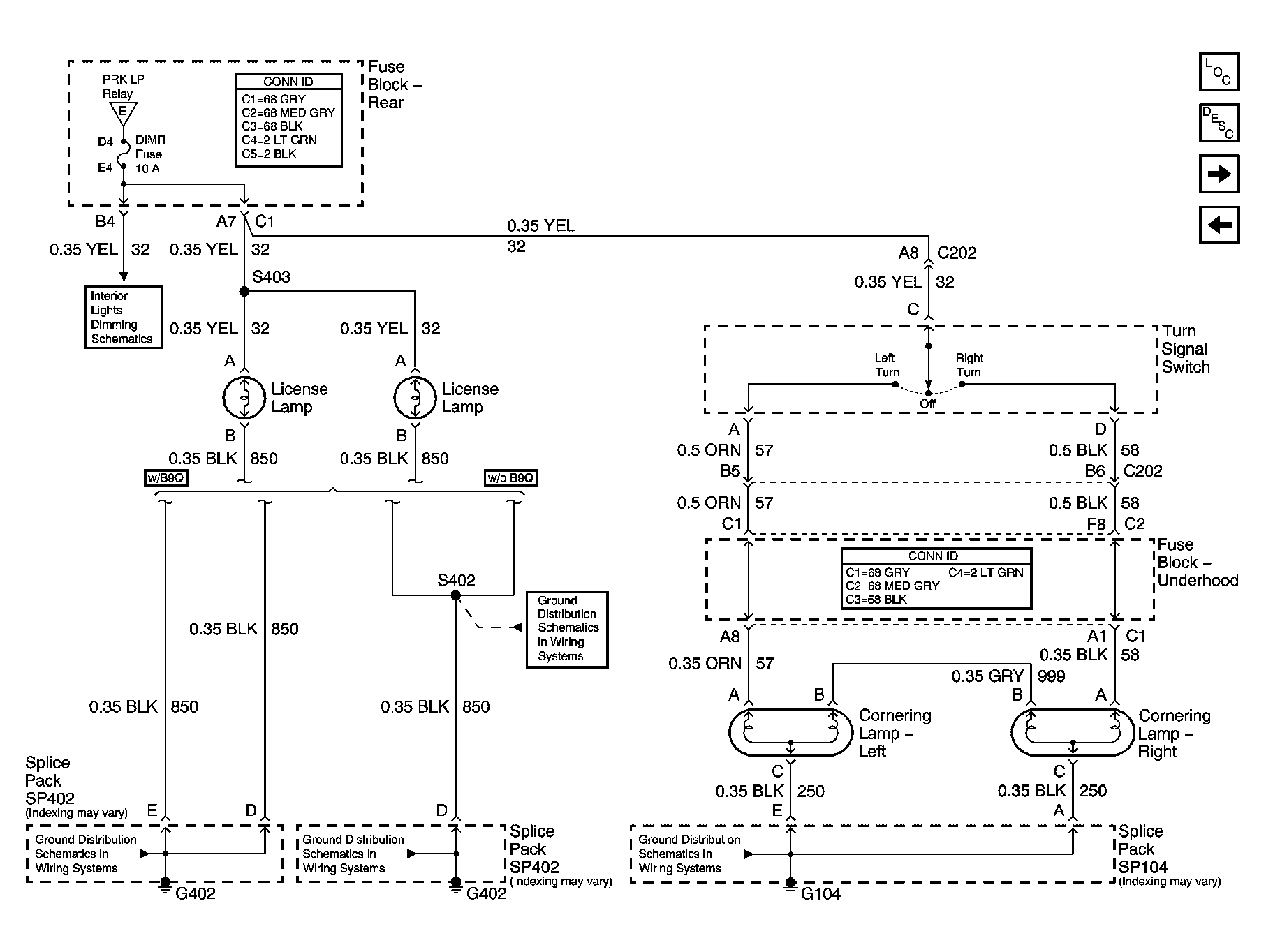

Fig 6: License and Cornering Lamps Schematic
GM795867Courtesy of GENERAL MOTORS CORP.
