Exterior Lights Schematics (Backup Lights)

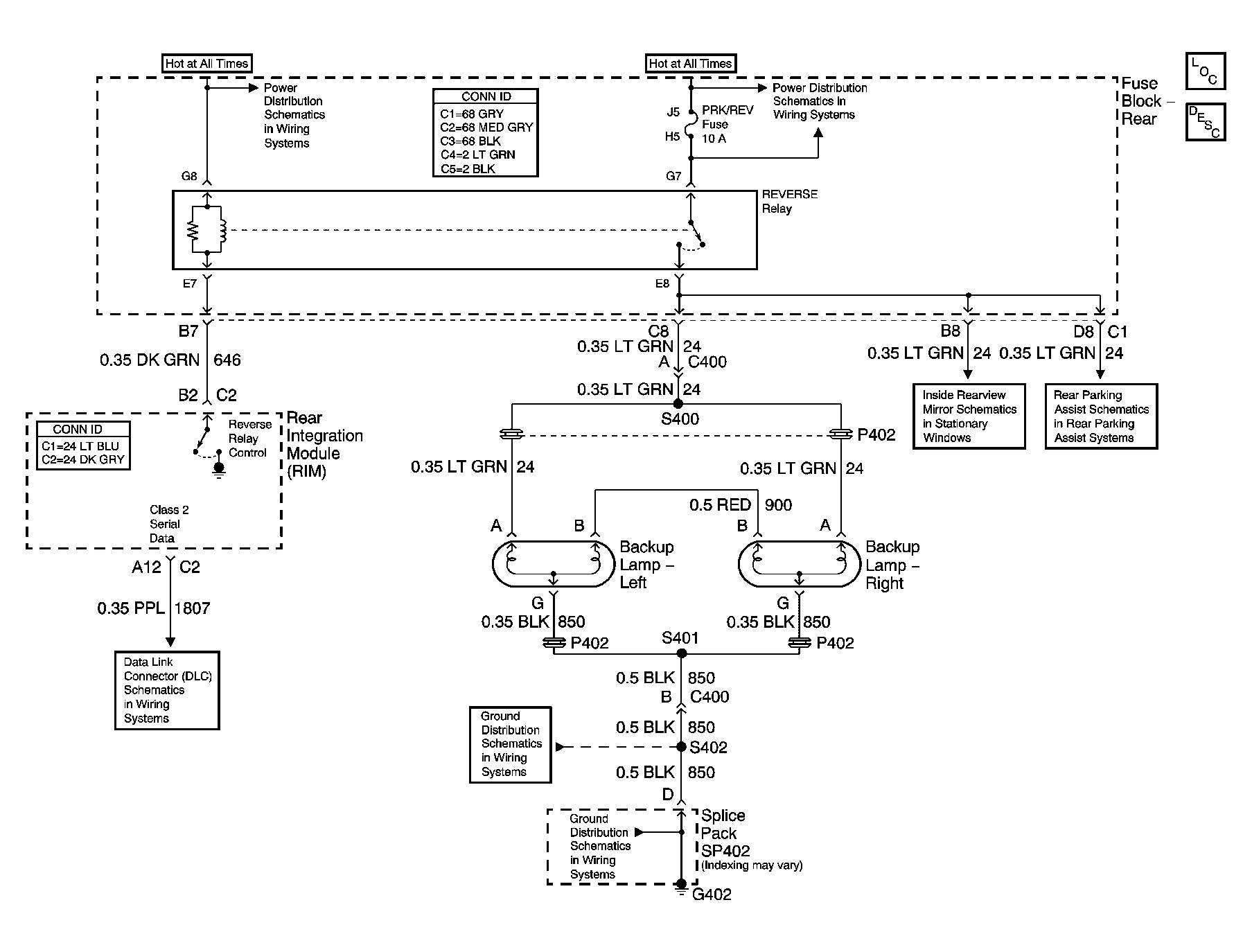

Fig 1: Exterior Light (Backup Lights) Schematic

GM795868

Courtesy of GENERAL MOTORS CORP.
