OnStar Schematics
OnStar Schematics

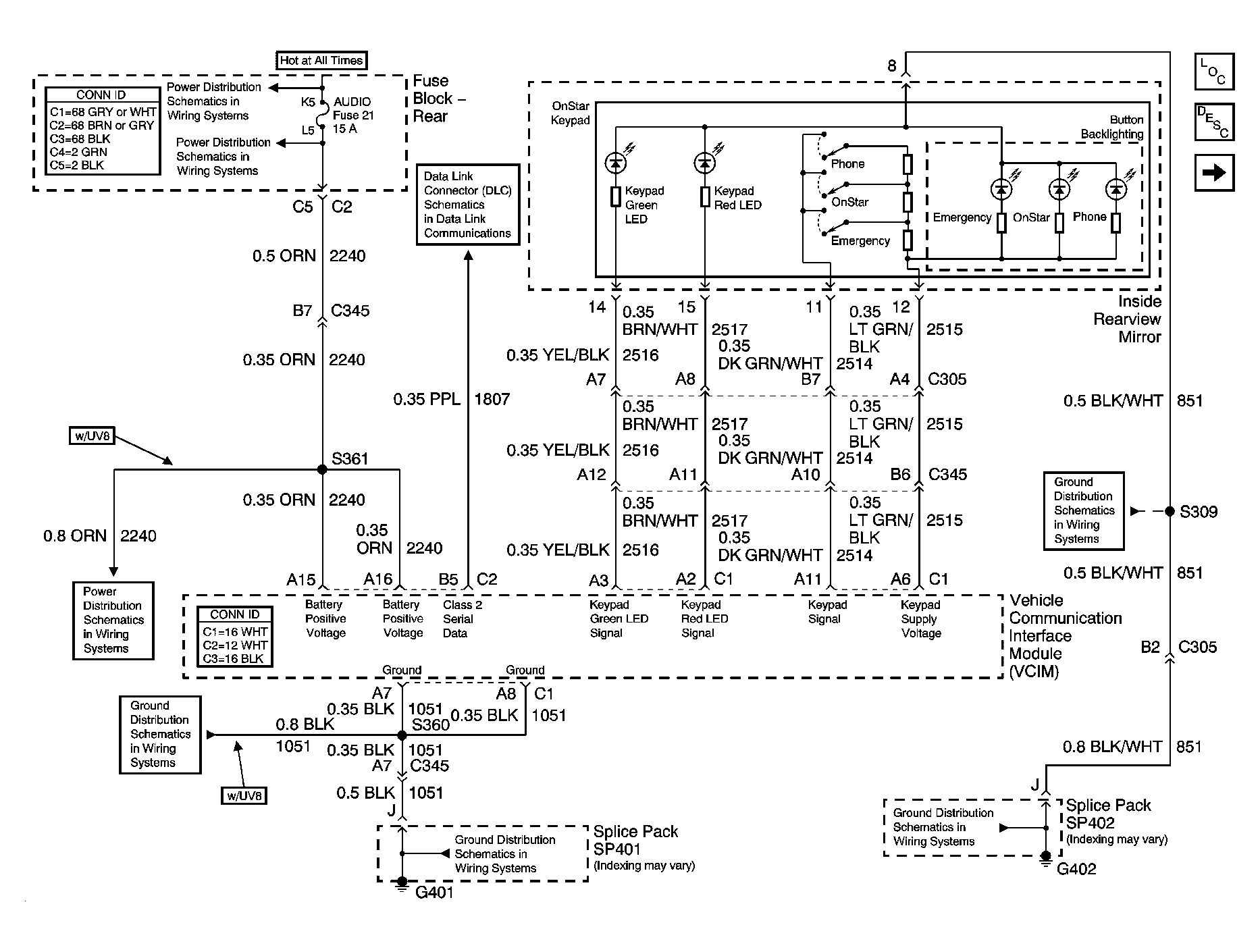

Fig 1: Power, Ground and OnStar Keypad Schematic
Courtesy of GENERAL MOTORS CORP.

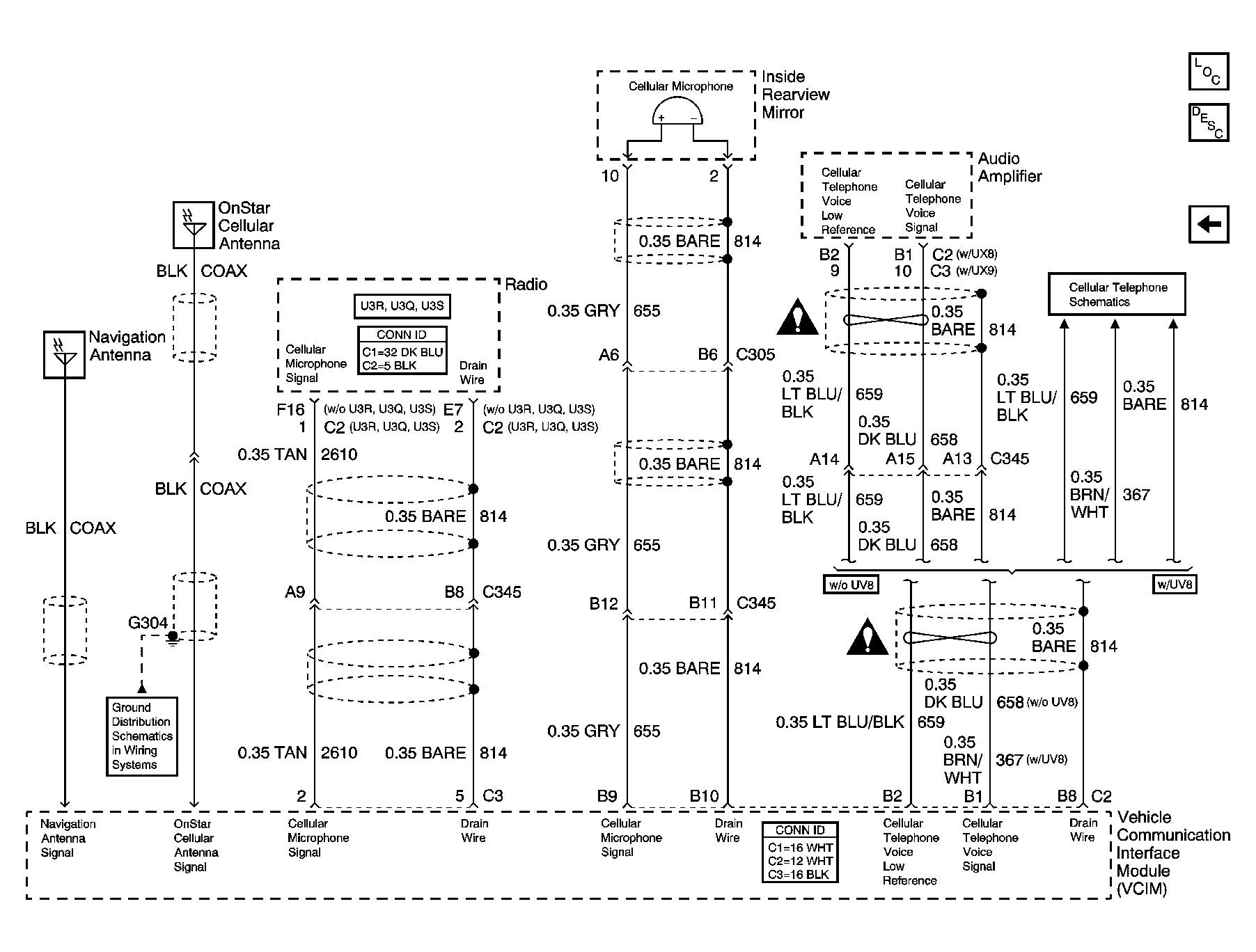

Fig 2: Microphone, Audio Amplifier and Antenna Schematic
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
