Cellular Telephone Schematics

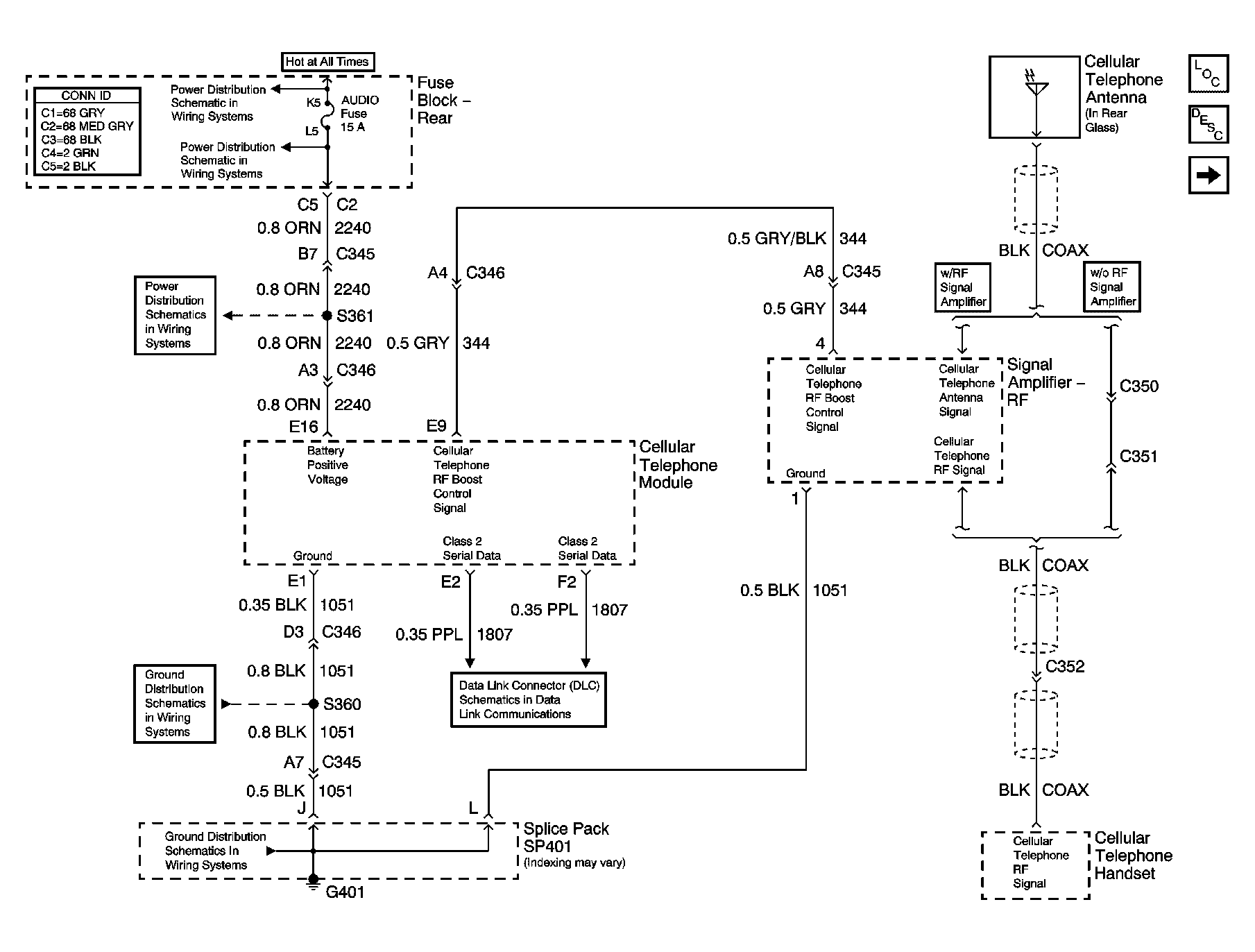

Fig 1: Power, Ground and Class 2 Schematic
GM799554Courtesy of GENERAL MOTORS CORP.

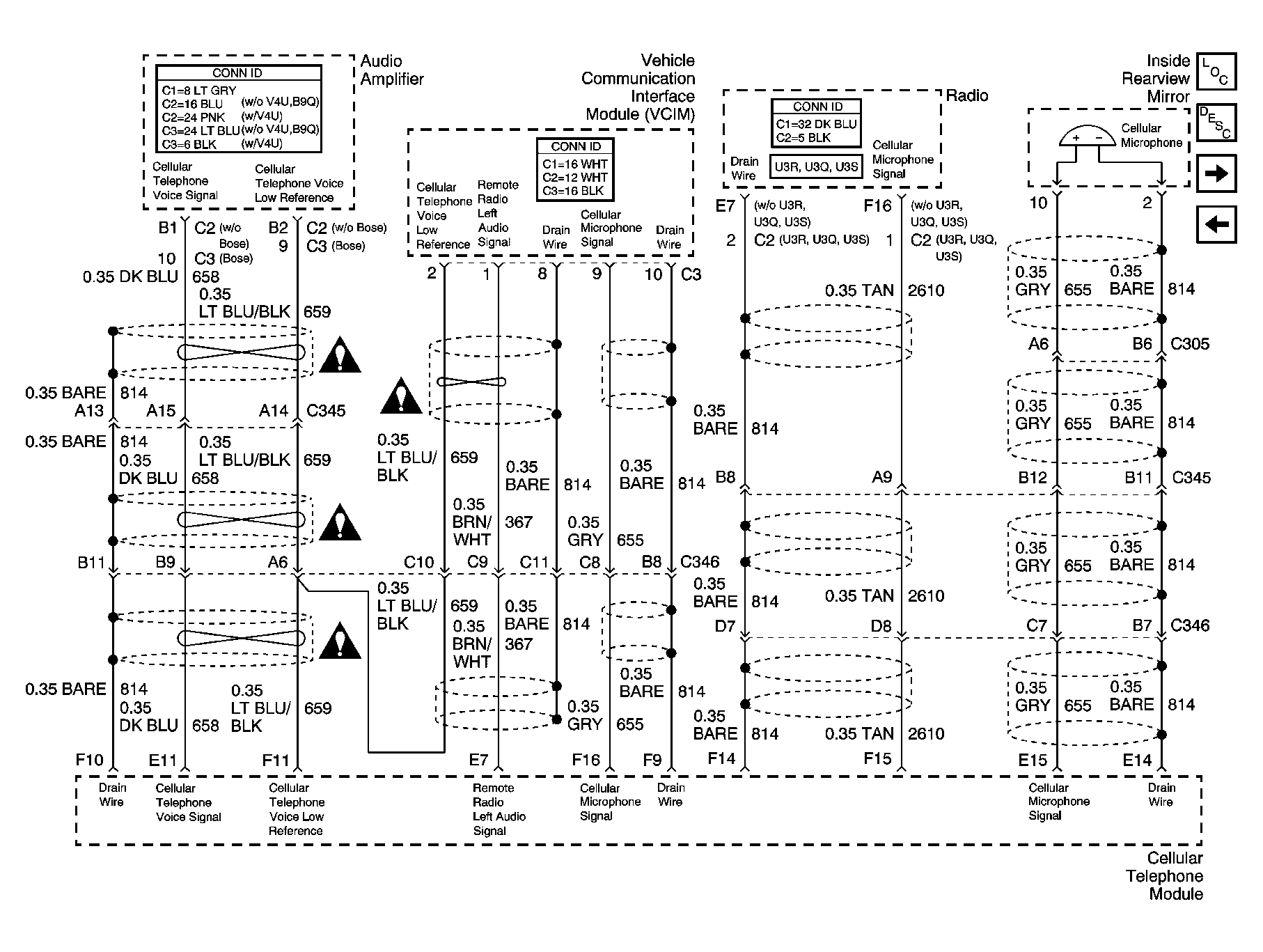

Fig 2: Vehicle Communication Interface Module (VCIM) Microphone, Audio Amplifier Schematic
GM1283038Courtesy of GENERAL MOTORS CORP.

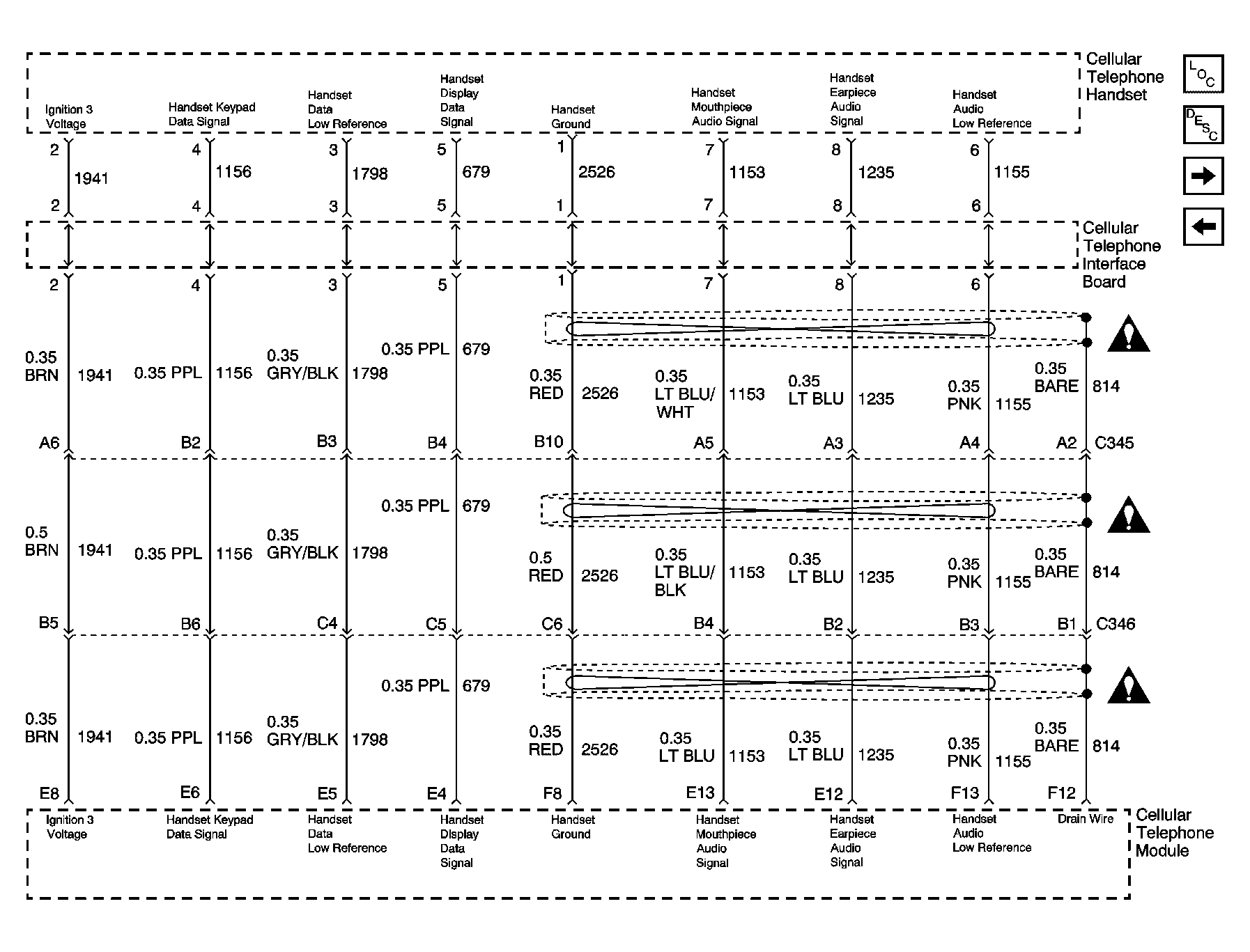

Fig 3: Cellular Telephone Interface Board Schematic
GM799556Courtesy of GENERAL MOTORS CORP.

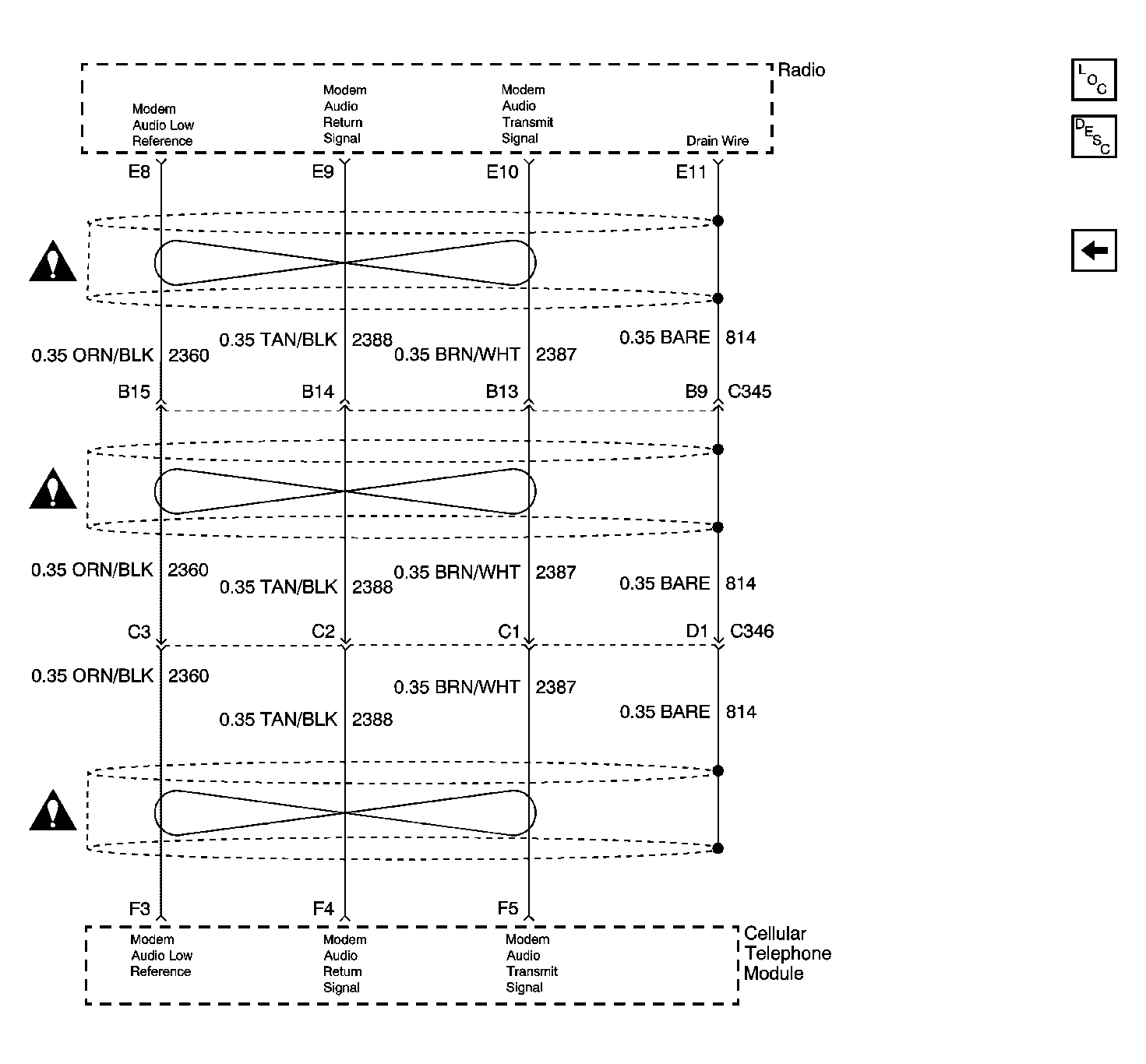

Fig 4: Web Radio Schematic
GM799557Courtesy of GENERAL MOTORS CORP.
