Wiper/Washer System Schematics

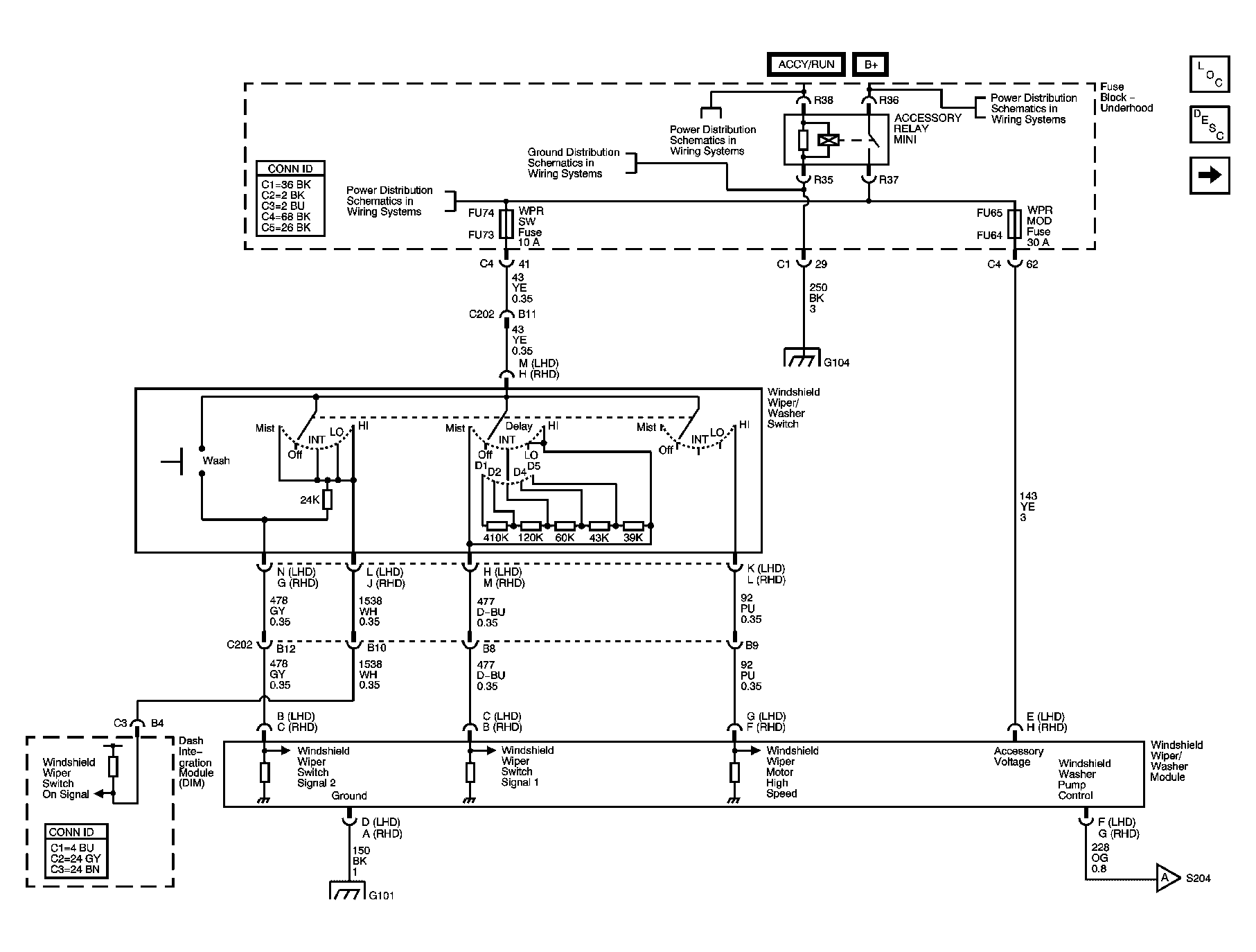

Fig 1: Power, Ground, Windshield Wiper/Washer Switch and Module Schematic
GM1317265Courtesy of GENERAL MOTORS CORP.

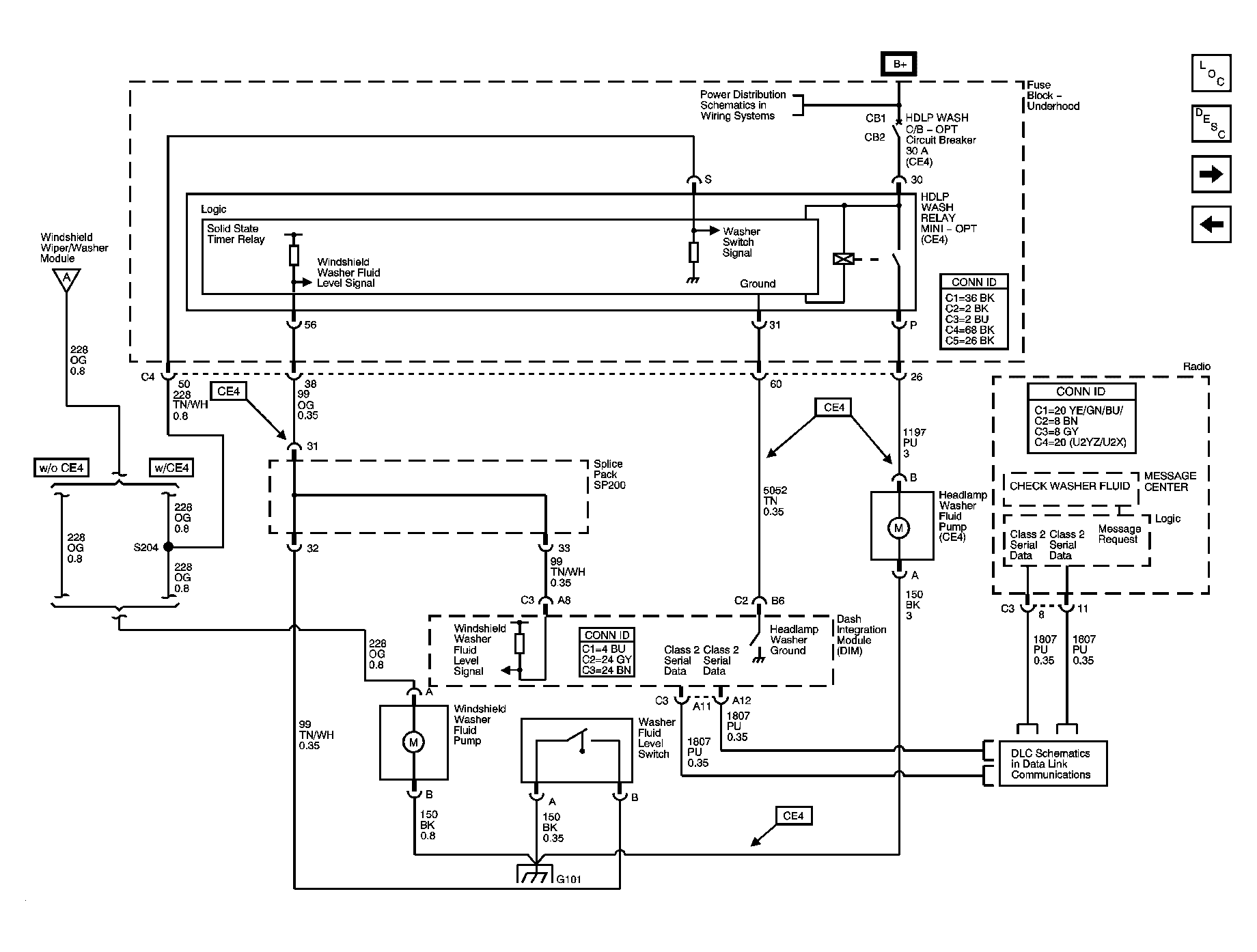

Fig 2: Windshield Washer Fluid Pump, Headlamp Washer Fluid Pump Relay (CE4) and Washer Fluid Level Switch Schematic
GM1317270Courtesy of GENERAL MOTORS CORP.

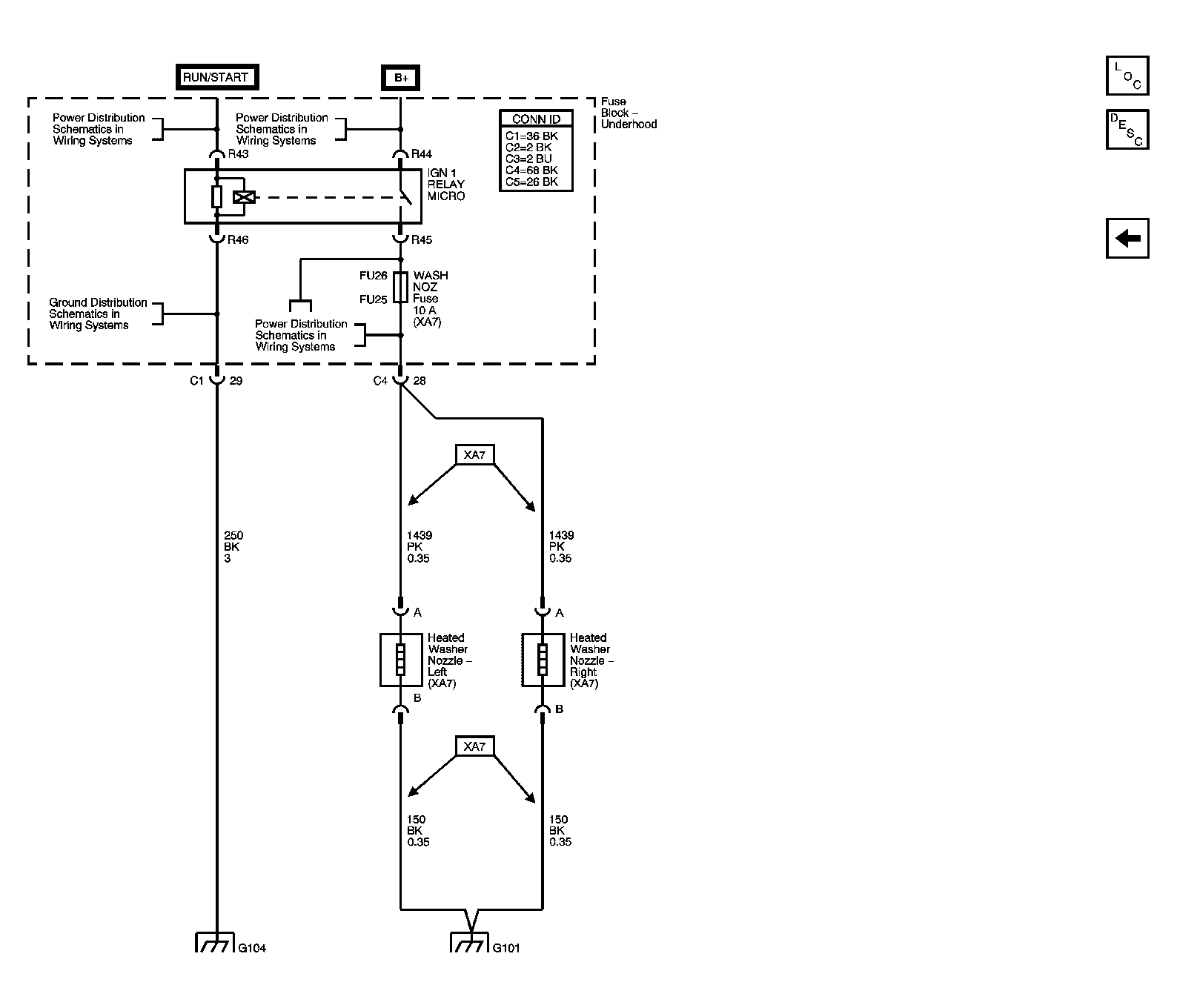

Fig 3: Heated Washer Nozzles (XA7) Schematic
GM1317303Courtesy of GENERAL MOTORS CORP.
