Installation Procedure
WARNING: This page is about a different variant/trim than selected.

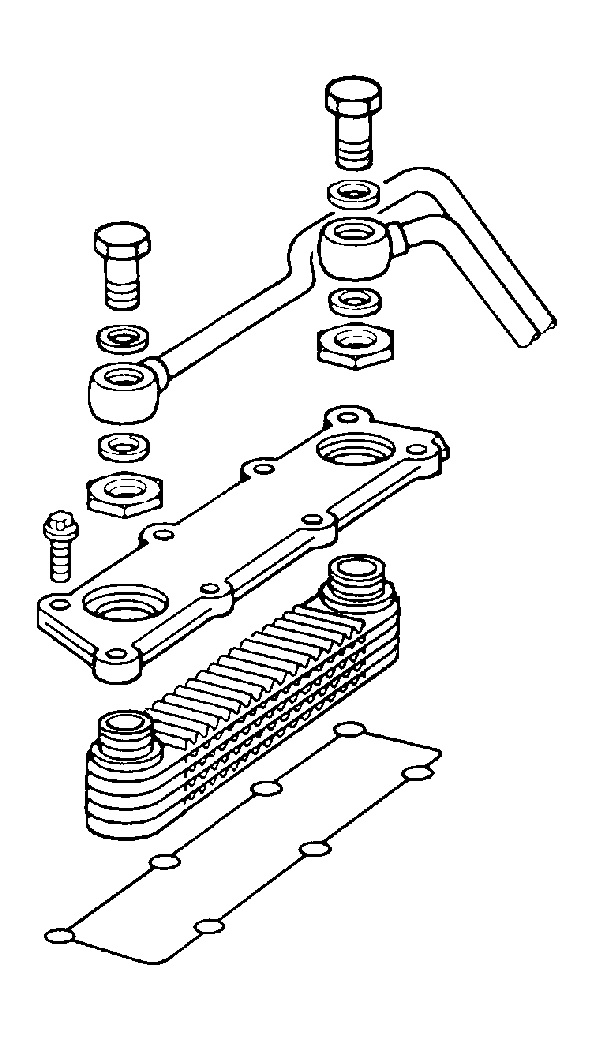

- Position the oil cooler lines to the engine.
- Install the oil cooler inlet and outlet fittings to the engine oil cooler.
Use 4 new seals.
Tighten:
- Tighten the oil cooler inlet fitting to 30 N.m (22 lb ft).
- Tighten the oil cooler outlet fitting to 30 N.m (22 lb ft).
- Install the water crossover. Refer to Coolant Crossover Pipe Replacement (LA3, LY9) in Engine Cooling.
- Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle in General Information.
- Install the oil cooler inlet (2) and outlet fittings (1) to the engine block.
Tighten:
- Tighten the oil cooler inlet fitting (2) to 30 N.m (22 lb ft).
- Tighten the oil cooler outlet fitting (1) to 30 N.m (22 lb ft).
- Install the oil filter adapter. Refer to Oil Filter Adapter Replacement .
- Install the following components according to the RPO code:
- LHD
The wiper motor module. Refer to Wiper Motor Module Replacement (LHD) or Wiper Motor Module Replacement (RHD) in Wipers/Washer Systems.
- RHD
- Position the front air inlet panel assembly to the battery tray and cowl.
- Install the fasteners securing the front air inlet panel assembly to the battery tray and cowl.
Tighten: Tighten the front air inlet panel assembly fasteners to 6 N.m (53 lb in).
- The air inlet grill panel. Refer to Air Inlet Grille Panel Replacement (LHD) or Air Inlet Grille Panel Replacement (RHD) in Body Front End.
- LHD
NOTE:
Refer to Component Fastener Tightening Notice
in Cautions and Notices.
