Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the J 28467-B  .

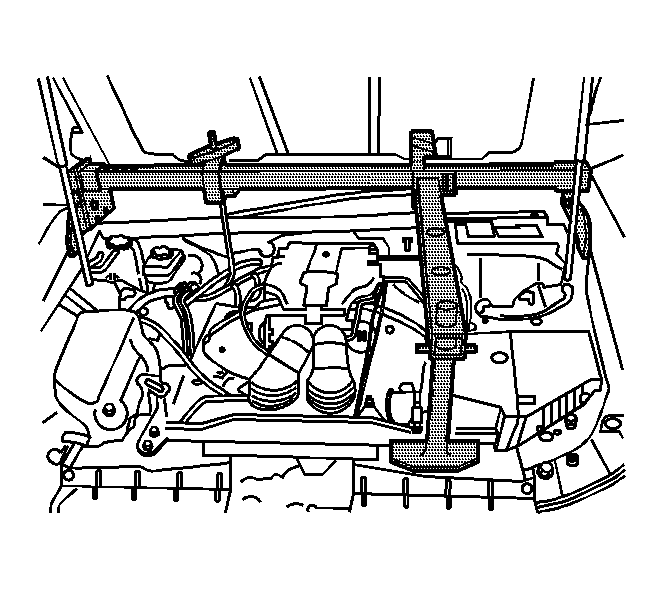

    Fig 1: View Of Engine Support Fixture Assembly
    GM790677Courtesy of GENERAL MOTORS CORP.
  2. Remove the J 28467-501  .
