Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Install the left engine mount brackets.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the left engine mount bracket retaining bolts.

    Tighten:  Tighten the bolts to 60 N.m (44 lb ft).

    Fig 1: View Of Left Engine Mount Bracket Retaining Bolts
    GM785355Courtesy of GENERAL MOTORS CORP.

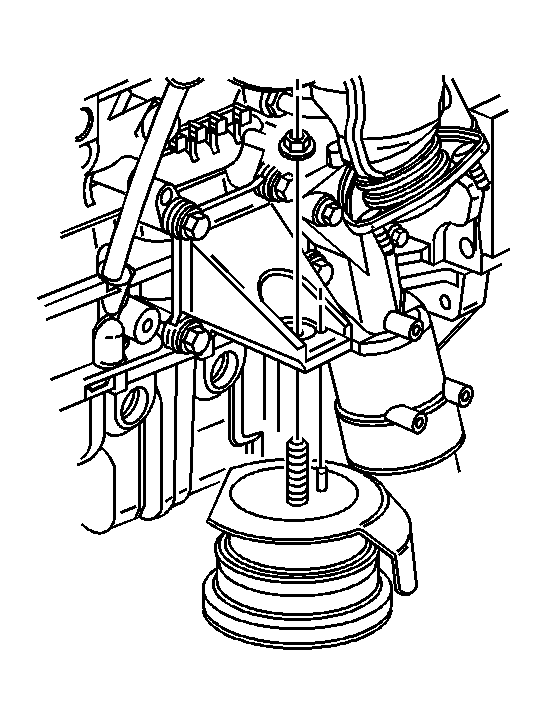

    3. Fig 2: Locating Upper Engine Mount Retaining Nut
    GM785353Courtesy of GENERAL MOTORS CORP.
  3. Install the upper engine mount retaining nut.

    Tighten:  Tighten the nut to 80 N.m (59 lb ft).

  4. Remove the screw jack.
  5. Install the left catalytic converter. Refer to Catalytic Converter Replacement - Left (LA3, LY9) in Engine Exhaust.
  6. Lower the vehicle.
