Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the drive belt. Refer to Drive Belt Replacement .
  2. Loosen the drive belt tensioner bolts.

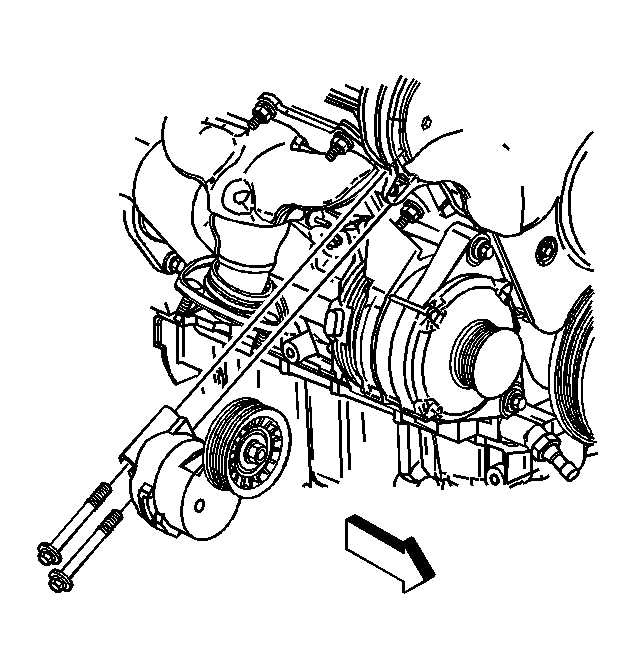

    Fig 1: View Of Drive Belt Tensioner Bolts
    GM785757Courtesy of GENERAL MOTORS CORP.
  3. Remove the upper drive belt tensioner bolt.
  4. Remove the drive belt tensioner and lower bolt from the engine.
