Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Using the drive belt routing diagram route the drive belt to the accessory drive pulleys, excluding the water pump pulley.
    Fig 1: Drive Belt Routing
    GM158551Courtesy of GENERAL MOTORS CORP.
  2. Rotate the drive belt tensioner clockwise.

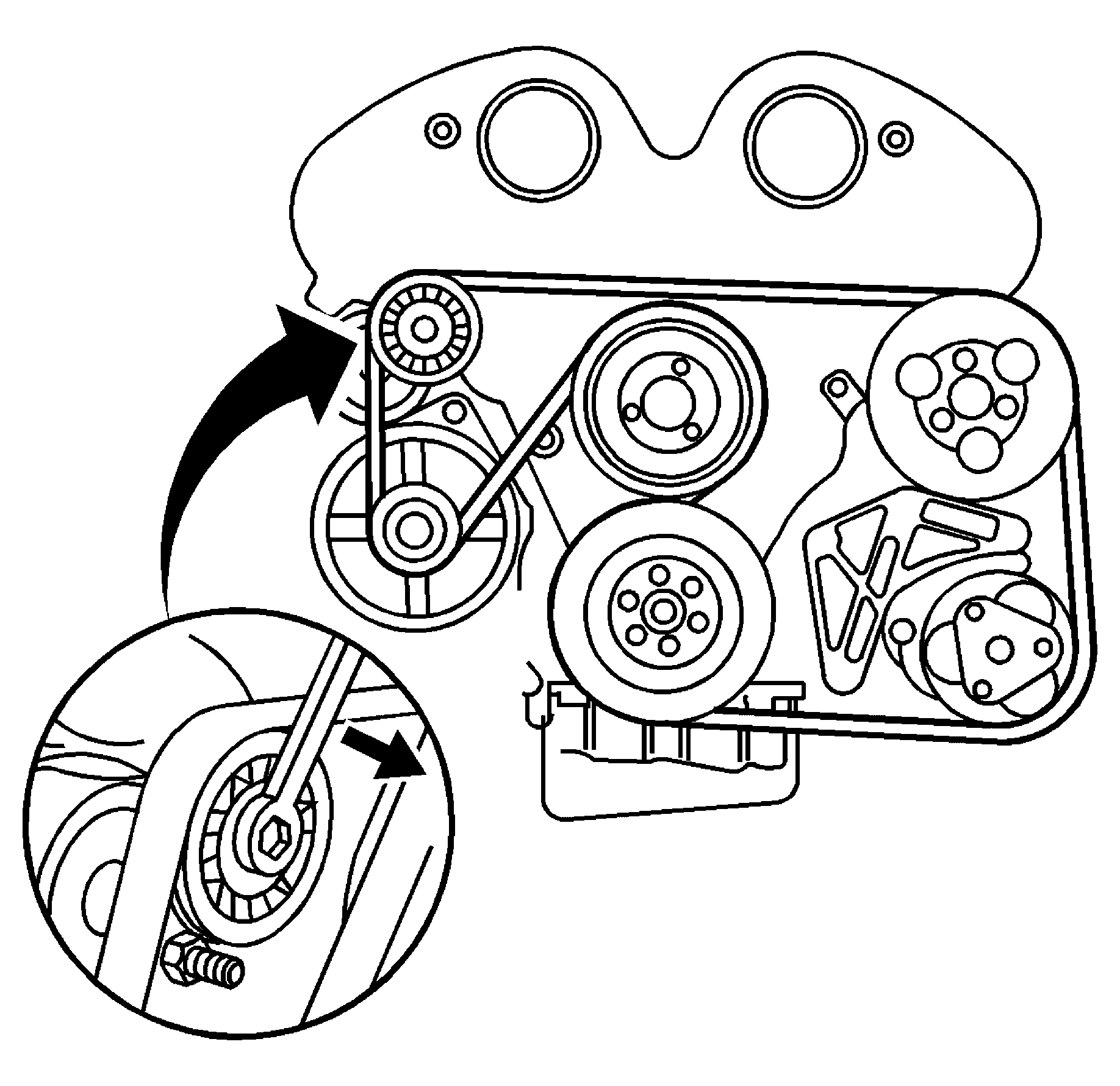

    Fig 2: Identifying Drive Belt Tensioner
    GM764830Courtesy of GENERAL MOTORS CORP.
  3. Route the drive belt over the top of the water pump.
    IMPORTANT: Ensure the drive belt is properly aligned and seated into the grooves of the accessory drive pulleys.
  4. Release the drive belt tensioner and inspect the drive belt for proper seating in the accessory drive pulleys.
