Installation Procedure
WARNING: This page is about a different variant/trim than selected.

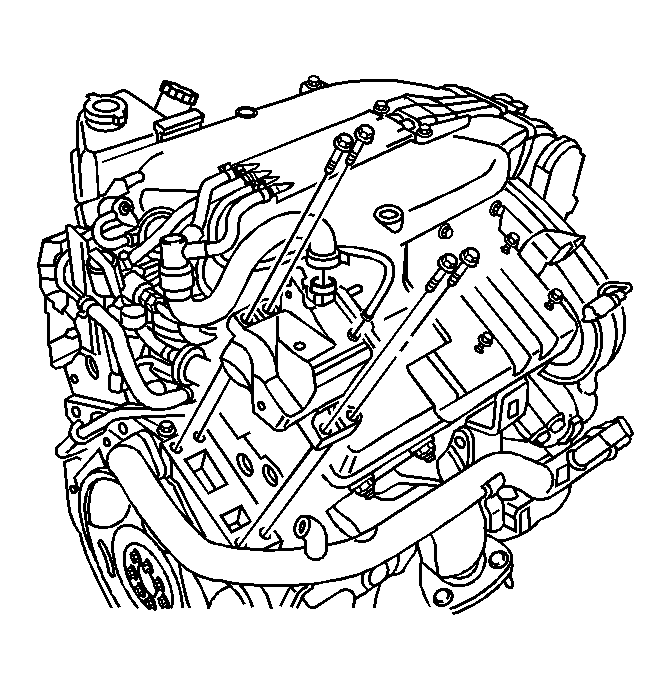

- Apply a 3 mm (0.12 in) bead of sealant GM P/N 1052942 (Canadian P/N 10953466) to the groove of the crankcase vent housing.
- Remove the plugs from the crankcase ports.
- Position the crankcase vent housing to the engine block.
- Install the crankcase vent housing bolts.
Tighten: Tighten the crankcase vent housing bolts to 8 N.m (71 lb in).
- Install the bolt (6) securing the following to the crankcase vent housing (4):
- The EVAP canister purge valve bracket (1)
- The heated oxygen sensor connector bracket (5)
Tighten: Tighten the EVAP canister purge valve bracket bolt to 8 N.m (71 lb in).
- Connect the following to the crankcase vent housing (4):
- The crankcase ventilation fresh air hose (2)
- The crankcase ventilation dirty air hose (3)
- The engine wiring harness push retainer
- Install the heated oxygen sensor connector (1) to the bracket (3).
- Install the bolt securing the surge tank outlet pipe to the vent housing-LHD ONLY.
Tighten: Tighten the surge tank outlet pipe to vent housing bolt to 9 N.m (80 lb in).
- Connect the electrical connector (2) to the coil pack (1).
- Install the following components according to the RPO code:
- LHD
- Position the front air inlet panel assembly to the battery tray and cowl.
- Install the fasteners securing the front air inlet panel assembly to the battery tray and cowl.
Tighten: Tighten the front air inlet panel assembly fasteners to 6 N.m (53 lb in).
- The air inlet grill panel. Refer to Air Inlet Grille Panel Replacement (LHD) or Air Inlet Grille Panel Replacement (RHD) in Body Front End.
- RHD
The wiper motor module. Refer to Wiper Motor Module Replacement (LHD) or Wiper Motor Module Replacement (RHD) in Wipers/Washer Systems.
- LHD
NOTE:
Refer to Fastener Notice
in Cautions and Notices.
