Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Remove the right camshaft cover. Refer to Camshaft Cover Replacement - Right .
  2. Remove the right camshaft drive sprockets. Refer to Camshaft Drive Sprocket Replacement .

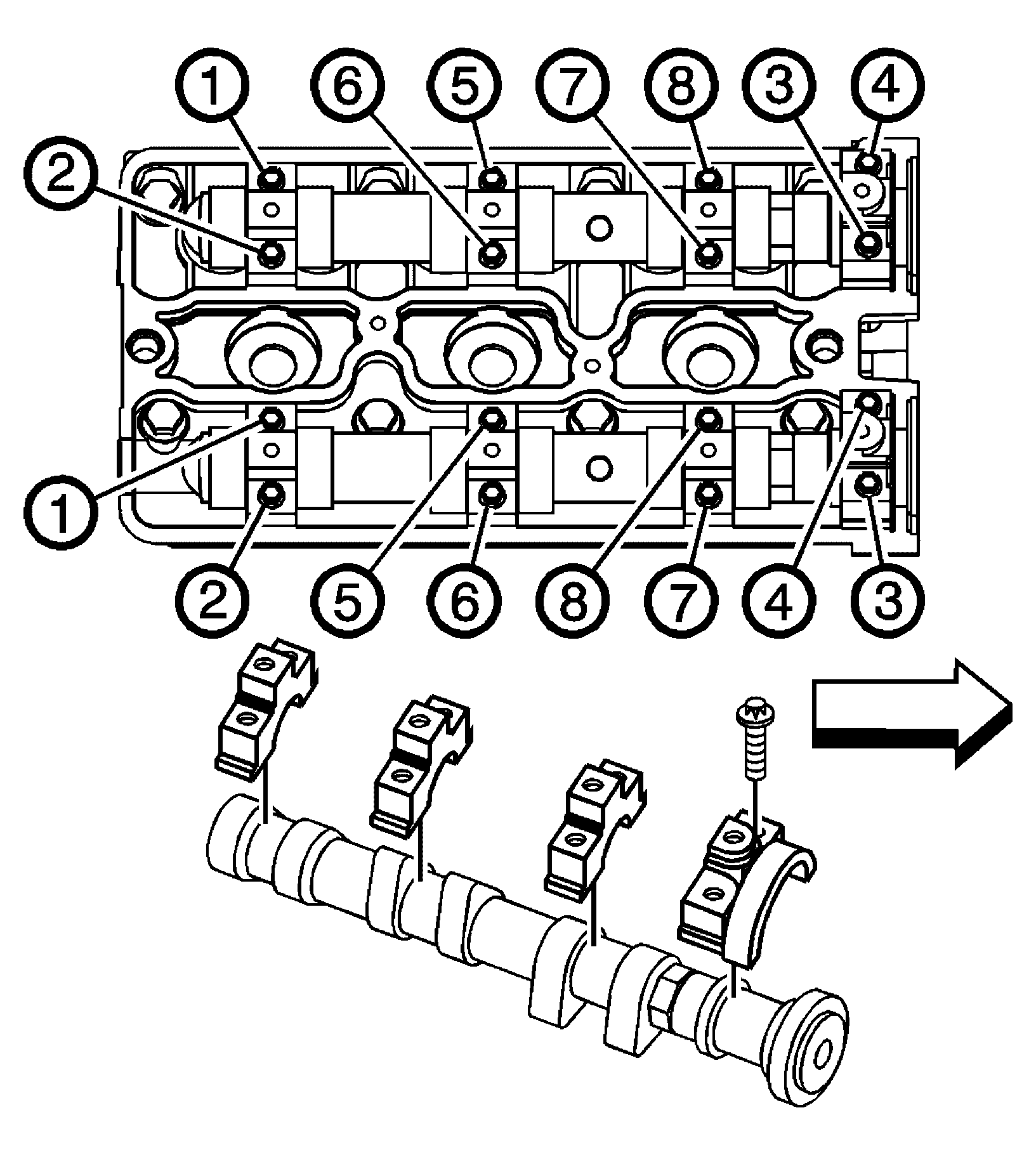

    3. Fig 1: Identifying Camshaft Bearing Cap Bolt Loosening Sequence
    GM797531Courtesy of GENERAL MOTORS CORP.
  3. Alternately loosen the camshaft bearing cap bolts a few turns at a time using the loosening sequence.
  4. Remove the camshaft bearing cap bolts.
    5. Fig 2: Identifying Code Marks On Camshaft Bearing Caps
    GM159111Courtesy of GENERAL MOTORS CORP.
  5. Remove the camshaft bearing caps. Note the code marks on the bearing caps (L1, L2, L3, etc.).

    The bearing caps for the right cylinder head is marked with an L, followed by a number.

  6. Remove the camshafts from the cylinder head.
  7. Remove the camshaft seals.
  8. Clean all of the bearing surfaces.
  9. Clean all of the sealing surfaces.
  10. Clean and inspect the camshafts. Refer to Camshaft and Bearings Cleaning and Inspection .
