Installation Procedure

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Installing O-Ring Seals To Camshaft Cover
    GM345851Courtesy of GENERAL MOTORS CORP.
  1. Lightly coat the new O-ring seals with clean engine oil prior to installation to assist in holding the O-ring seals to the camshaft cover.
  2. Install the camshaft cover seals to the camshaft cover.
    3. Fig 2: Applying Thin Coat Of Silicone To Front & Back Of Seals
    GM345856Courtesy of GENERAL MOTORS CORP.
  3. Apply a thin coat of silicone sealer GM P/N 12346286 (Canadian P/N 10953472), to the corners of the front and back of the seals.

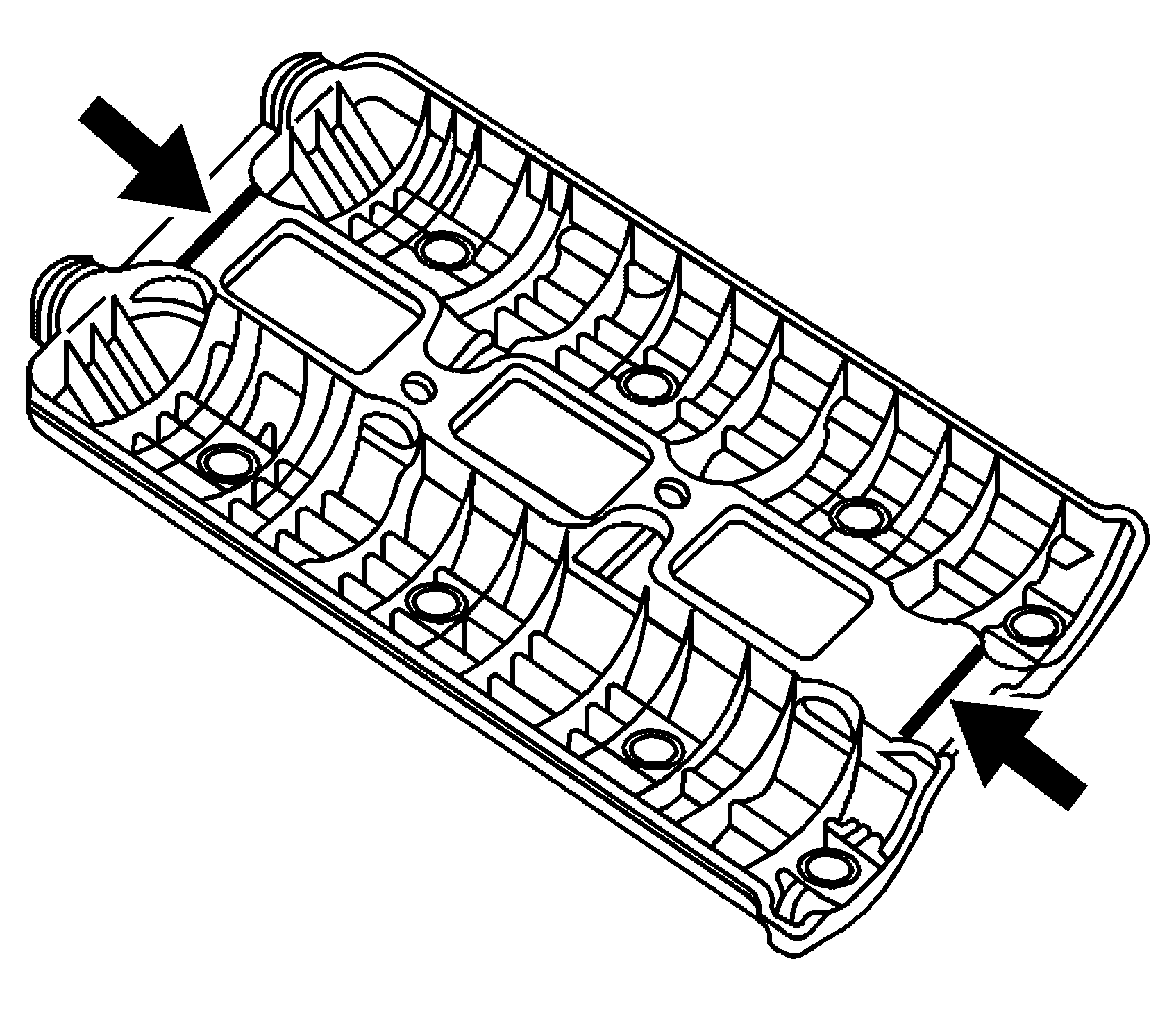

    4. Fig 3: Applying Bead Of Silicone Sealer At Front & Rear Of Camshaft Cover Between Seals
    GM803449Courtesy of GENERAL MOTORS CORP.
  4. Apply a 3 mm (0.12 in) bead of silicone sealer GM P/N 12346286 (Canadian P/N 10953472), at the front and rear of the camshaft cover between the seals.
    5. Fig 4: Removing & Installing Right Camshaft Cover
    GM821101Courtesy of GENERAL MOTORS CORP.
  5. Position the camshaft cover (2) to the cylinder head, aligning the datum with the hole in the cylinder head.
    6. NOTE: Refer to Fastener Notice in Cautions and Notices.
  6. Install the camshaft cover bolts (1).

    Tighten:  Tighten the camshaft cover bolts to 8 N.m (71 lb in).

  7. Install the knock sensor wire harness bracket and bolt.

    Tighten:  Tighten the knock sensor wire harness bracket bolt to 8 N.m (71 lb in).

  8. Install the right ignition coil. Refer to Ignition Coil(s) Replacement - Bank 1 in Engine Controls-2.6L and 3.2L.
  9. Install the intake manifold. Refer to Intake Manifold Replacement .
