Water Crossover Removal

WARNING: This page is about a different variant/trim than selected.

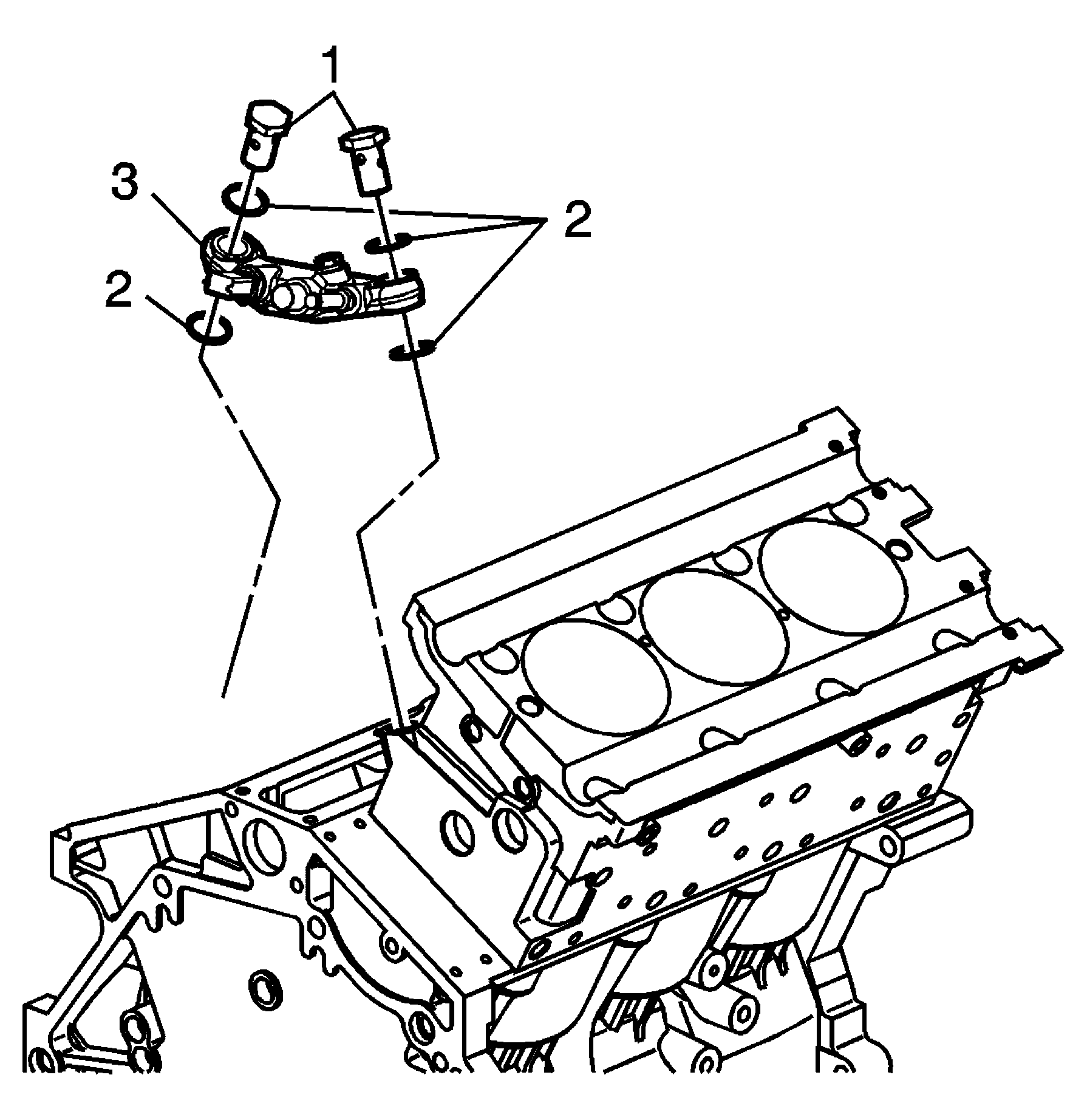

    Fig 1: Water Crossover, Bolts & Seals
    GM769013Courtesy of GENERAL MOTORS CORP.
  1. Remove the water crossover bolts (1).
  2. Remove the water crossover upper seals (2).
  3. Remove the water crossover (3).
  4. Remove the water crossover lower seals (2).
