Timing Belt Cover Removal - Rear

WARNING: This page is about a different variant/trim than selected.

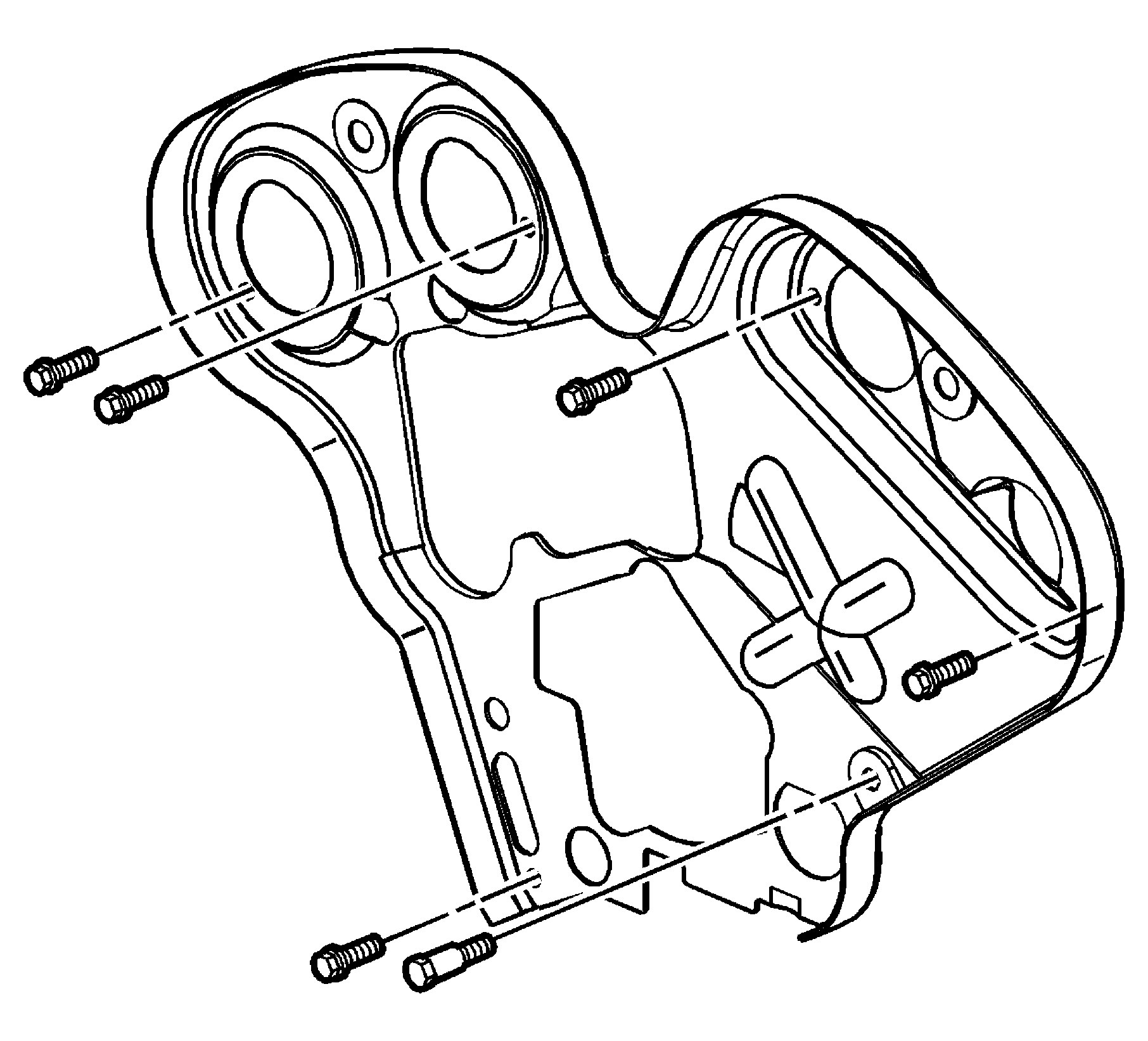

    Fig 1: Removing Timing Belt Rear Cover Bolts
    GM769017Courtesy of GENERAL MOTORS CORP.
  1. Remove the timing belt rear cover bolts.
  2. Unclip the knock sensor wires.
  3. Remove the timing belt rear cover.

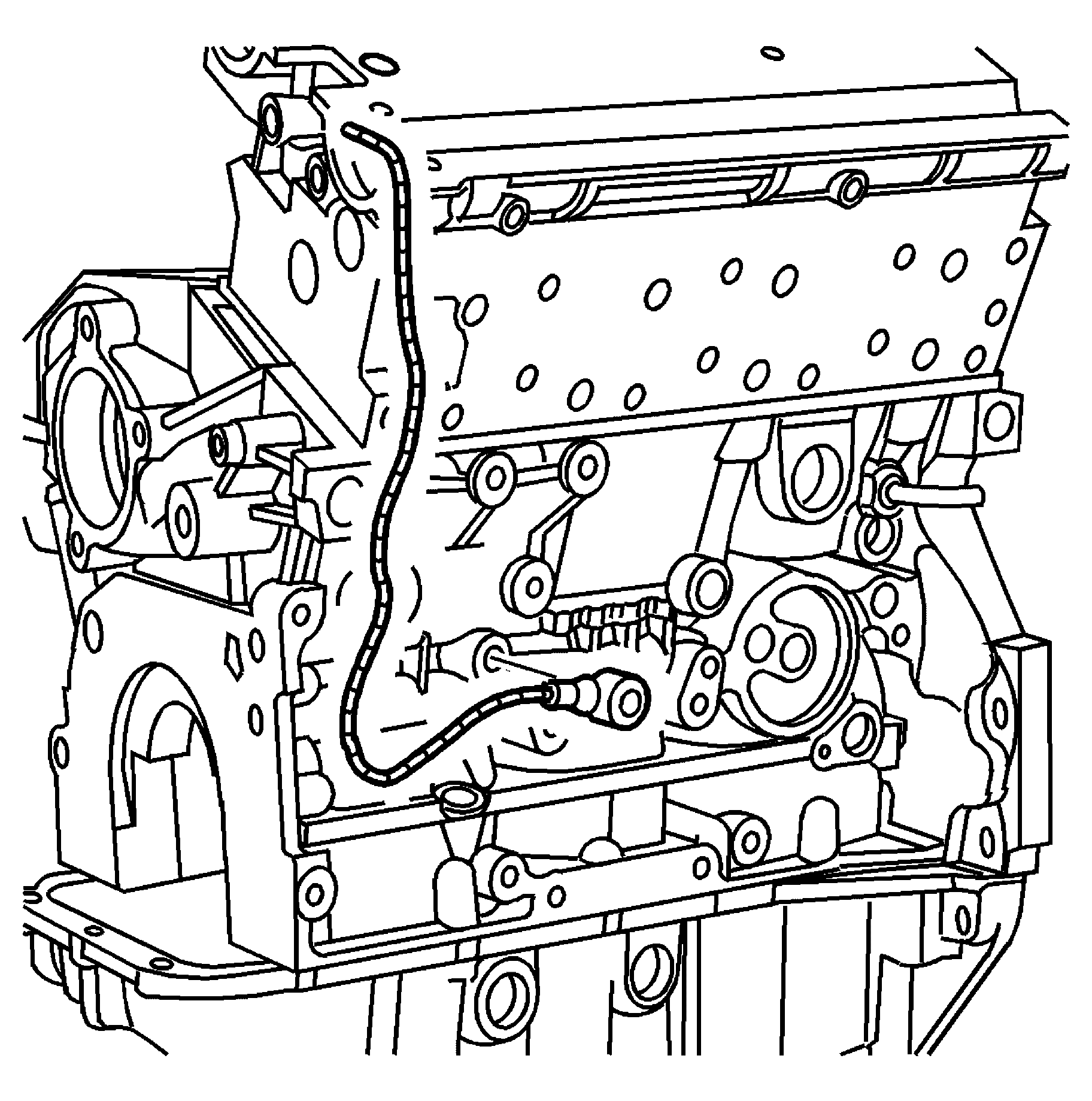

    4. Fig 2: Removing & Installing Left Side Knock Sensor
    GM797520Courtesy of GENERAL MOTORS CORP.
  4. Remove the left side knock sensor bolt.
  5. Remove the left side knock sensor.

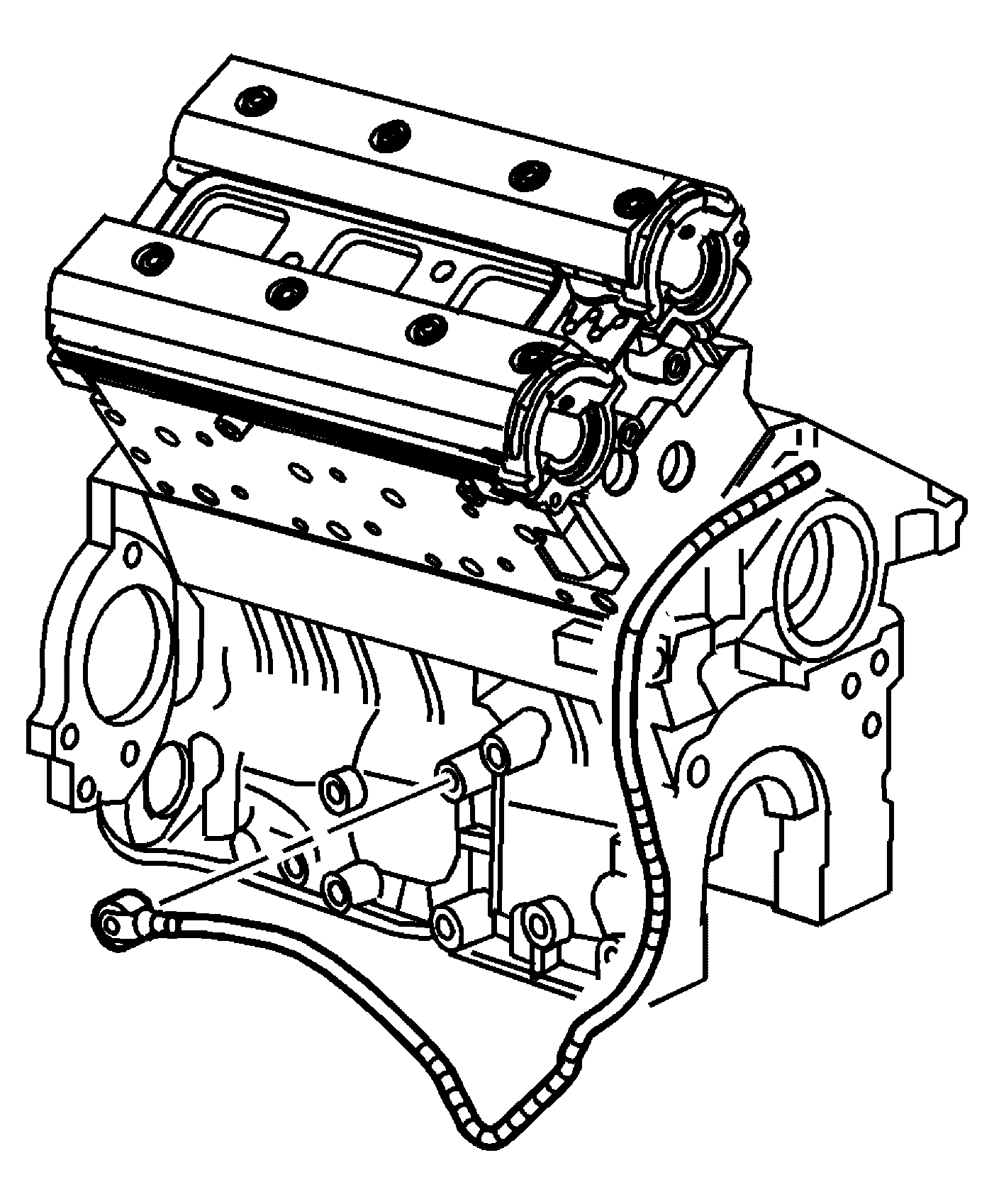

    6. Fig 3: Removing & Installing Right Side Knock Sensor
    GM797523Courtesy of GENERAL MOTORS CORP.
  6. Remove the right side knock sensor bolt.
  7. Remove the right side knock sensor.
