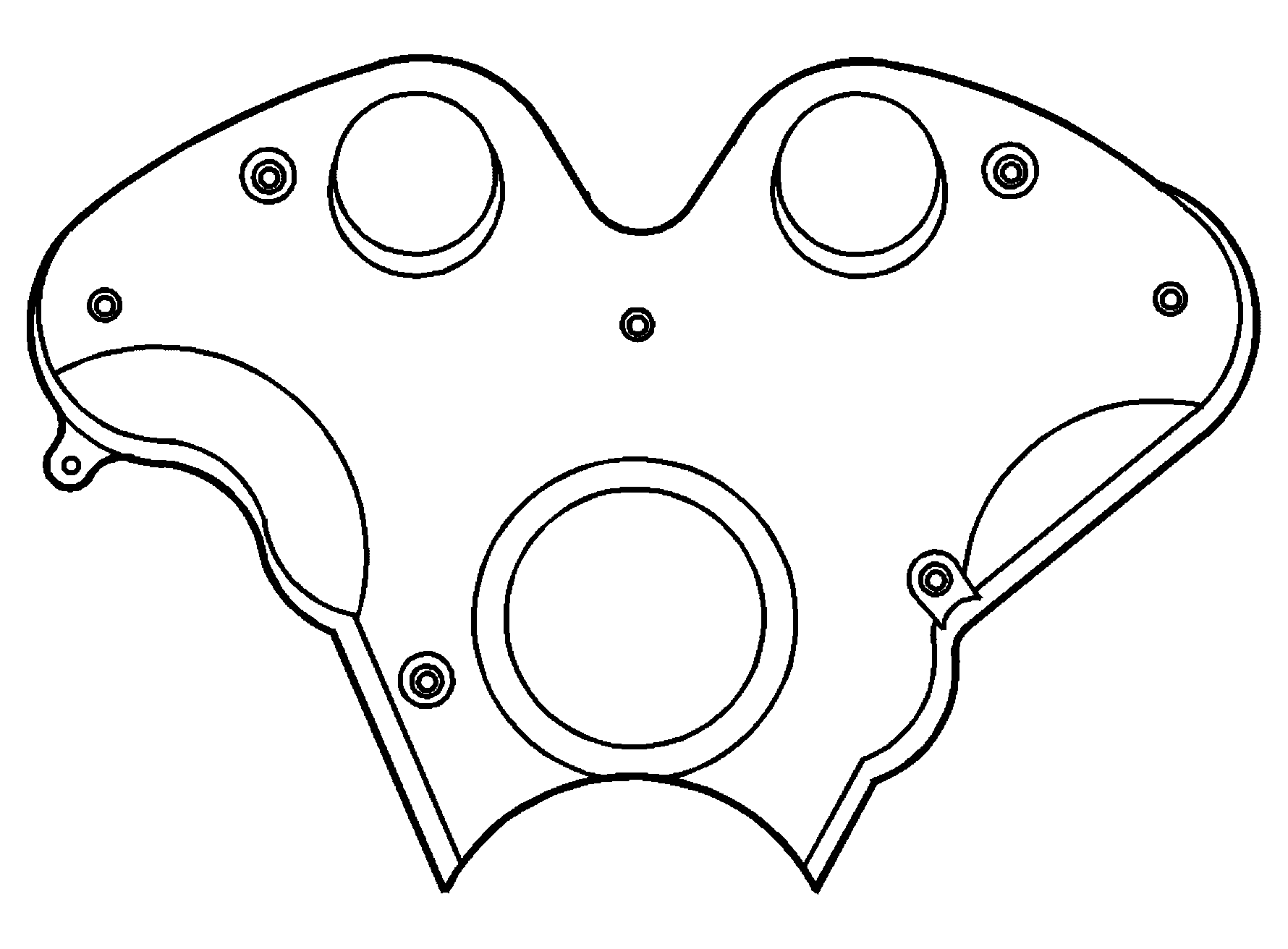

Timing Belt Cover Cleaning and Inspection - Front
WARNING: This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS CORP.
- Clean the timing belt cover in solvent.
- Inspect for the following conditions:
- Cracked bolt holes
- Cracked or torn gasket
- Cracked or worn areas of the cover
- Replace the timing belt cover as necessary.
