Oil Pump Pipe and Screen Assembly Removal

WARNING: This page is about a different variant/trim than selected.

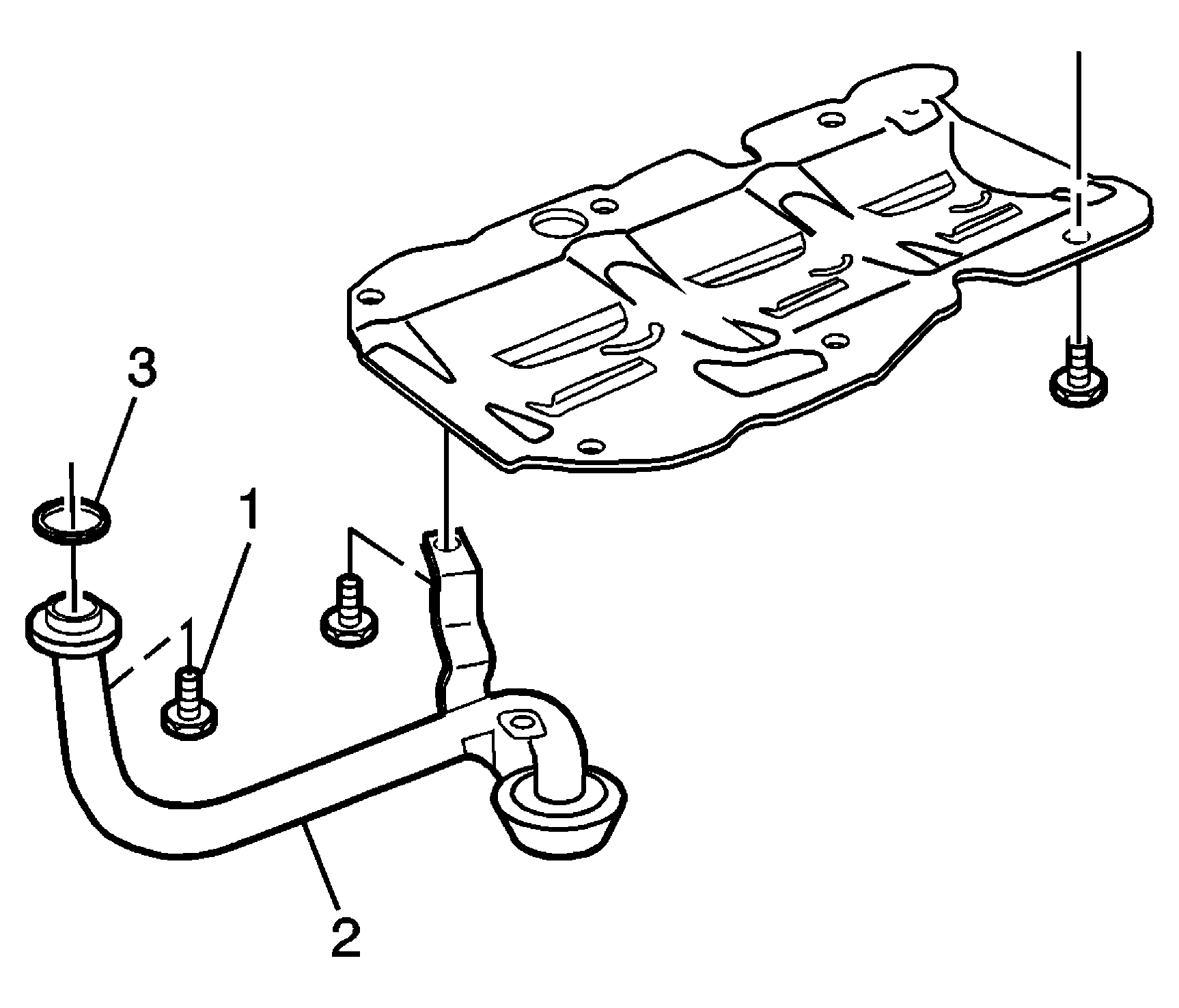

    Fig 1: Removing & Installing Oil Pump Pipe & Screen Assembly
    GM880417Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil intake pipe bolts (1).
  2. Remove the oil intake pipe (2).
  3. Remove the oil intake pipe O-ring (3).
