Oil Pump Pipe and Screen Assembly Installation

WARNING: This page is about a different variant/trim than selected.

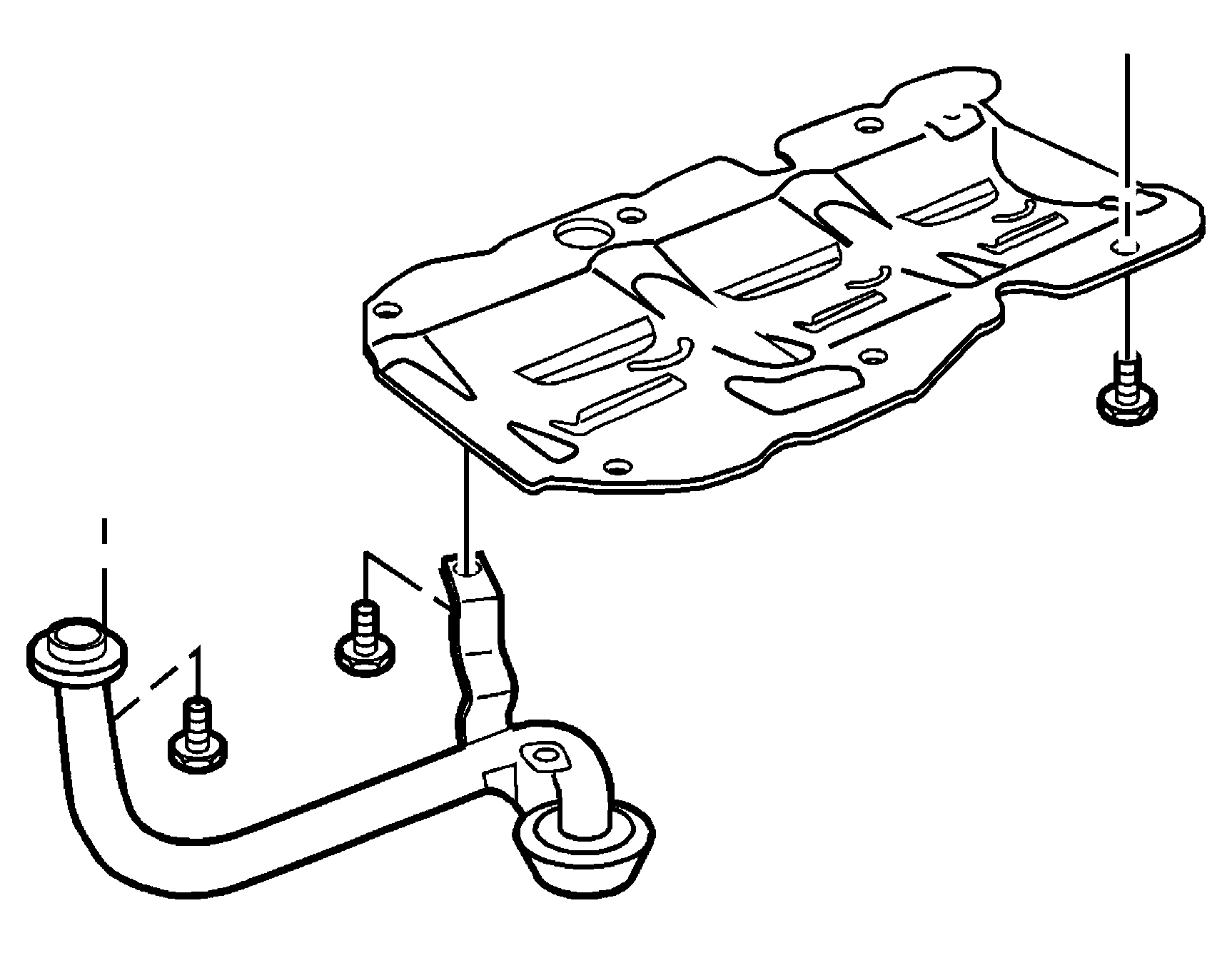

    Fig 1: Installing Oil Intake Pipe
    GM788810Courtesy of GENERAL MOTORS CORP.
  1. Install the oil intake pipe O-ring.
  2. Install the oil intake pipe.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the oil intake pipe bolts.

    Tighten:  Tighten the oil intake pipe bolts to 8 N.m (71 lb in).

  4. Apply thread adhesive GM P/N 12345382 (Canadian P/N 10953489) to the oil intake pipe brace bolts.
  5. Install the oil intake pipe brace bolts.

    Tighten:  Tighten the oil intake pipe brace bolts to 8 N.m (71 lb in).
