Oil Pan Removal

WARNING: This page is about a different variant/trim than selected.

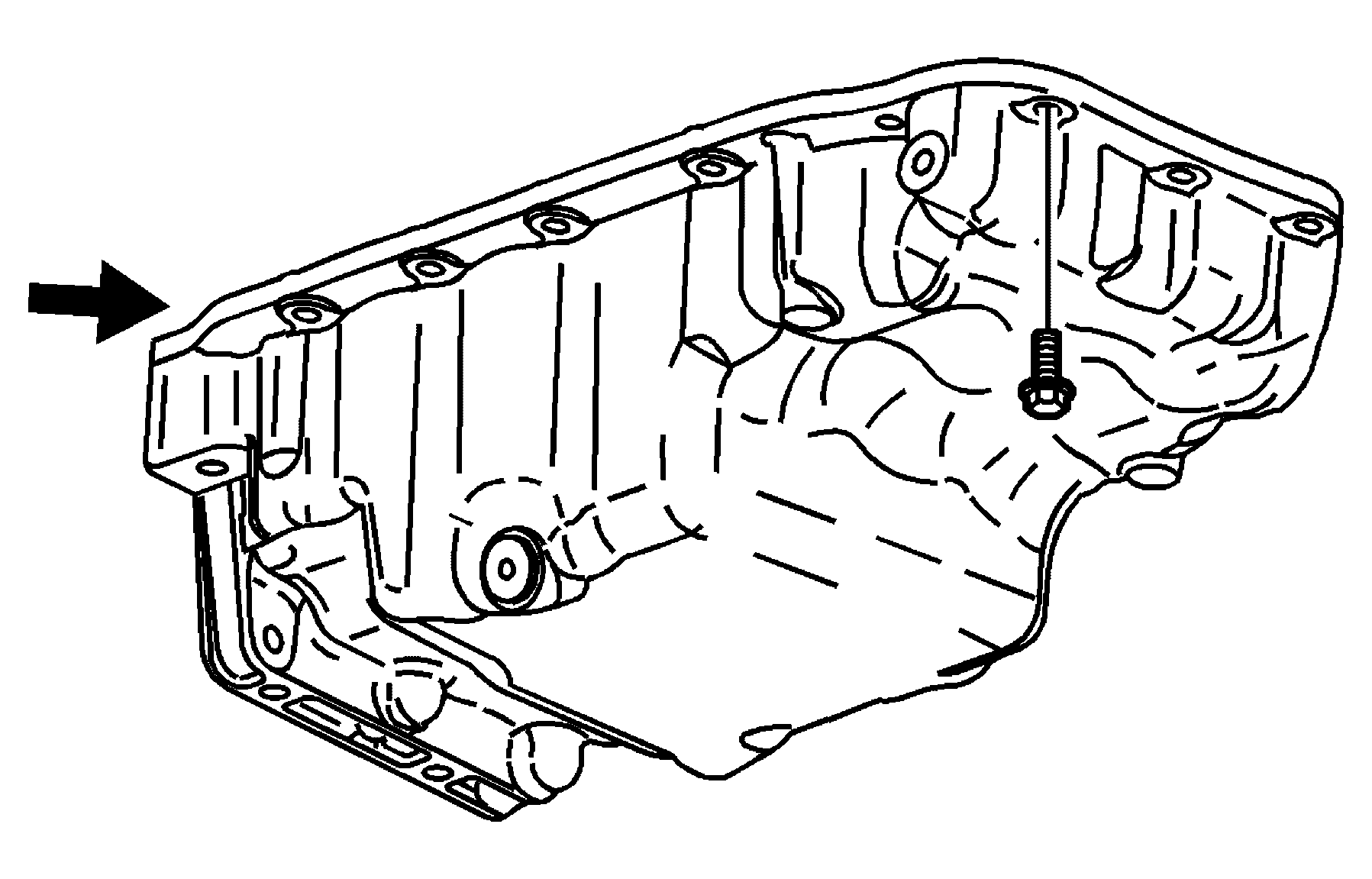

    Fig 1: Removing & Installing Oil Pan Bolts
    GM815409Courtesy of GENERAL MOTORS CORP.
  1. Remove the oil pan bolts.
    2. IMPORTANT: When removing the oil pan, use only designated pry points at the back of the pan to prevent damage to the sealing flange.
  2. Remove the oil pan.
