Oil Cooler Removal

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Removing & Installing Engine Oil Cooler Pipe Fittings
    GM769019Courtesy of GENERAL MOTORS CORP.
  1. Remove engine oil cooler pipe fittings from oil cooler.
  2. Remove engine oil cooler pipe seals from oil cooler.
    3. Fig 2: Removing & Installing Engine Oil Cooler Pipe Fittings From Engine Block
    GM159492Courtesy of GENERAL MOTORS CORP.
  3. Remove the engine oil cooler pipe fittings from the engine block.
  4. Remove the engine oil cooler pipes from the engine.

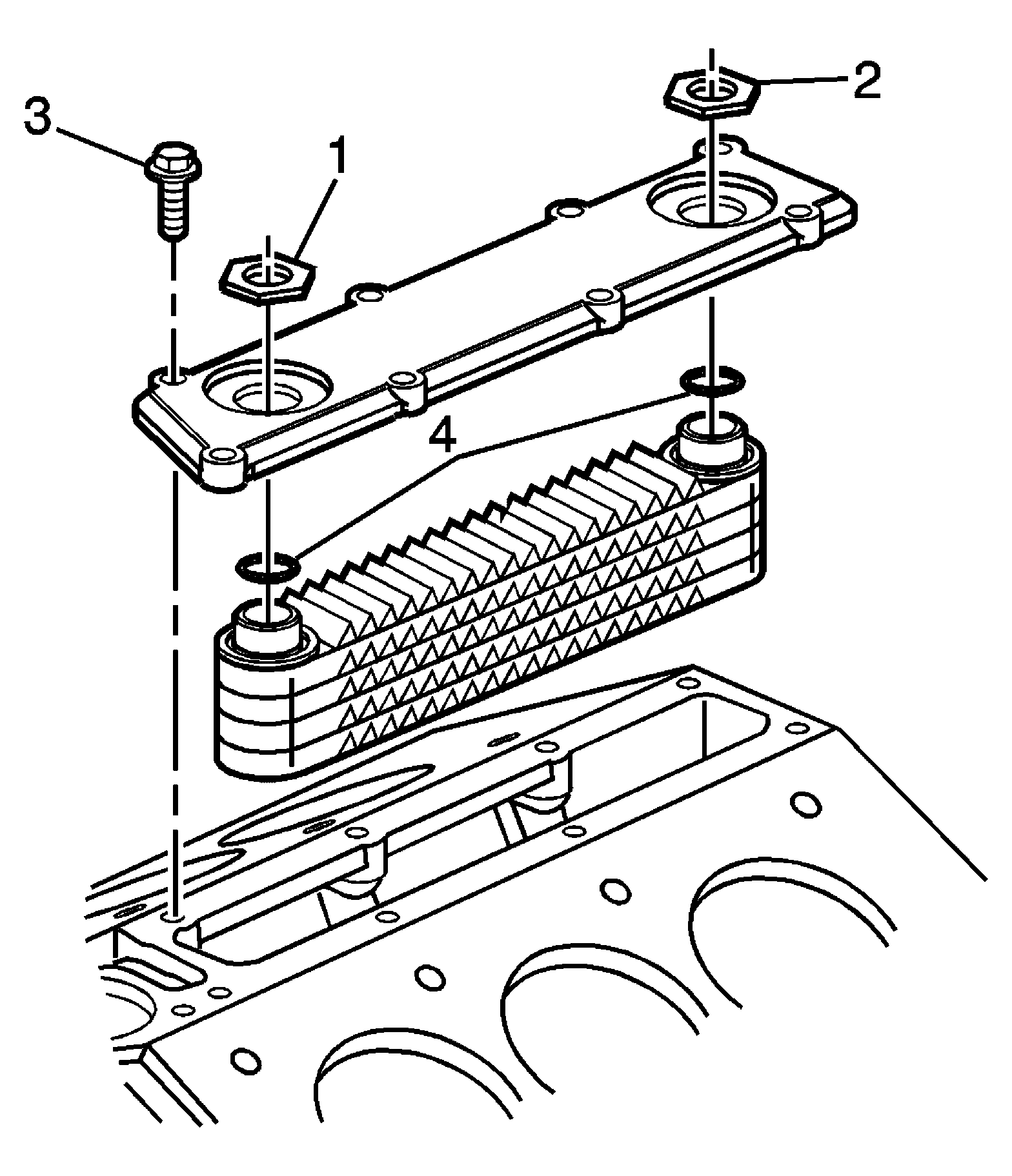

    5. Fig 3: Removing & Installing Engine Oil Cooler
    GM880414Courtesy of GENERAL MOTORS CORP.
  5. Remove the engine oil cooler inlet nut (1).
  6. Remove the engine oil cooler outlet nut (2).
  7. Remove the engine oil cooler cover bolts (3).
  8. Remove the engine oil cooler.
  9. Remove the engine oil cooler inlet/outlet O-ring seals (4).
