Oil Baffle Installation

WARNING: This page is about a different variant/trim than selected.

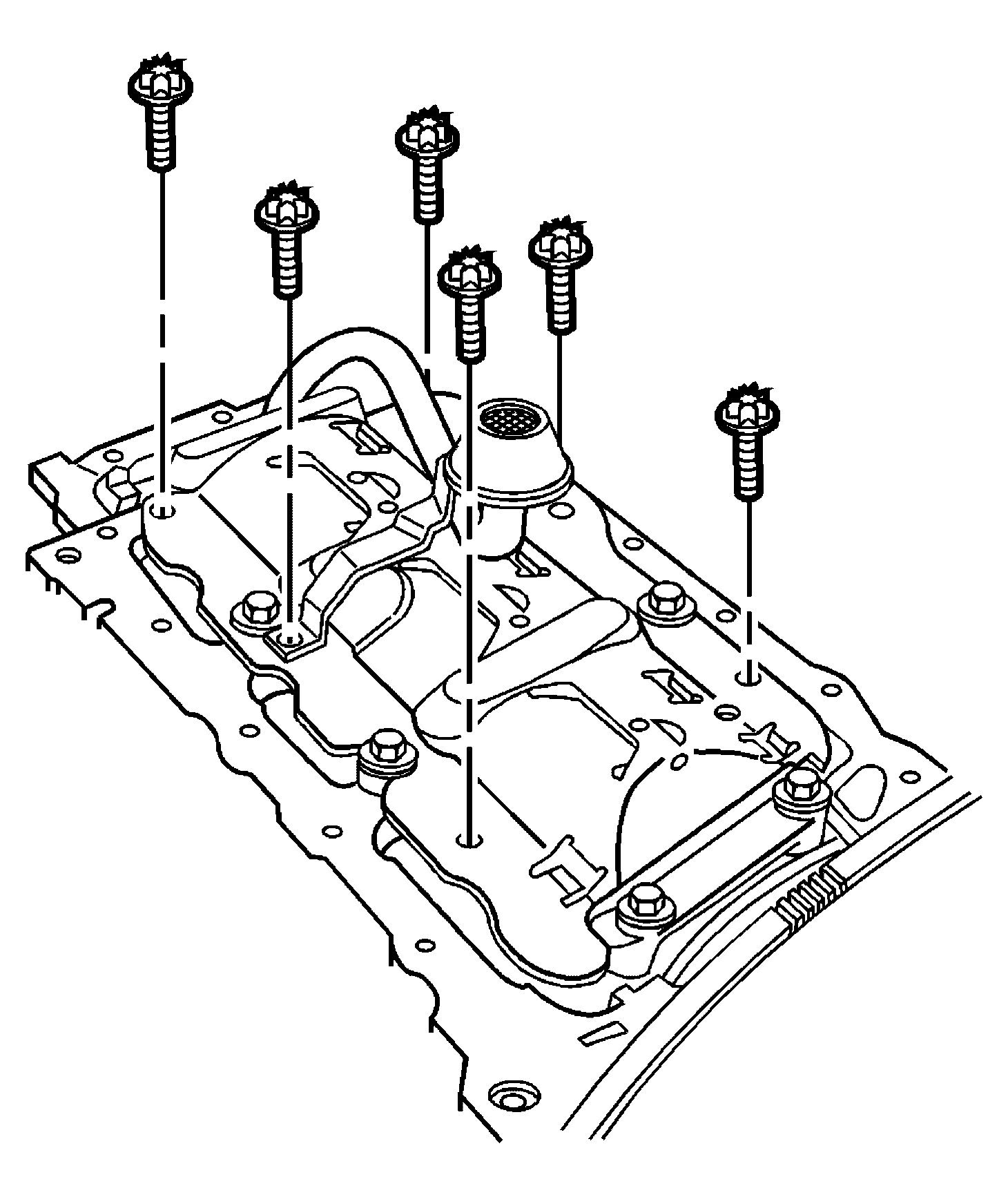

Fig 1: Removing & Installing Oil Baffle

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the oil pan baffle bolts.
Tighten: Tighten the oil pan baffle bolts to 8 N.m (71 lb in).
