Intake Plenum Manifold Disassemble

WARNING: This page is about a different variant/trim than selected.

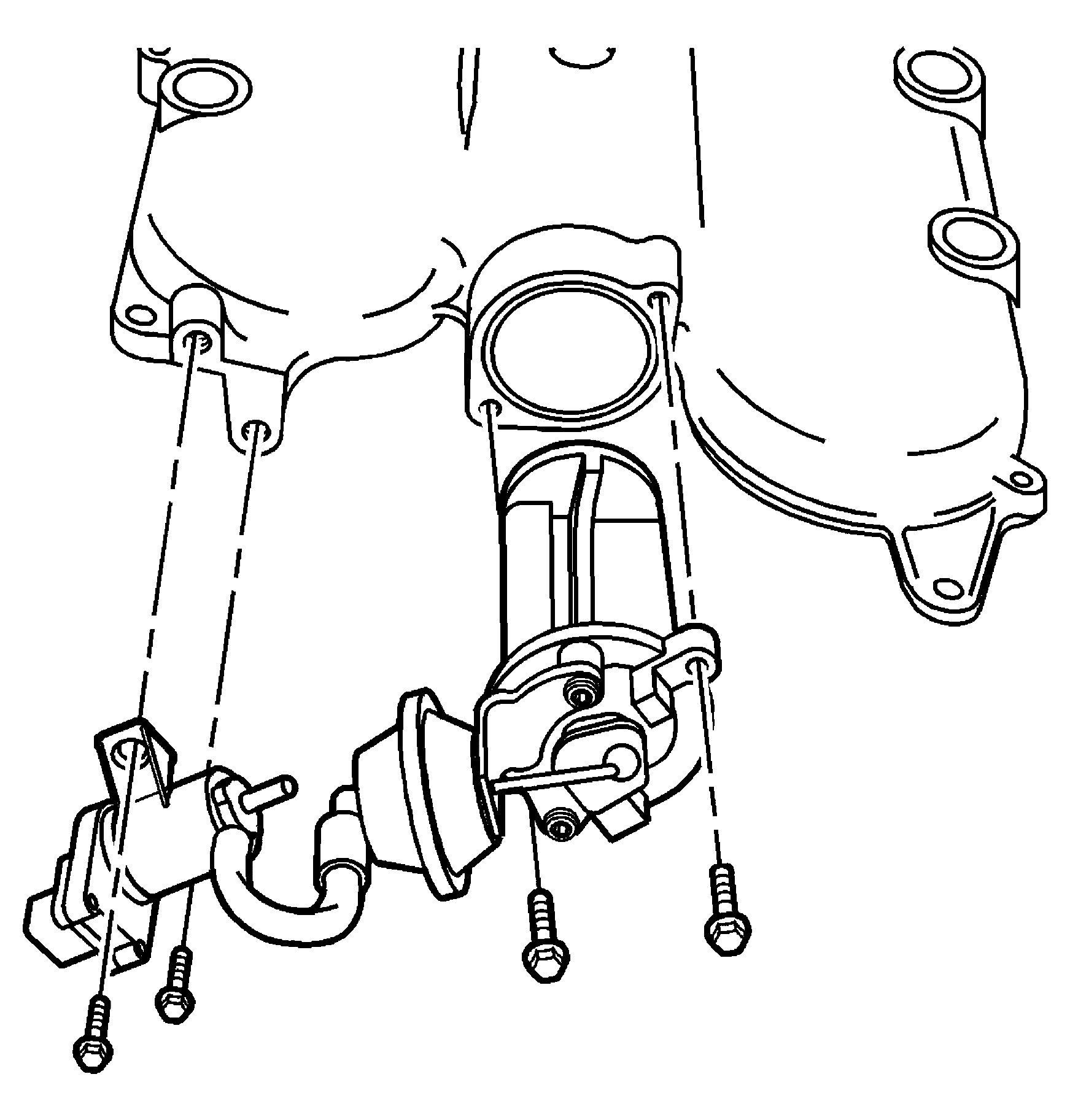

    Fig 1: Removing & Installing Intake Plenum Turning Valve Bolts
    GM815393Courtesy of GENERAL MOTORS CORP.
  1. Remove the intake plenum turning valve bolts.
  2. Remove the intake plenum turning solenoid bolts.
  3. Remove the intake plenum turning valve, intake plenum tuning solenoid and O-ring.

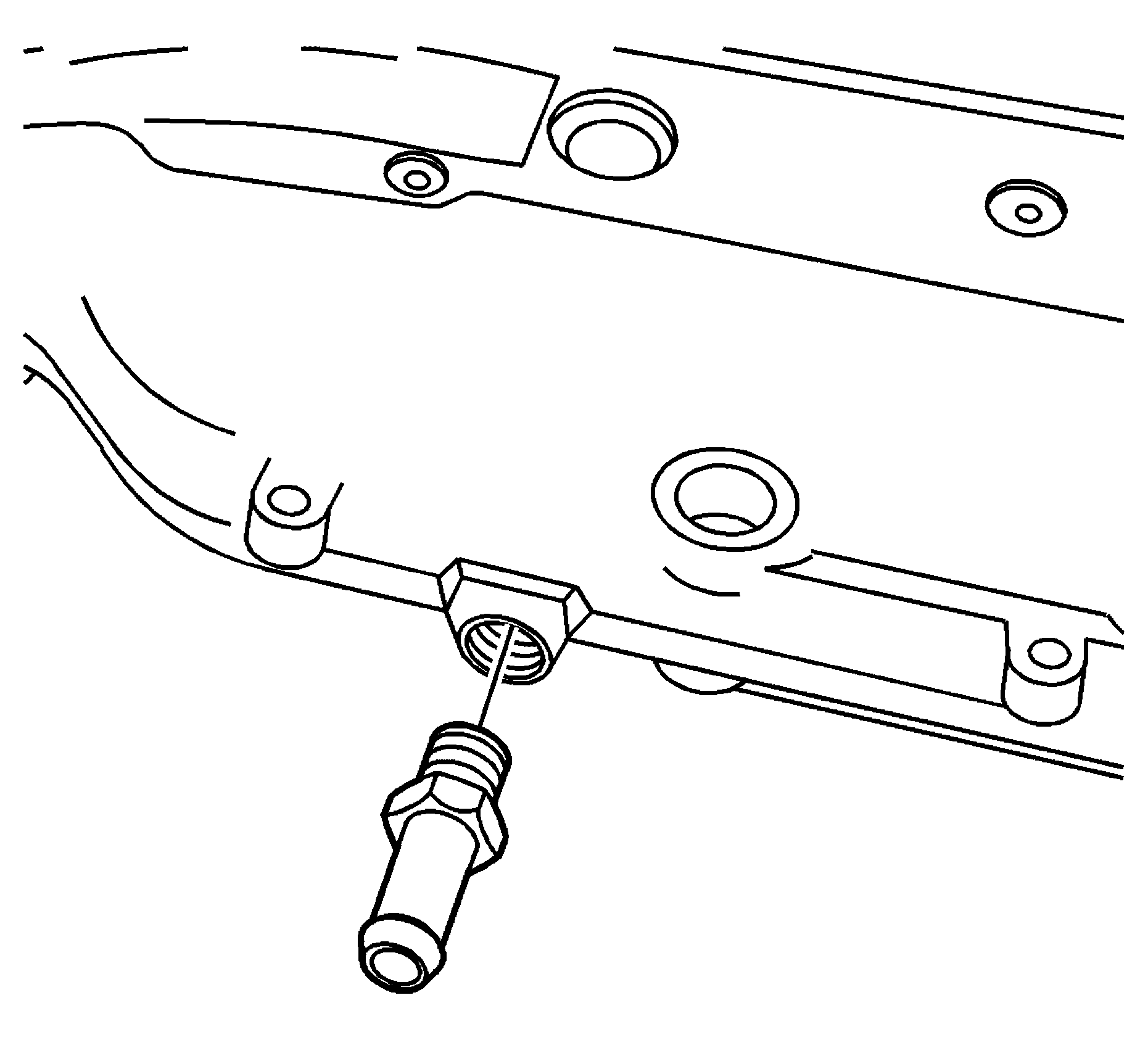

    4. Fig 2: Removing & Installing Vacuum Brake Booster Fitting From Intake Plenum
    GM815395Courtesy of GENERAL MOTORS CORP.
  4. Remove the vacuum brake booster fitting from the intake plenum.
