Intake Manifold Flange Installation

WARNING: This page is about a different variant/trim than selected.

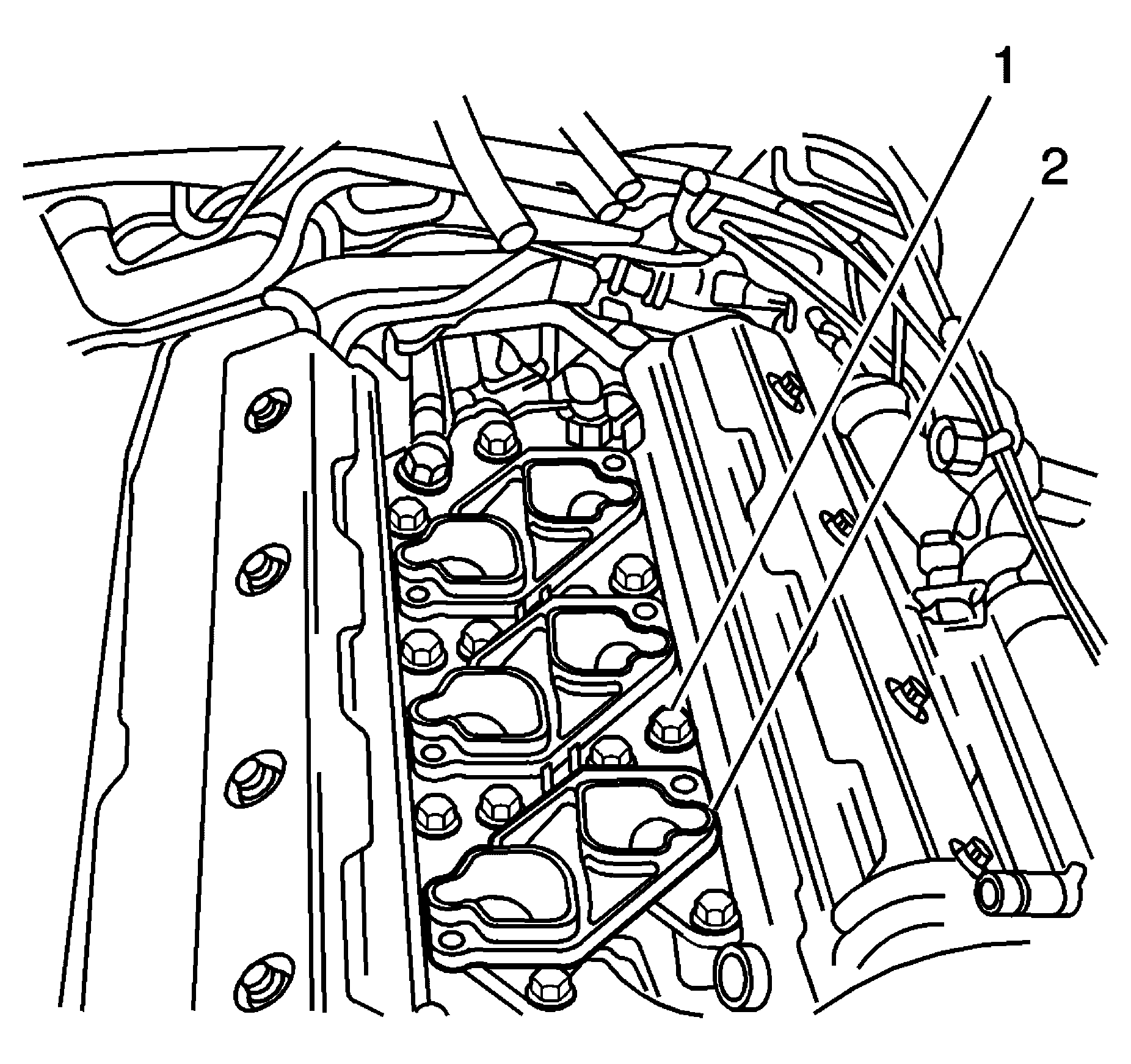

Fig 1: Intake Manifold Flange & Bolts

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Ensure the intake manifold flange seals are installed and properly seated.

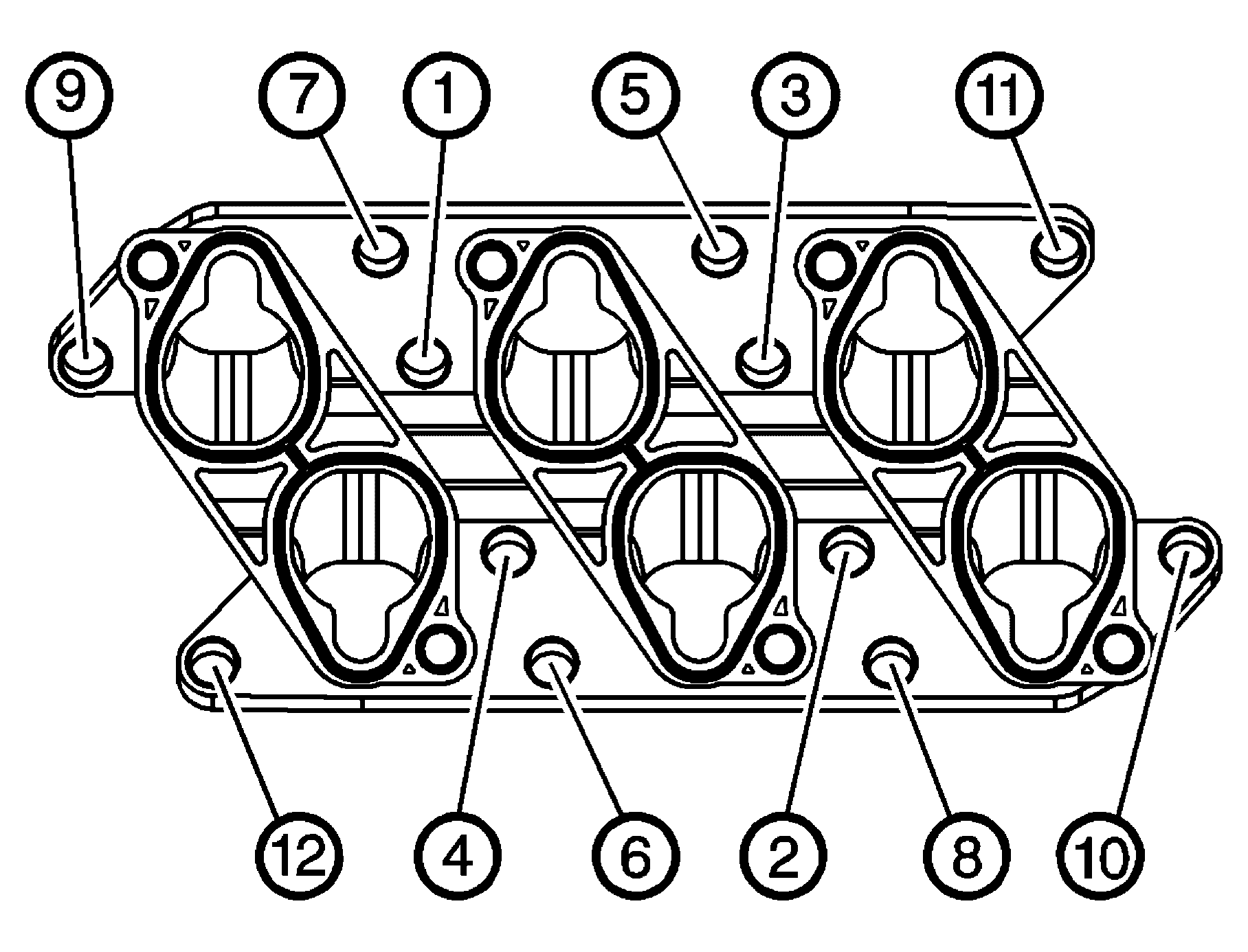

Fig 2: Intake Manifold Flange Bolt Tightening Sequence

Courtesy of GENERAL MOTORS CORP.

Apply thread adhesive GM P/N 12345382, (Canadian P/N 10953489), to the intake manifold flange bolts.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the intake manifold flange bolts.
Tighten: Tighten the intake manifold flange bolts using tightening sequence to 20 N.m (15 lb ft).
