Intake Manifold Cleaning and Inspection

WARNING: This page is about a different variant/trim than selected.

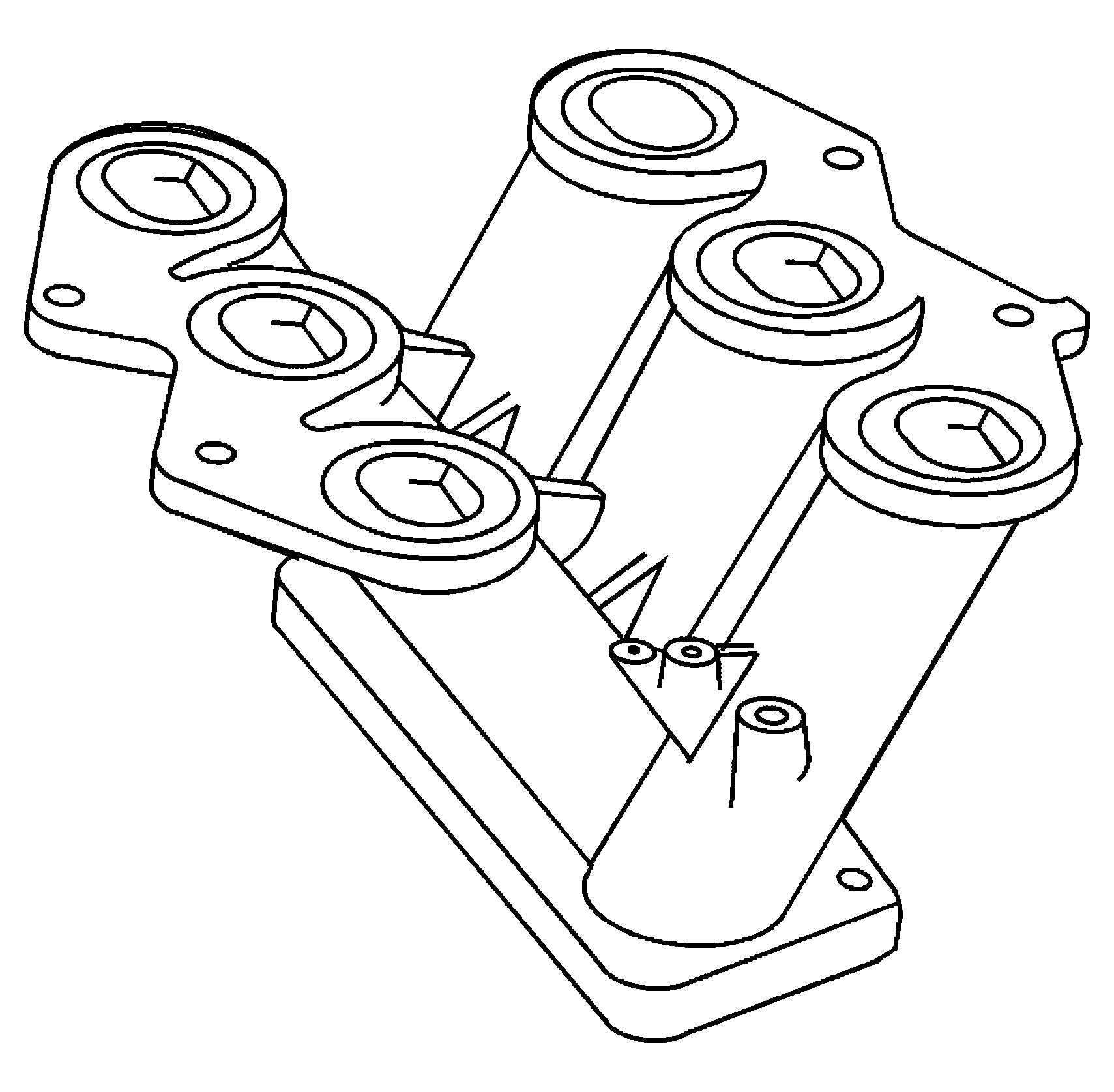

    Fig 1: Identifying Intake Manifold
    GM804909Courtesy of GENERAL MOTORS CORP.
  1. Clean the intake manifold in solvent.
  2. Inspect the intake manifold for the following:
    • Threaded holes for damage
    • Sealing mating surfaces for damage and nicks
  3. Replace the intake manifold as necessary.
