Intake Manifold Assemble

WARNING: This page is about a different variant/trim than selected.

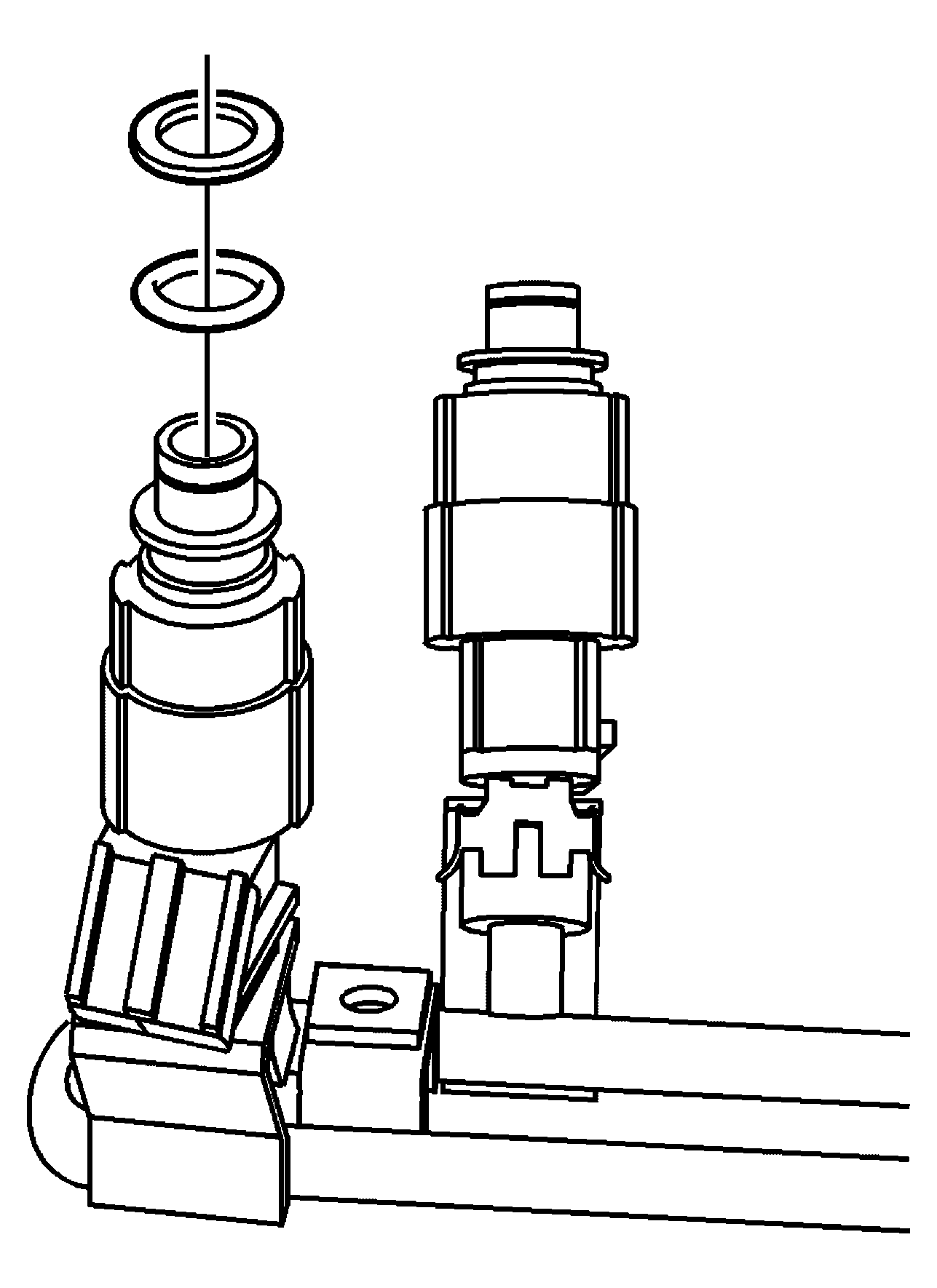

    Fig 1: Installing Injector O-Rings
    GM815403Courtesy of GENERAL MOTORS CORP.
  1. Lubricate the new injector O-rings with clean engine oil.
  2. Install the new injector O-rings on the injectors.

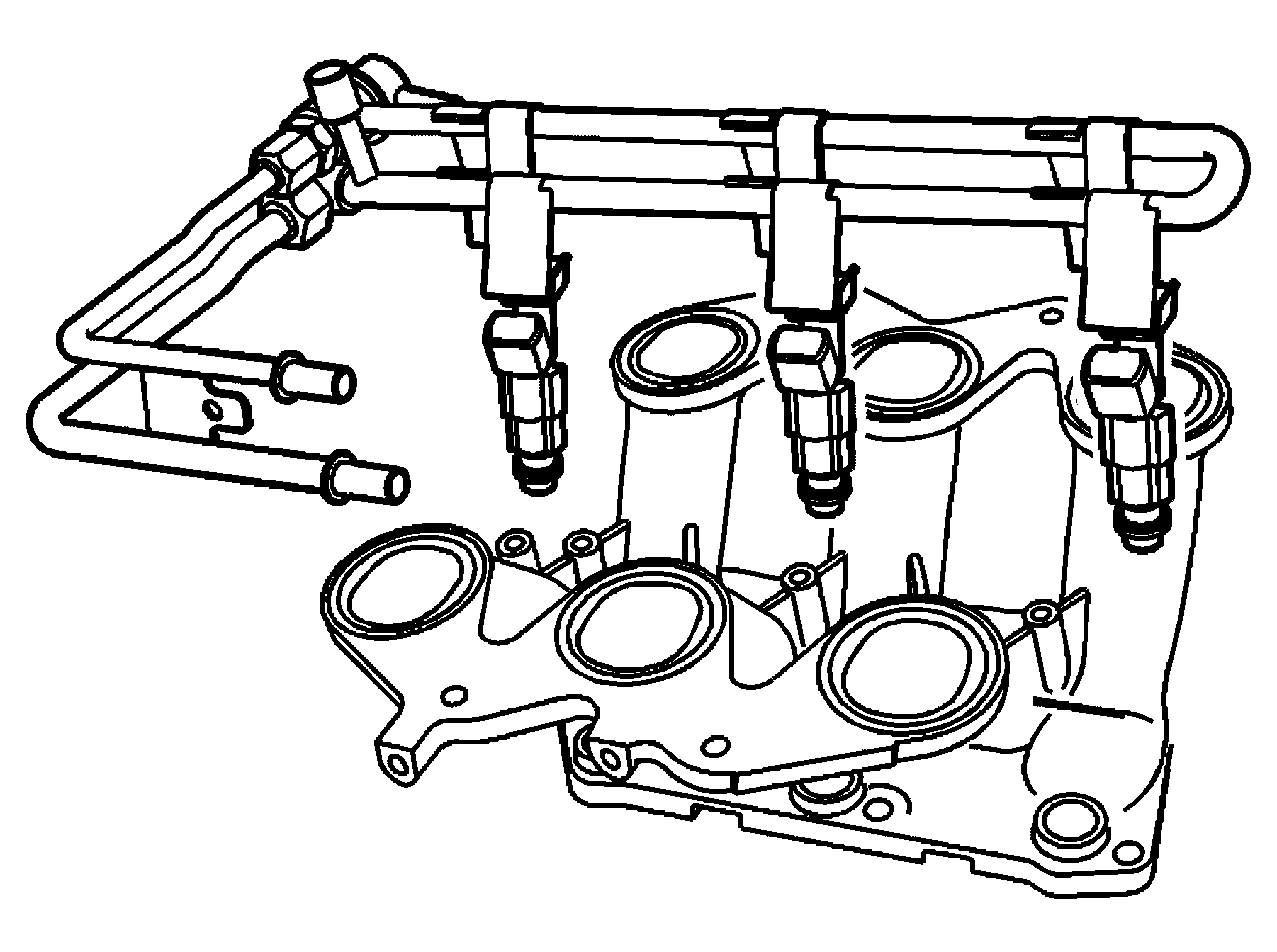

    3. Fig 2: Removing & Installing Fuel Rail & Fuel Injectors
    GM815402Courtesy of GENERAL MOTORS CORP.
  3. Install the fuel rail with the fuel injectors to the intake manifold.

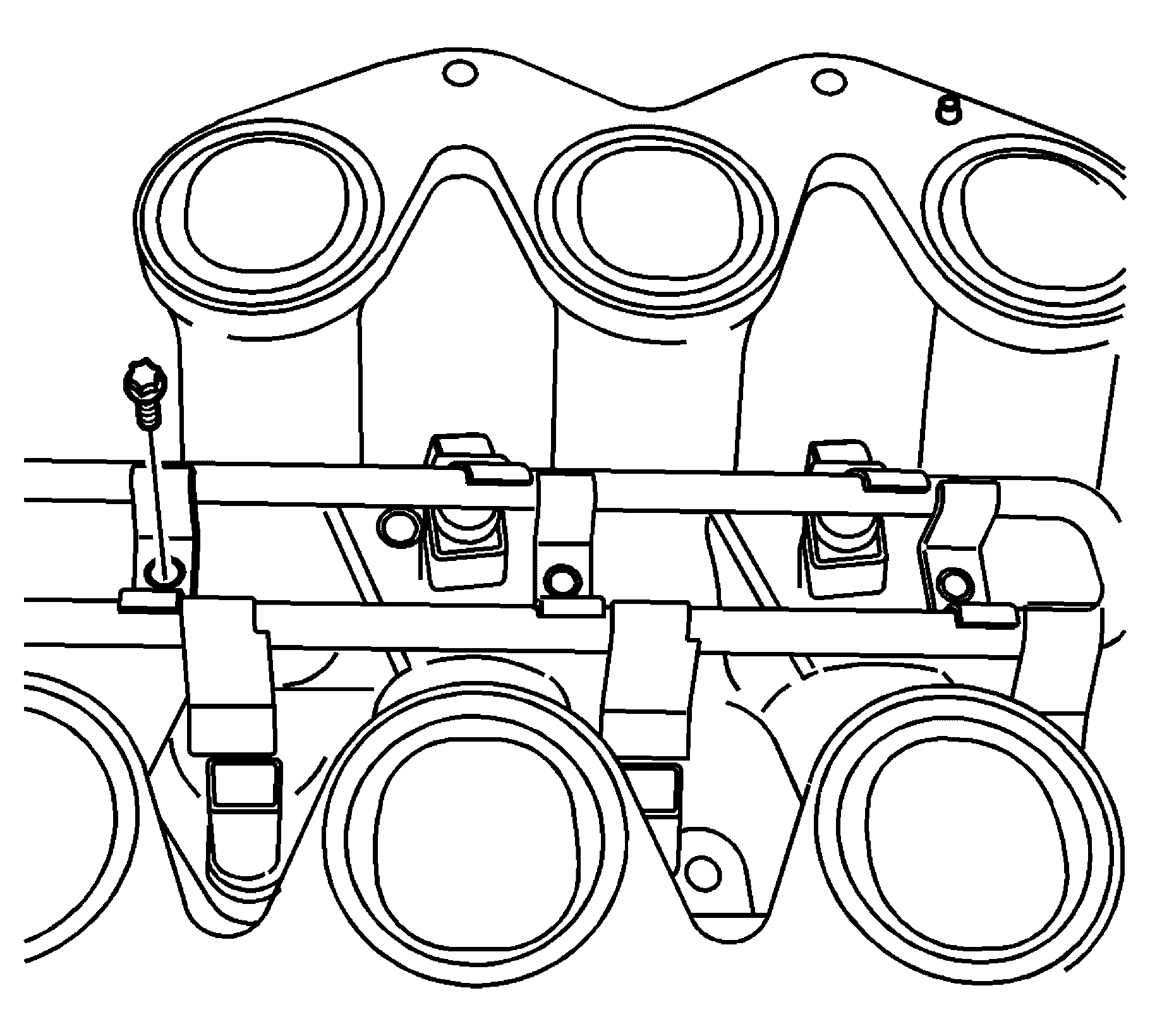

    4. Fig 3: Removing & Installing Fuel Rail Attaching Bolts From Intake Manifold
    GM815401Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  4. Install the fuel rail attaching bolts to the intake manifold.

    Tighten:  Tighten the fuel rail attaching bolts to 8 N.m (71 lb in).

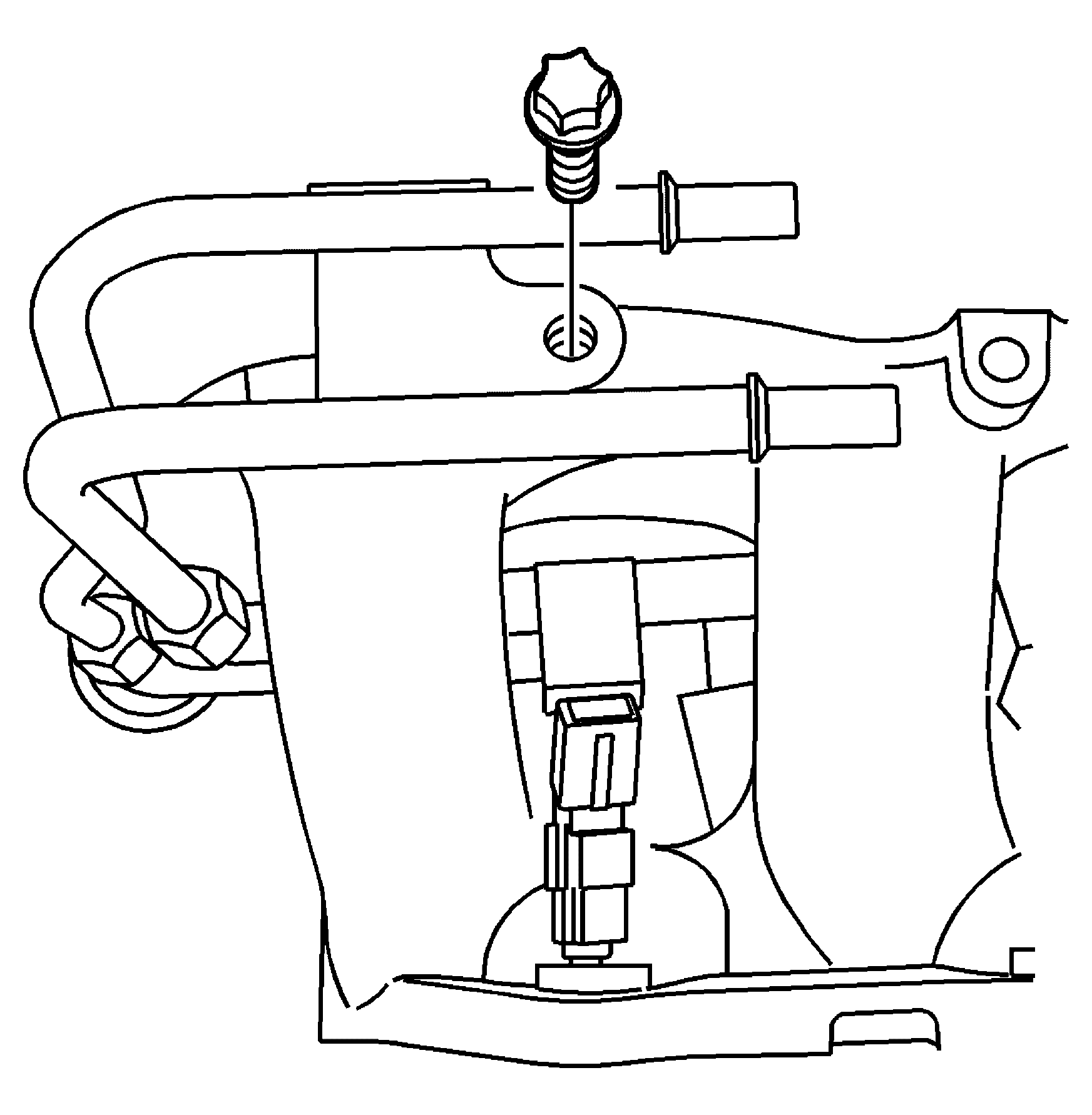

    5. Fig 4: Removing & Installing Fuel Rail Attaching Bolt Near Fuel Supply-Return Lines
    GM815398Courtesy of GENERAL MOTORS CORP.
  5. Install the fuel rail attaching bolt near the fuel supply-return lines.

    Tighten:  Tighten the fuel rail attaching bolts to 8 N.m (71 lb in).

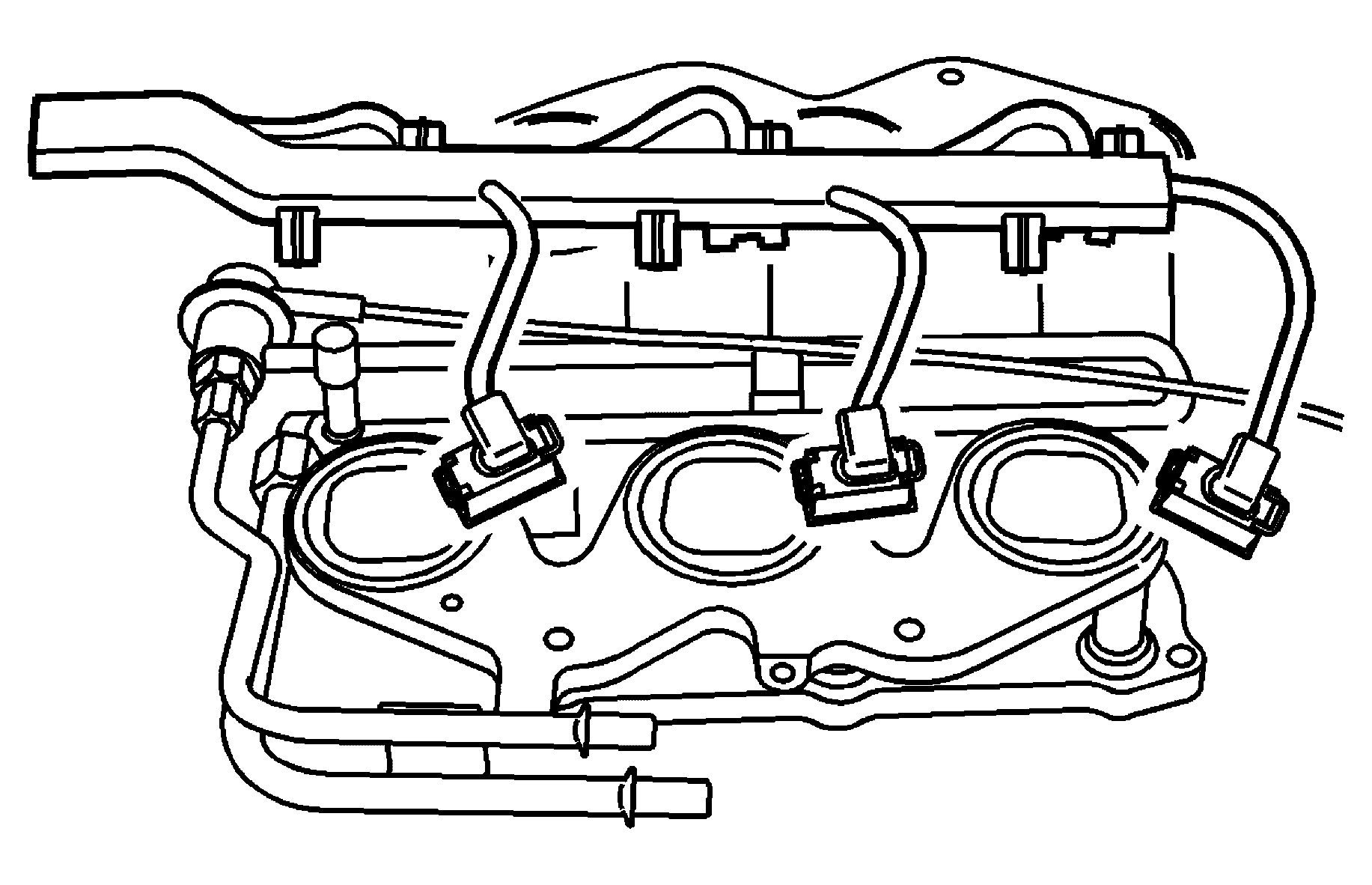

    6. Fig 5: Removing & Installing Wiring Harness & Connectors From Fuel Injectors
    GM815399Courtesy of GENERAL MOTORS CORP.
  6. Install the wiring harness and connectors to the fuel injectors.
