Exhaust Manifold Removal - Right

WARNING: This page is about a different variant/trim than selected.

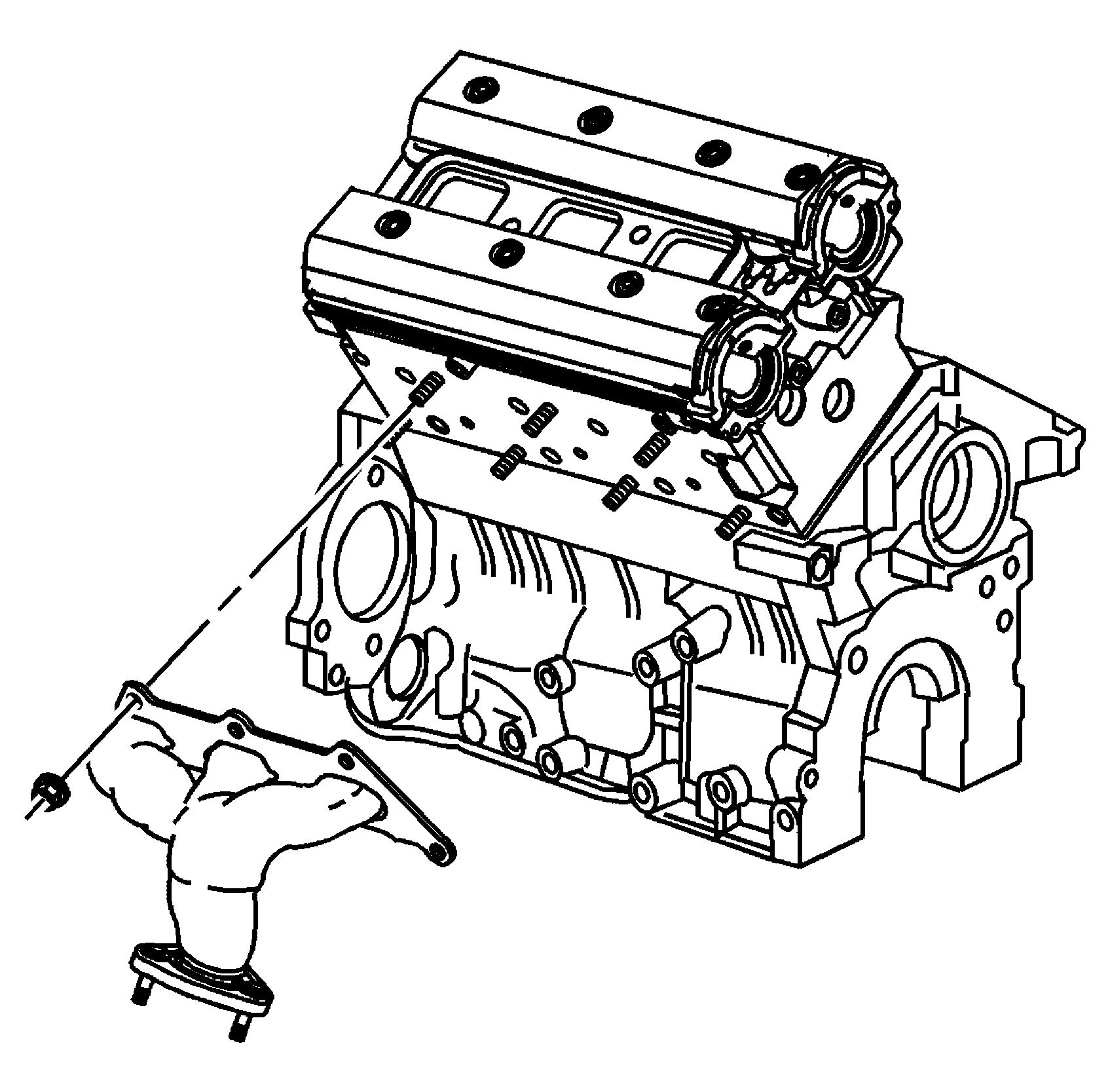

    Fig 1: Right Side Exhaust Manifold, Nuts & Gasket
    GM768998Courtesy of GENERAL MOTORS CORP.
  1. Remove the right side exhaust manifold nuts.
  2. Remove the right side exhaust manifold.
  3. Remove the right side exhaust manifold gasket.
