Exhaust Manifold Installation - Left

WARNING: This page is about a different variant/trim than selected.

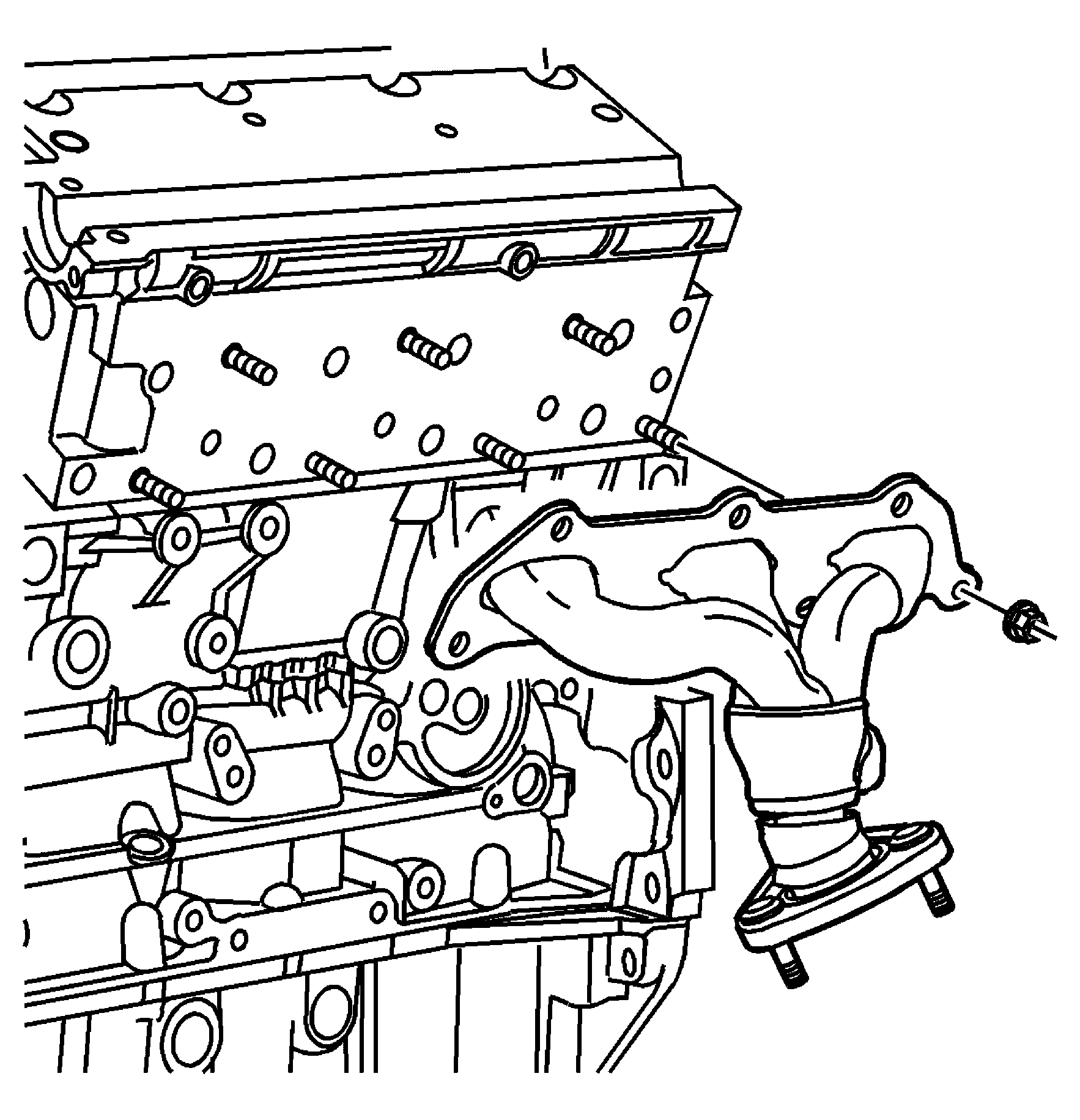

    Fig 1: Left Side Exhaust Manifold, Nuts & Gasket
    GM769000Courtesy of GENERAL MOTORS CORP.
  1. Install the left side exhaust manifold gasket.
  2. Install the left side exhaust manifold.
    3. NOTE: Refer to Fastener Notice in Cautions and Notices.
  3. Install the left side exhaust manifold nuts.

    Tighten:  Tighten the left side exhaust manifold nuts to 20 N.m (15 lb ft).
