Engine Flywheel Removal

WARNING: This page is about a different variant/trim than selected.

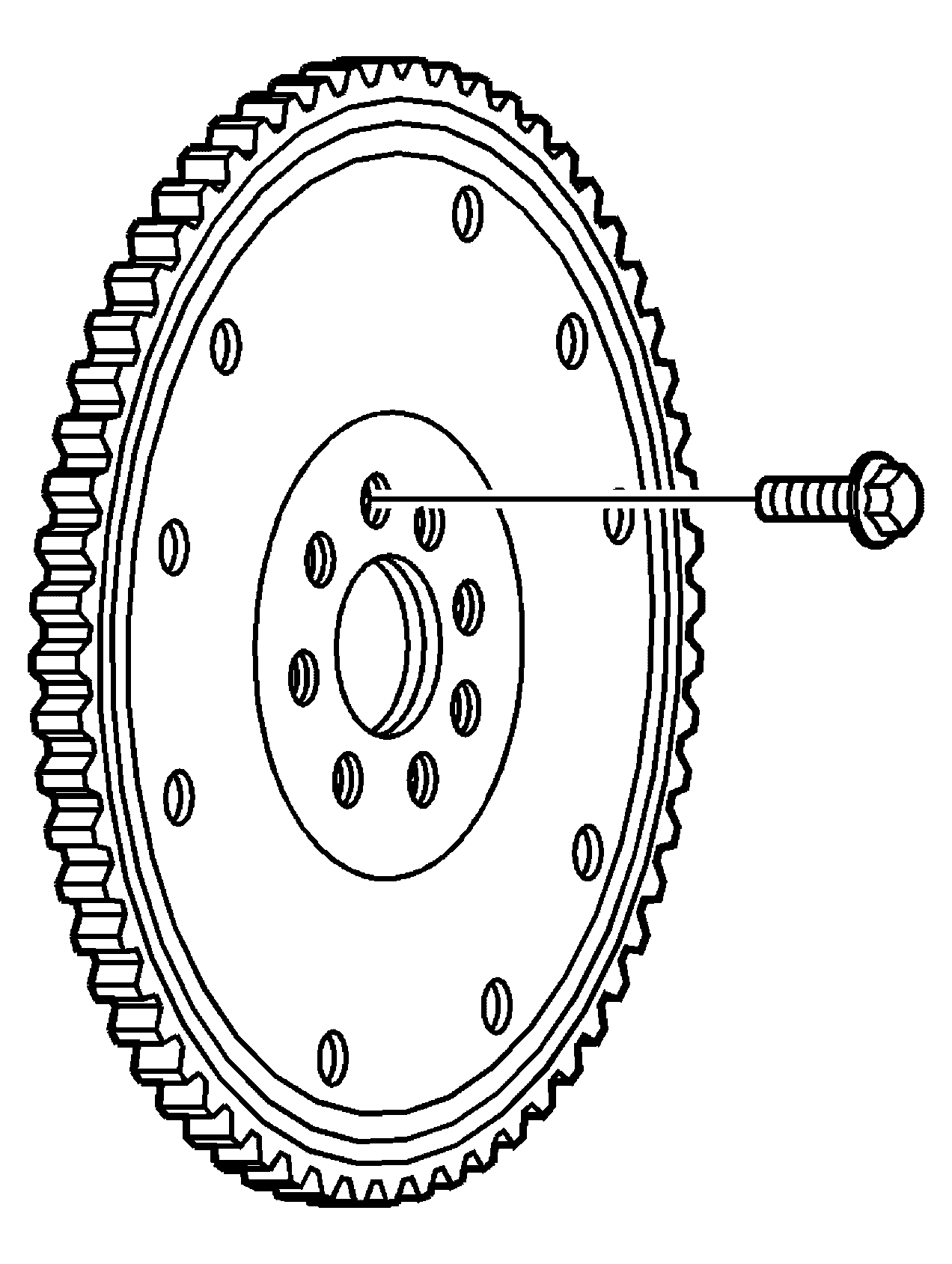

    Fig 1: Removing & Installing Flywheel Bolts
    GM825551Courtesy of GENERAL MOTORS CORP.
  1. Remove the flywheel bolts.

    Counterhold the crankshaft if necessary to remove the bolts.

  2. Discard the flywheel bolts.
  3. Remove the flywheel.
