Engine Block Disassemble (with K05)

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Removing & Installing Coolant Jacket Plugs
    GM797541Courtesy of GENERAL MOTORS CORP.
  1. Remove the coolant jacket plugs.

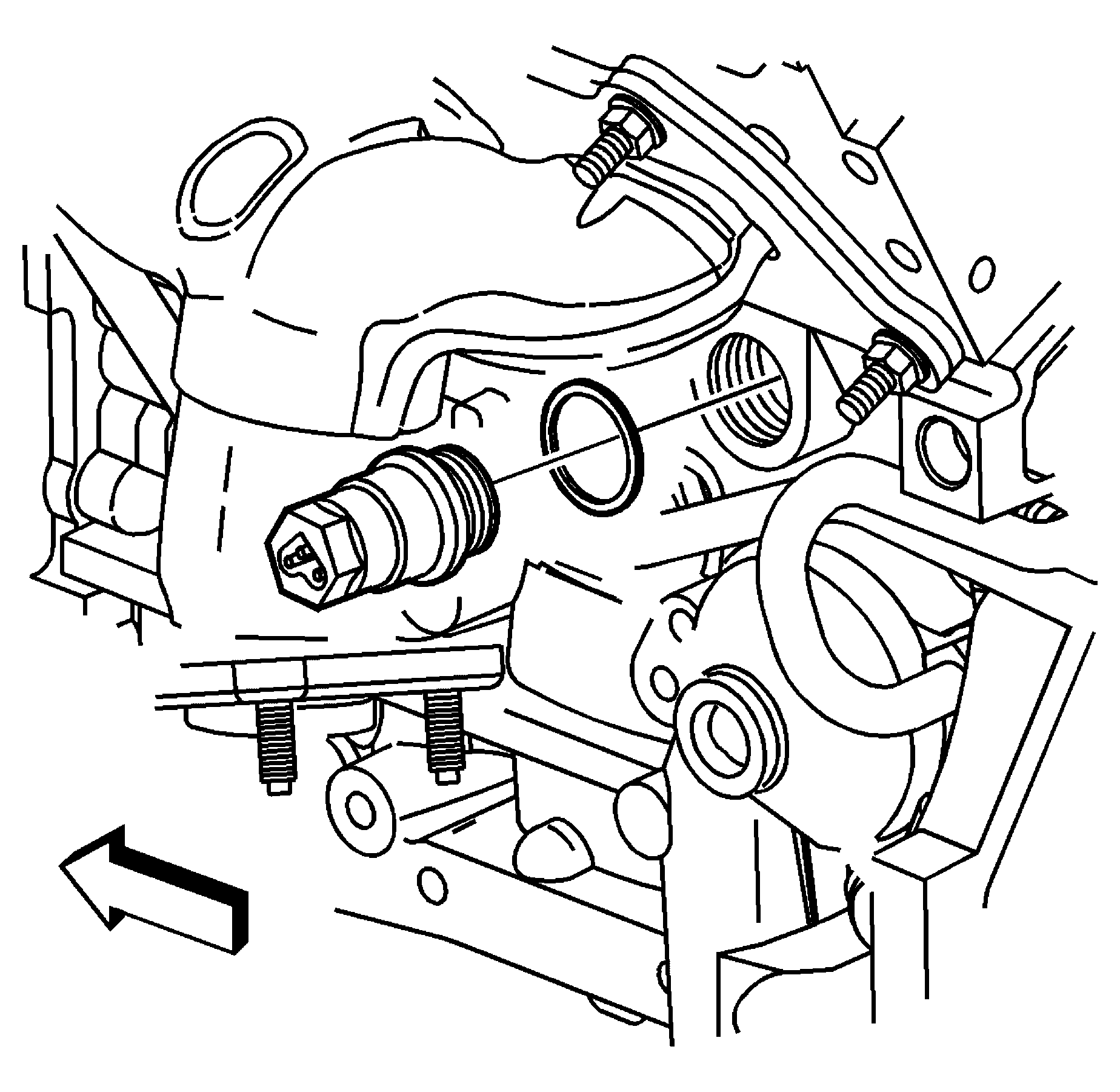

    2. Fig 2: Removing & Installing Block Heater
    GM797548Courtesy of GENERAL MOTORS CORP.
  2. Remove the block heater and discard the O-ring.
    3. Fig 3: Removing & Installing Blow-By Plate
    GM797547Courtesy of GENERAL MOTORS CORP.
  3. Remove the blow-by plate bolts.
  4. Remove the blow-by plate.
