Engine Block Assemble (with KA3)

WARNING: This page is about a different variant/trim than selected.
    Fig 1: Removing & Installing Blow-By Plate
    GM797547Courtesy of GENERAL MOTORS CORP.
  1. Install the blow-by plate.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the blow-by plate bolts.

    Tighten:  Tighten the blow-by plate bolts to 8 N.m (71 lb in).

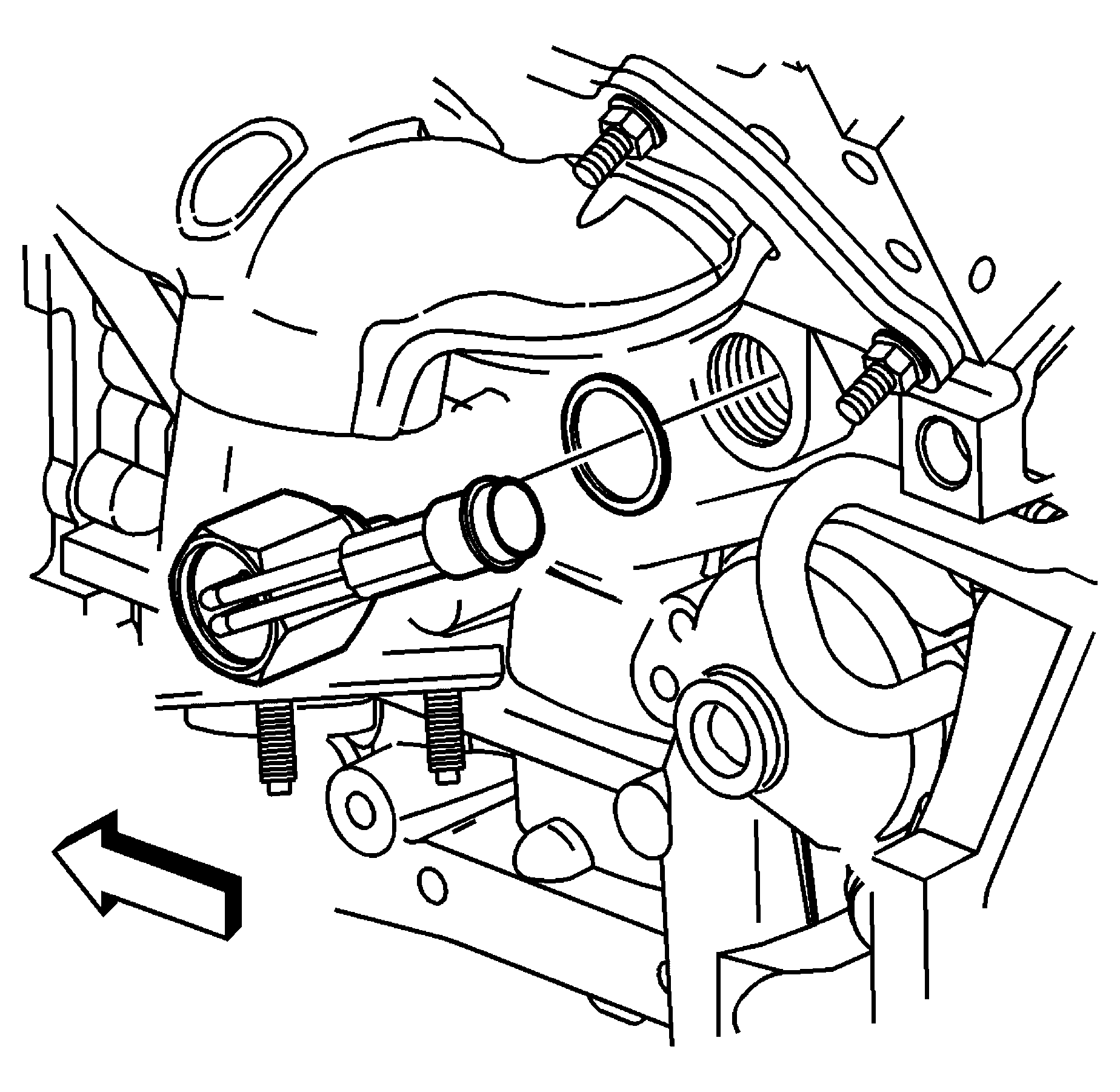

    3. Fig 2: Removing & Installing Block Heater
    GM797549Courtesy of GENERAL MOTORS CORP.
  3. Install the O-ring onto the block heater.
  4. Install the block heater.

    Tighten:  Tighten the block heater to 60 N.m (44 lb ft).

    5. Fig 3: Removing & Installing Coolant Jacket Plugs
    GM797541Courtesy of GENERAL MOTORS CORP.
  5. Apply thread sealant GM P/N 12346004 (Canadian P/N 10953480) to the threads of the coolant jacket plugs.
  6. Install the coolant jacket plugs.

    Tighten:  Tighten the coolant jacket plugs to 65 N.m (48 lb ft).
